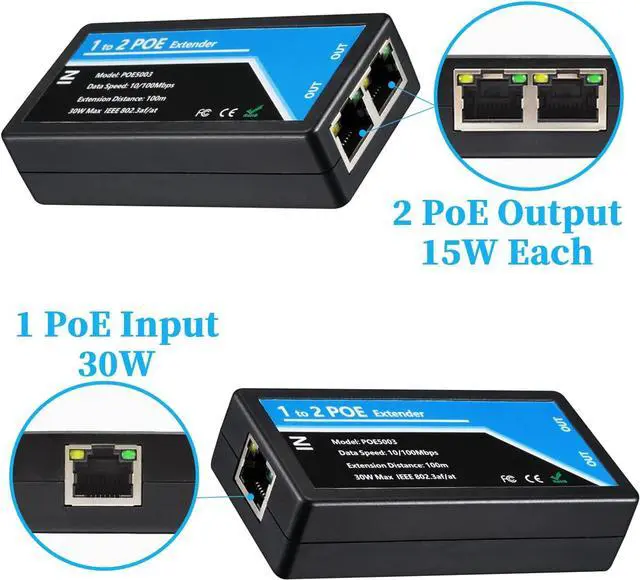

The PoE Extender features one 30W PoE input port and two 15W PoE output port, running one cable to connect to 2 POE IP devices.
It can forward both Ethernet and PoE power for 1 terminal equipment via Cat5, Cat5e, Cat6, Cat6e, UTP cable (less than 120m).

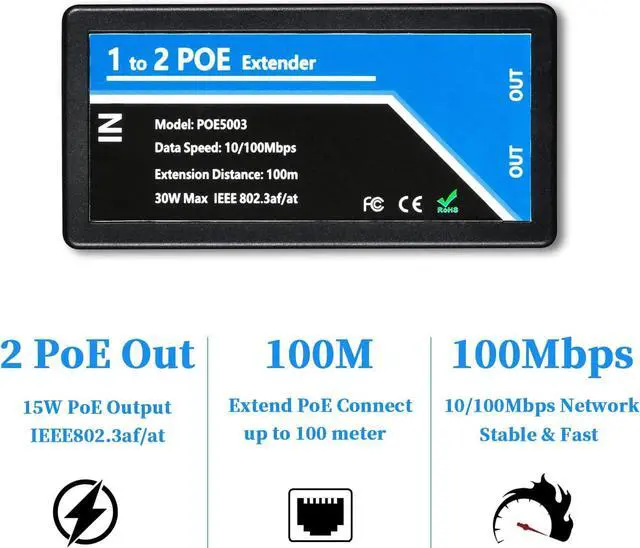

Supports 10, 100Mbps data rates, comply with IEEE 802.3 at and IEEE 802.3 af Standard. Provides 802.3 af power levels when powered by any 802.3 at source.

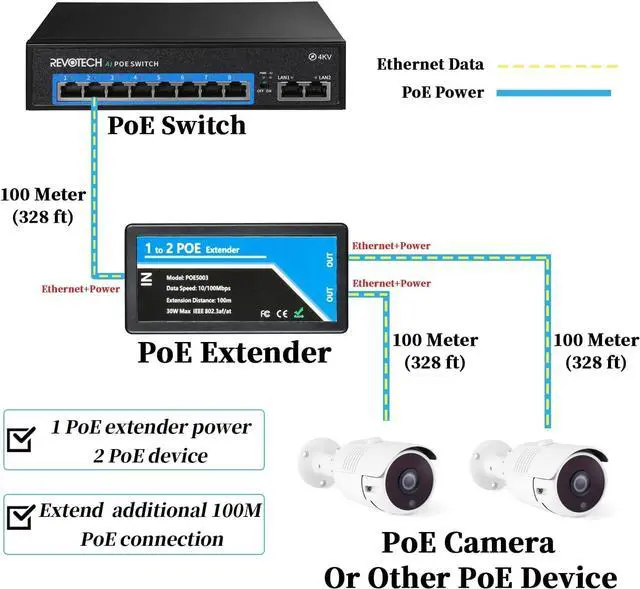

The POE extender can extend the range of the Ethernet network by an additional 100m (328 ft). Extended PoE installation range by additional 100M. The maximum is 6 pieces, 700 meters (2296ft) when deployed in cascade.

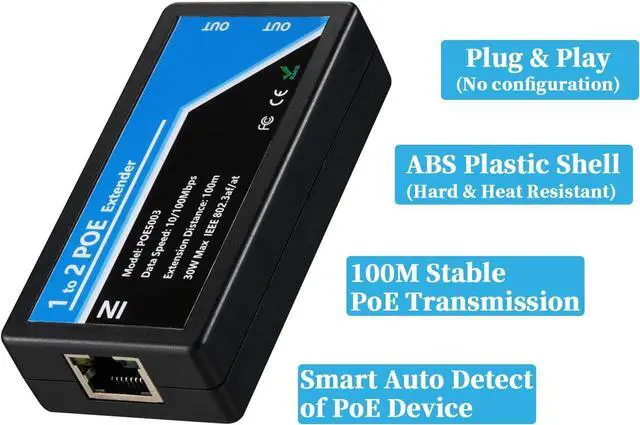

The PoE Extender cost effective installation - does not require local power and other configuration required. Powered via the PoE input, Plug and Play. Automatically detects and protects PoE equipments from being damaged by incorrect installation.
