VPFET HDMI Extender Splitter 1 in 2 Out Over Cat5e or 6 Ethernet Adapter Up to 165FT HD1080P60Hz with Loop Support EDID Copy Settings HDCP

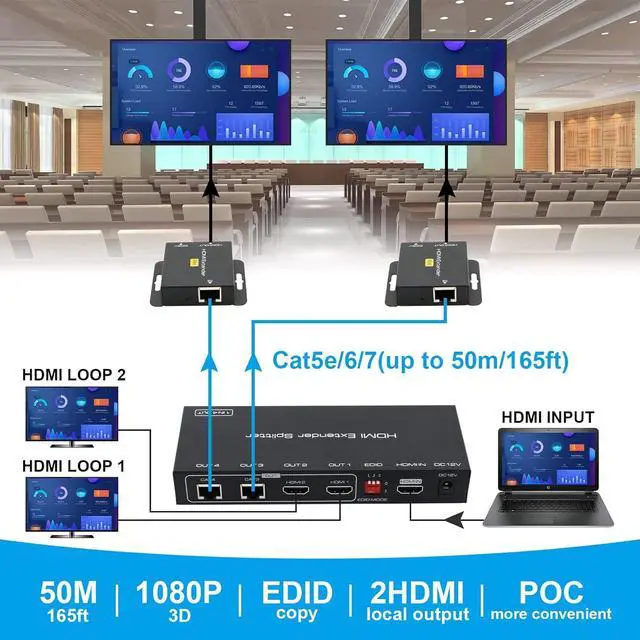

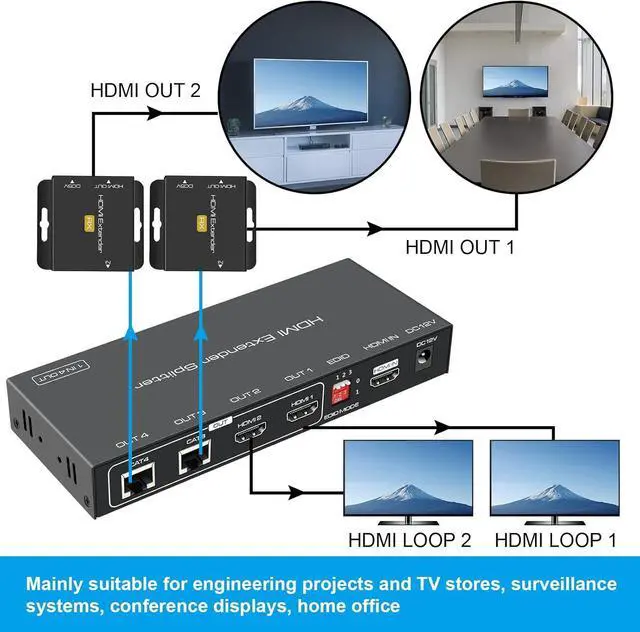

HDMI Extender splitter over CAT6The HDMI extender splitter can split One HDMI signal into two identical Signals and run up to 165ft through the CAT6 cable with two Loop-Out Local Display

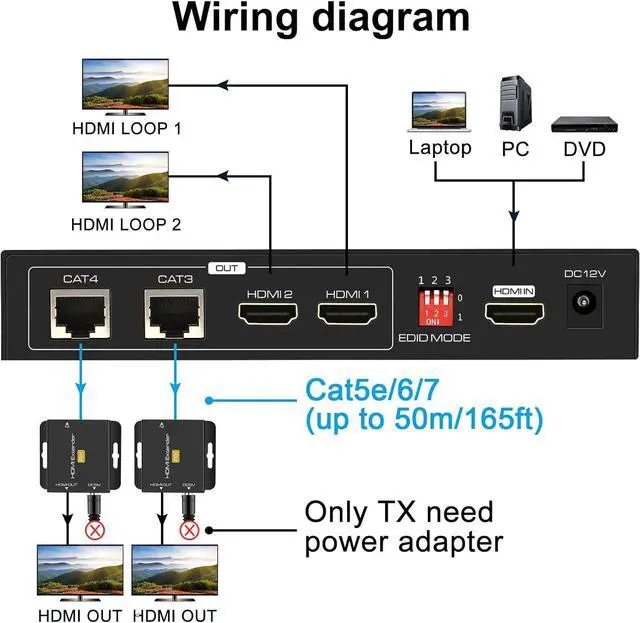

Power on CAT6HDMI extender 1 in 2 out Using POC technology, we only need to use the power supply at TX, and Rx can work through the network cable transmission power supply. Low to 5V voltage transmission, safe
and reliable. (Notes: 12V power must be connected to TX, otherwise the device will be damaged. )

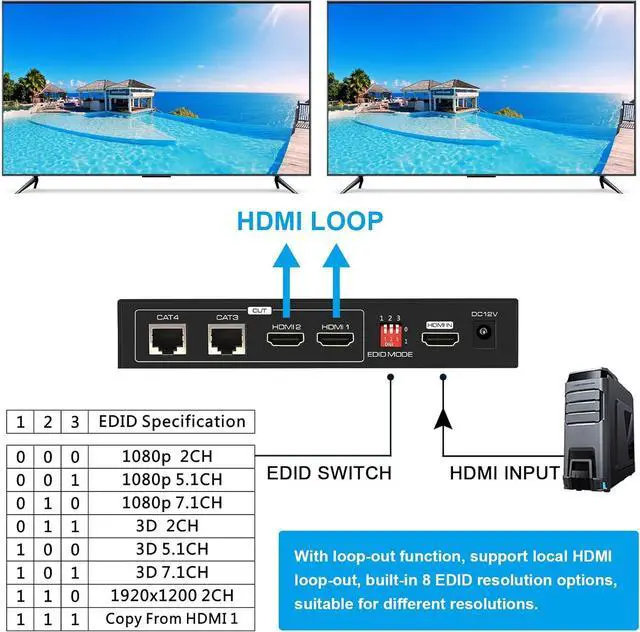

HDMI Extender Splitter Support EDID PresetAccording to different application requirements, the TX supports a variety of EDID preset programs to improve the compatibility of the equipment, which can better match the signal source and display to get the most suitable video and audio signal
No compression TransmissionHDMI extender splitter 1x2 support resolution up to 1920x1200@60Hz and 1080p@60Hz.
Support audio format: PCM/DTS/ DSD.
Suggested length: Cat6/7--165 ft, Cat5e--130 ft, Cat5--100 ft
HDMI Extender Splitter Has Auto EQ FuctionPlug & play setup without any software installation. Chip built-in automatic algorithm, no need to manually adjust the receiver equalization settings to compatibility with cable transmission distance. This unit requires only one power adapter to work
