PoE Switch, Gigabit Ethernet Switch, Ethernet Splitter 1 to 2, 2-Port Gigabit PoE Extender, Non-PoE to PoE Adapter, 1000Mbps High Speed for Cat 5e/6/7/8 Cable, Plug & Play

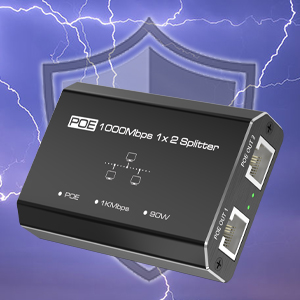

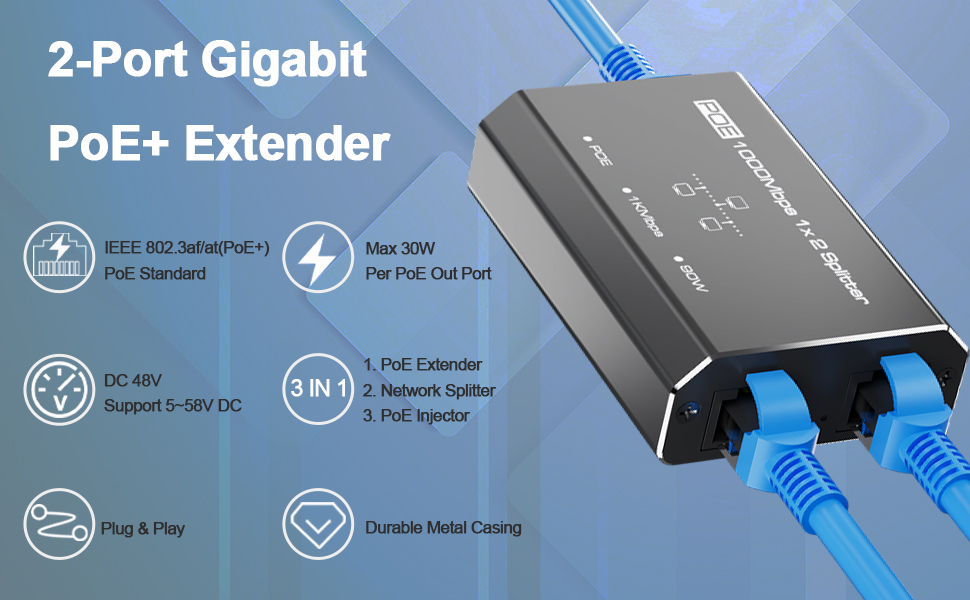

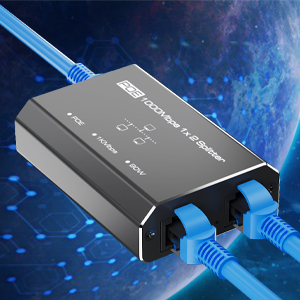

2-Port Gigabit PoE+ Extender

1. Comply with IEEE 802.af Power over Ethernet (10/100/1000Mbps Supported)

2. Extender the range of PoE an additional 100 meters

3. Automatically detects and protects PoE equipment from being damaged by incorrect installation

4. Plug-and Play no configuration required

5. 2 Port PoE extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 ,Cat5e,Cat6,Cat6e,UTP cable.

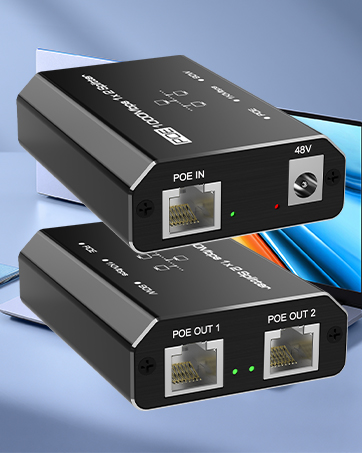

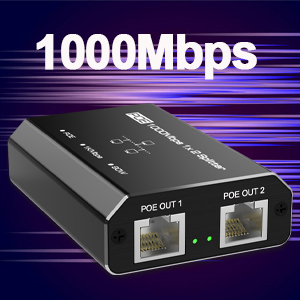

6. 2-Port PoE Extender has 3 10/100/1000Mbps Lan ports, among them, one for power input, the other two for power output. Comply with 10/100/1000 BASE-TX,IEEE 802.3 af-PoE.

7. Power input for one port is 48W. Power output for four port is 30W.

Perfect for use with Access Points, IP cameras, IP telephones, and other network devices where power outlets are scarce or distant. Ideal for installation in hotels, schools, office buildings, residential areas, and more.

2 POE+ Up to 60W Max 30 Watts Per Port

POE input: 1 RJ45 port (DC 5-58V, 802.3at)

POE output: 2 RJ45 port (48V, 802.3af)

POE Pin Output: 1/2(+), 3/6(-); MAX Power 30W

Network Medium: Cat5 or better UTP cables (less than 100m)

Input power: 60 Watts

Output power: 30 Watts

Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;

Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU, Low Voltage Directive 2014/35/EU,EMC Directive 2004/108/EC;

Working temperature: -10°c to 55°c

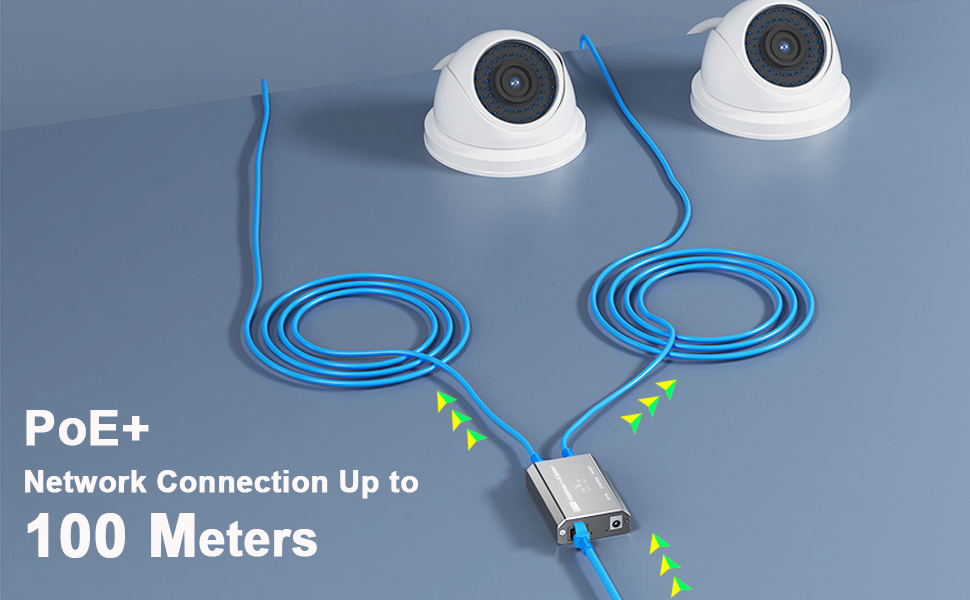

POE Extender additional 100 meter distance

PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 200m while complying with IEEE PoE and Data standards.

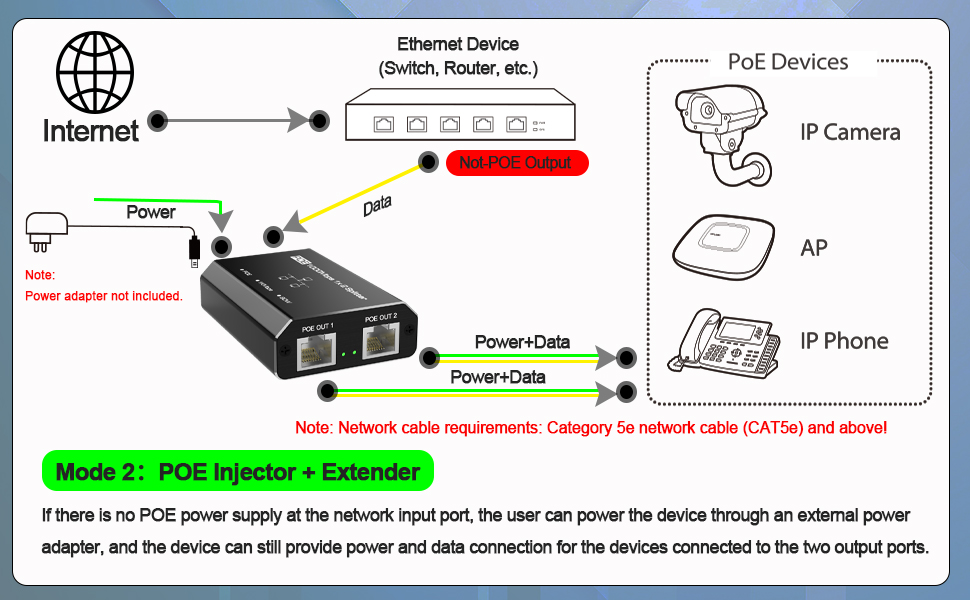

Note: Network cable requirements: Category 5e network cable (CAT5e) and above!

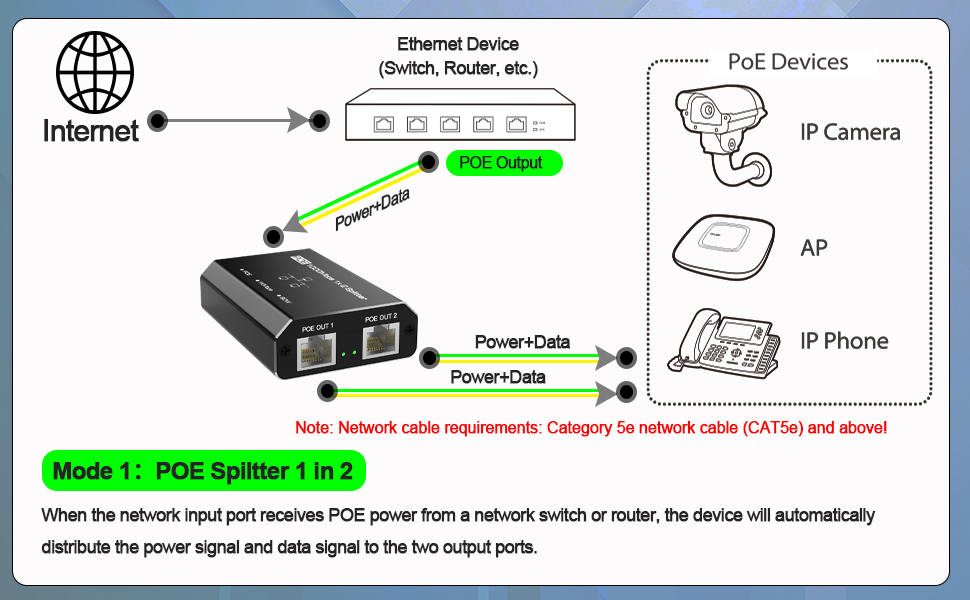

POE Output

Not-POE Output
