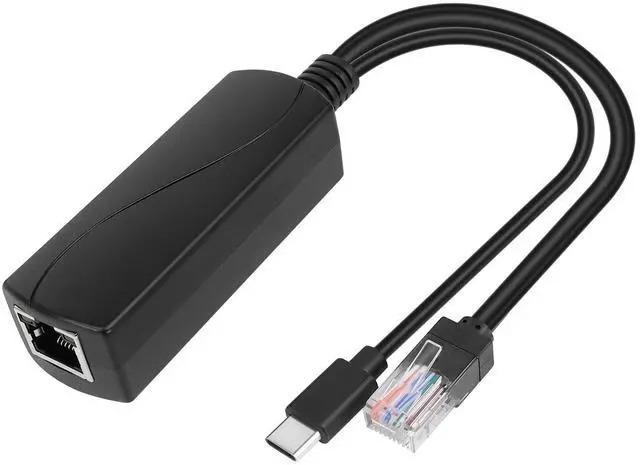

1pcs 5V 4A Gigabit Poe Splitter Type-C Power Over Ethernet Adapter,EEE 802.3af/at Compliant 10/100/1000mbps for Raspberry Pi 5,for Raspberry Pi 4,Power Supply Exchanger,IP Camera, Tablets, Dropcam etc
- PoE distributor parameters: power input 48V DC /0.6A, output 5V/4A, support standard IEEE802.3 af/at (30W), 1 input RJ45 port, 1 output RJ45 port, 1 DC output (TYPEC), TYPEC port is only used for power charging
- Transmission rate: support 10/100/1000M data transmission
- Perfect adaptation: 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-) power supply mode
- Protection function: isolation circuit protection, short circuit protection, overvoltage protection, effectively protect your equipment
- Working environment: Work within -40~70°, Storage within -40~85° Work within 10%~90% Non-condensing, Storage within 5%~95% Non-condensing, This ensures stable and reliable operation under a wide range of environmental conditions.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
TYPEC0504G PoE splitter,a new model: With RJ45 port and DC port with TYPEC. It is an economical and practical PoE remote power equipment base on IEEE802.3af /at standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af/at,Provides power and data at the same time for the terminal device does not support PoE. PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line
Features
Support international standard IEEE802.3 af/at(30W)
POE port Support 10/100/1000M data transmission
PD support 44V-57V voltage transmission,Automatically detects power supply from PSE power supply module
5V/4A power output using TYPEC ,the TYPEC port only for power-charging
Support the isolation circuit protection,can effectively protect electrical equipment Support the short circuit,overvoltage protection
1500V high voltage isolation

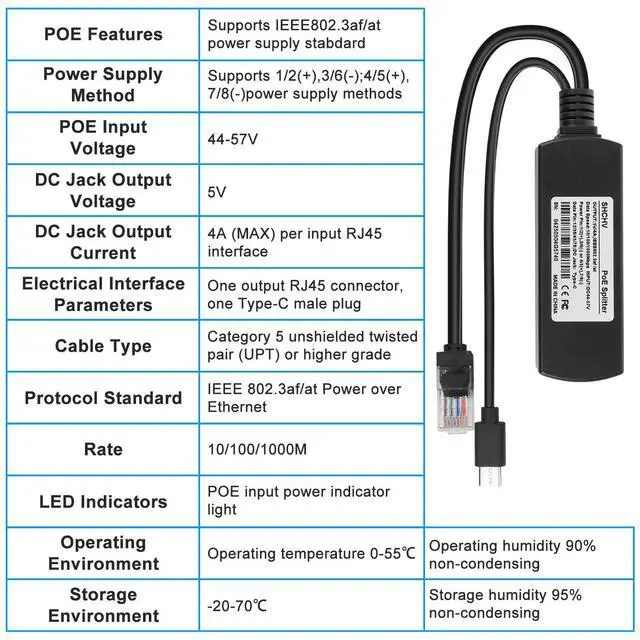

Technical Parameters
Model TYPEC0504G
Transfer Rate 10/100/1000M
Power Input 52V DC /0.6A, Output 5V/4A
Standard IEEE802.3 af/at (30W)
TRNF 1/2(+),3/6(-);4/5(+),7/8(-)

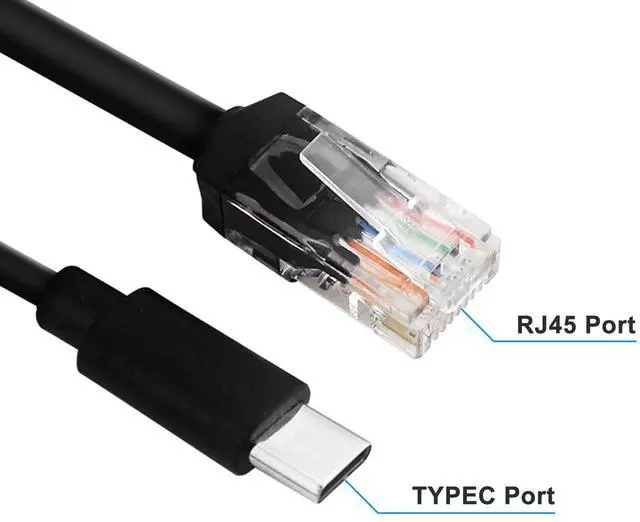

Interface Type1 Input RJ45 port, 1 output RJ45 port, 1 DC outputTYPEC
StandardIEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af/at

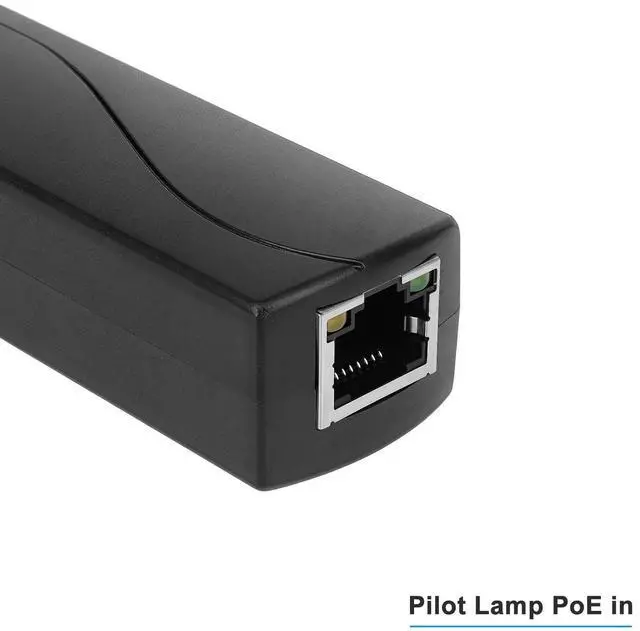

LEDYellow 5V lampGreen Class 4 lamp
EnvironmentWork within -40~70°, Storage within -40~85° Work within 10%~90% Non-condensing, Storage within 5%~95% Non-condensing

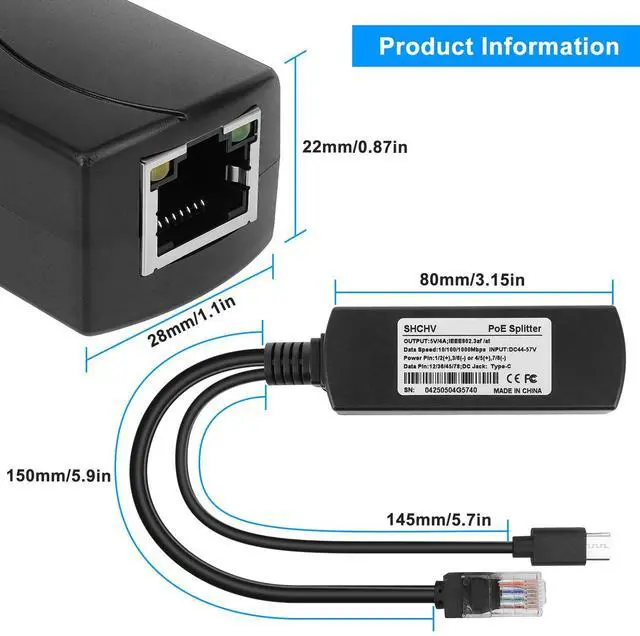

Dimension 80.3L * 28.3W *23.2H
Weight 0.05kg
Product information
| Brand | Ransanx |
| Hardware Interface | USB Type C |
| Color | 1PCS 5V 4A |
| Compatible Devices | for Raspberry Pi 5, for Raspberry Pi 4,Power Supply Exchanger,IP Camera, Tablets, Dropcam etc |
| Data Link Protocol | IEEE 802.3af/at |
| Data Transfer Rate | 1000 Megabits Per Second |
| Manufacturer | Ransanx |
| Package Dimensions | 6.89 x 4.72 x 0.79 inches |
| Item Weight | 1.87 ounces |
| Date First Available | May 9, 2025 |
