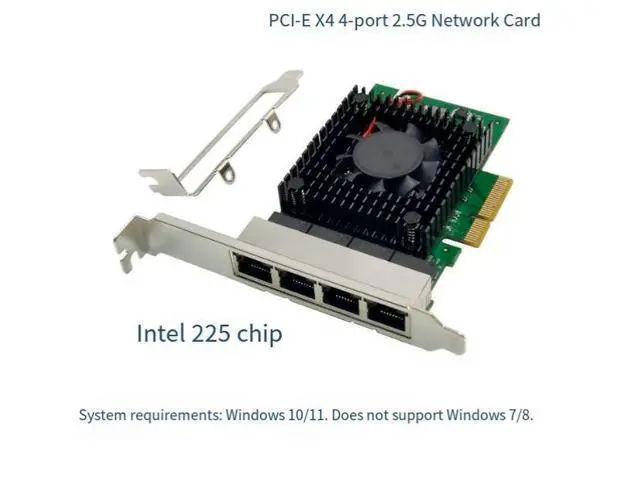

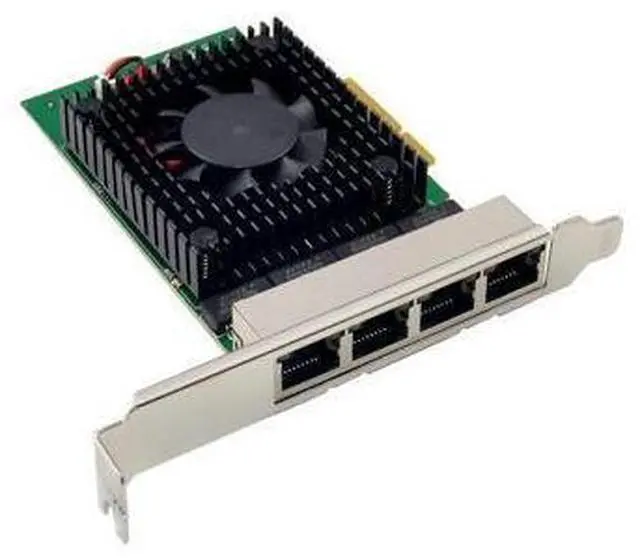

I225 Chip PCI-E X4 2.5G Quad Port Server Network Card, 2500M 4-Port Gigabit Ethernet Adapter, for Industrial Camera
- Product Function; GE-E013-I225-4S is a 2.5Gbps Ethernet PCI Express 4-port Gigabit network card, featuring a brand-new original Intel I225.2500M network card chip. It boasts low power consumption, low latency, more stable transmission, and is less prone to data packet loss and distortion. It supports high-performance dual-channel networking and full-duplex communication, achieving a maximum transmission rate of up to 2500Mbps. It is also compatible with existing Ethernet networks and is specifically designed for insertion into desktops and servers equipped with available PCI Express x4, x8, or x16 slots. It is dedicated to providing an upgrade solution for gamers who do not need a 10G network but require a Gigabit network and cannot meet the needs of their current Ethernet network.; The PCI-E to 2.5G network adapter uses the brand-new Intel i225 2.5G network card chip, which has low power consumption, low latency, and more stable transmission, and is less prone to data packet loss and distortion.; The 2500M Gigabit network card of GE-E013-I225-4S currently supports Windows 10, Windows 11, and esxi7.0 operating systems. It does not support Windows 8 and Windows 7 versions.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
General
Flow control support: sending/receiving PAUSE frames and receiving FIFO Supports PXE Supports network wake-up, with only the first port (upper left corner) supporting network wake-up (Wake-On-LAN) Interrupt regulation, VLAN ( 802.1Q and 802.1P ), TCP/IP checksum offloading, segment offloading
Time-sensitive networking (TSN): IEEE 1588/802. AS Rev, 802.1Q av, 802.1Q bv Supports interrupt regulation, VLAN ( 802.1Q & 802.1P ), TCP/IP checksum offloading, segment offloading Supports IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 az, IEEE 802.3 bz Supports IEEE 802.3 az (energy-saving Ethernet) Supports IEEE 802.3 bz ( 2.5GBASE -T) Supports full-duplex flow control (IEEE 802.3 x) Supports 9.5 KB jumbo frame size without
TSN Operating temperature: 0°C to 55°C
Storage temperature: -55°C to 125°C
Storage humidity: 90% at 35°C
System requirements: Windows 10/Windows 11; Windows Server 2019 or later versions Ubuntu 19.04 or higher version with support for PCI Express slots and PCI-Express compatible systems. Linux Stable Kernel 4.20 /5. x or later version 10QTS 4.4. 2 or later version (it is...
Specifications
Supports PCI Express 2.0 version Supports 2.5G and 1G Lite modes Supports PCI Express x4, x8 or x16 slots Supports integrated MAC/PHY for 802.3 specifications such as 10BASE-Te, 100BASE-TX, 1000BASE-T and 2500BASE-T IEEE 802.3 u auto negotiation consistency Half-duplex operation for 10BASE-Te and 100BASE-TX Automatic polarity correction Error correction memory (ECC) in data packet bufferFlow control support: sending/receiving PAUSE frames and receiving FIFO Supports PXE Supports network wake-up, with only the first port (upper left corner) supporting network wake-up (Wake-On-LAN) Interrupt regulation, VLAN ( 802.1Q and 802.1P ), TCP/IP checksum offloading, segment offloading
Time-sensitive networking (TSN): IEEE 1588/802. AS Rev, 802.1Q av, 802.1Q bv Supports interrupt regulation, VLAN ( 802.1Q & 802.1P ), TCP/IP checksum offloading, segment offloading Supports IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 az, IEEE 802.3 bz Supports IEEE 802.3 az (energy-saving Ethernet) Supports IEEE 802.3 bz ( 2.5GBASE -T) Supports full-duplex flow control (IEEE 802.3 x) Supports 9.5 KB jumbo frame size without
TSN Operating temperature: 0°C to 55°C
Storage temperature: -55°C to 125°C
Storage humidity: 90% at 35°C
System requirements: Windows 10/Windows 11; Windows Server 2019 or later versions Ubuntu 19.04 or higher version with support for PCI Express slots and PCI-Express compatible systems. Linux Stable Kernel 4.20 /5. x or later version 10QTS 4.4. 2 or later version (it is...
