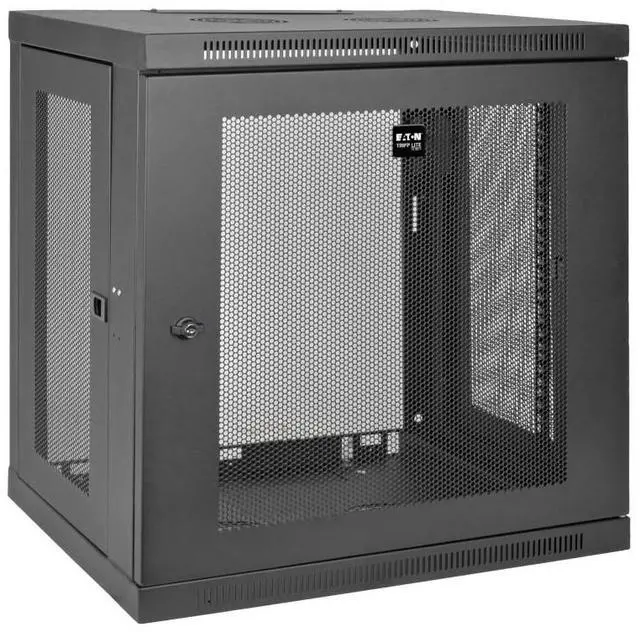

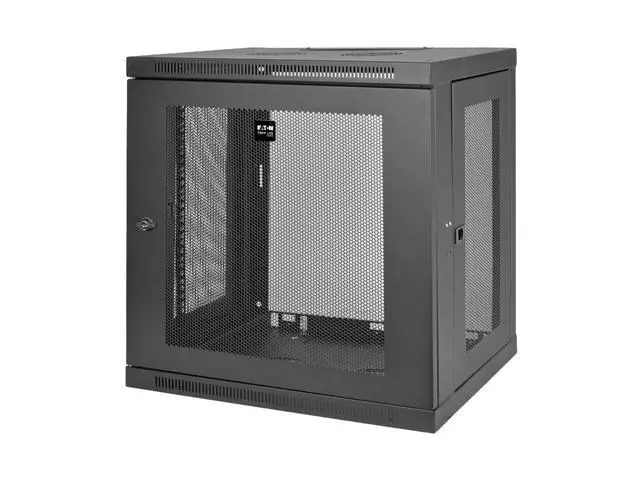

Eaton Tripp Lite Series SmartRack 12U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure - Black

The SRW12U SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds. The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool.

The reversible front door can open left or right by rotating the cabinet 180 before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12U comes fully assembled and ready to mount to the wall, or use Tripp Lites optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.


Maximum load capacity of 200 lb.

Locking steel cabinet vented at sides, front, top and bottom

Flow-through ventilation keeps equipment cool

Secures 12U of 19 in. rack equipment up to 16.5 in. deep

Mounts to wall or rolls on floor (with optional SRCASTER)






Miscellaneous





Additional Information




EIA-310-E Certification

Front and Back door frames

Adjustable mounting depths up to 17 inches

Ventilated front door and side panels for increased airflow

Fully assembled for quick installation

PCI-Compliant: meets stringent physical security requirements

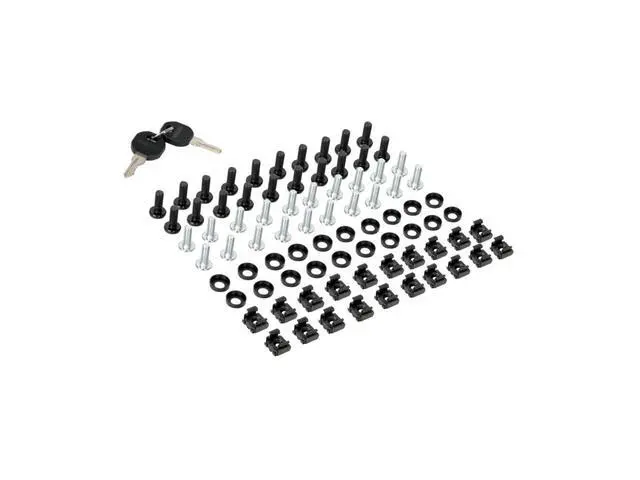

Package Contents




SmartRack 12U Wall-Mount Rack Enclosure Cabinet

20 x M6 Screws

20 x M6 Cage Nuts

20 x M6 Washers

2 x Keys

Owners Manual






Country of Origin



China





Environmentally Friendly



Yes





Environmental Compliance



Restriction of Hazardous Substances (RoHS)





General Information





Product Type



Rack Cabinet





Manufacturer Part Number



SRW12U





Manufacturer Website Address



https: //tripplite. eaton. com/





Manufacturer



Tripp Lite by Eaton





Product Model



SRW12U





Product Name



SmartRack 12U Wall-Mount Rack Enclosure Cabinet





Product Line



SmartRack





Brand Name



Tripp Lite by Eaton





Physical Characteristics





Weight (Approximate)



48.50 lb





Rack Width



19





Rack Height



12U





Height



25.1





Width



23.6





Depth



17.7





Maximum Weight Capacity



200 lb





Product Color



Black





Color Family



Black
