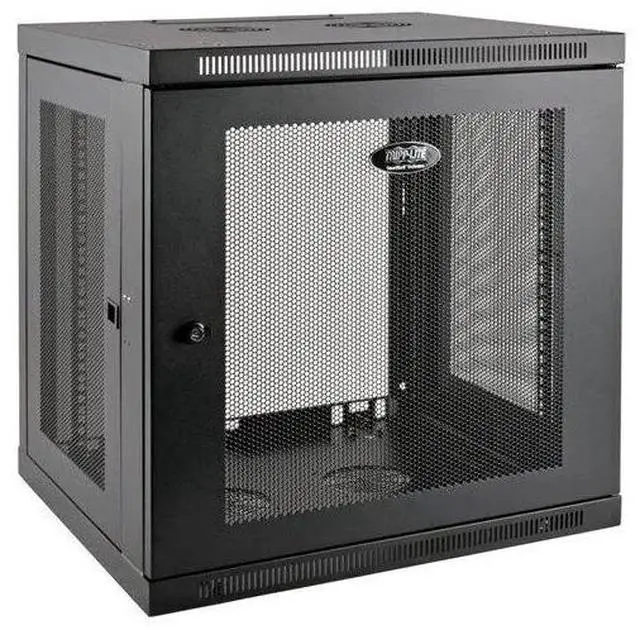

Tripp Lite 12U WALL MOUNT RACK ENCLOSURE SERVER CABINET DEEP LOW PROFILE

Tripp Lite by Eaton SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Small Rack Enclosure - For LAN Switch, Patch Panel - 12U Rack Height x 19 Rack Width x 20.50 Rack Depth - Wall Mountable - Black - Steel - 200 lb Maximum Weight Capacity - 200 lb Static/Stationary Weight Capacity

The SRW12UDP SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.

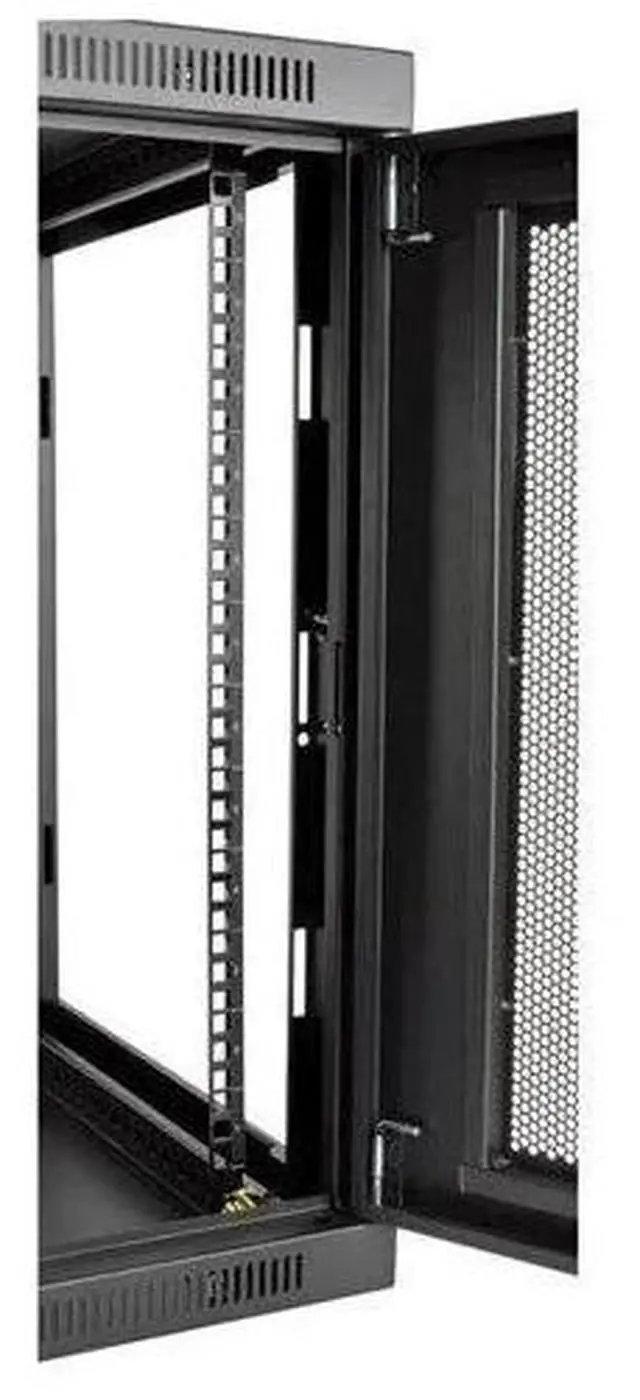

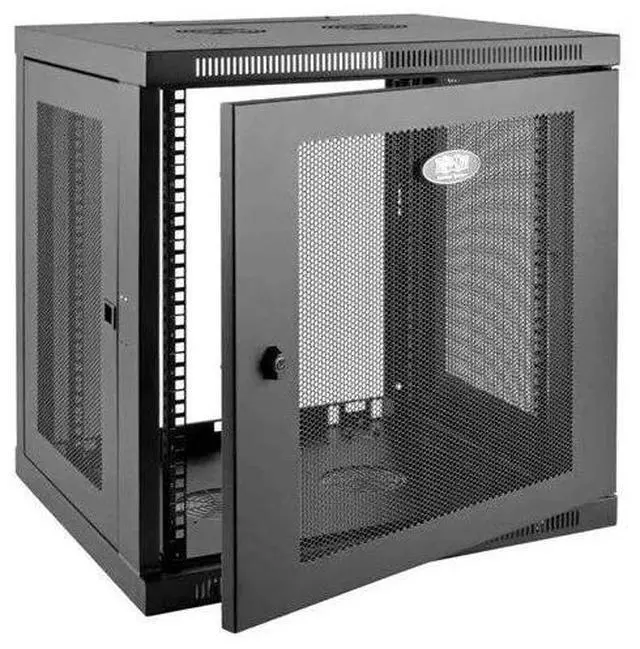

To ensure your valuable equipment stays secure, the side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet toand keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

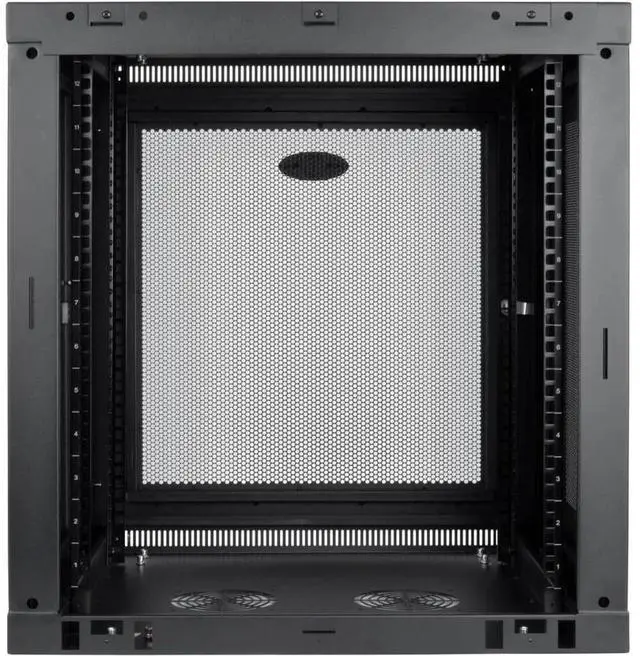

The SRW12UDP comes fully assembled and ready to mount to the wall, or use Tripp Lites optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as such as network switches and patch panels.

Features


Maximum load capacity of 200 lb.

Locking steel cabinet vented at sides, front, top and bottom

Flow-through ventilation keeps equipment cool

Secures 12U of 19 in. rack equipment up to 20.5 in. deep

Mounts to wall or rolls on floor (with optional SRCASTER)










Technical Information





Application/Usage



Patch Panel







LAN Switch





Features



Cable Management





Miscellaneous

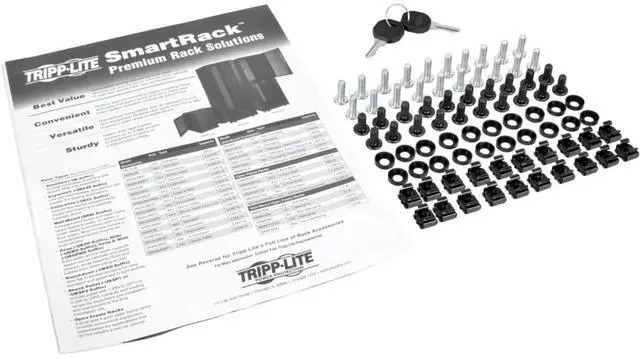

Package Contents




SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet

20 x M6 Screws

20 x M6 Cage Nuts

20 x M6 Washers

20 x 12-24 Screws

2 x Keys

Owners Manual






Country of Origin



China





Assembly Required



No





Environmentally Friendly



Yes





General Information





Product Type



Rack Cabinet





Manufacturer Part Number



SRW12UDP





Manufacturer Website Address



https: //tripplite. eaton. com/





Manufacturer



Tripp Lite by Eaton





Product Model



SRW12UDP





Product Name



SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet





Product Line



SmartRack





Brand Name



Tripp Lite by Eaton











Physical Characteristics





Weight (Approximate)



58.40 lb





Form Factor



Wall Mountable





Rack Width



19





Rack Height



12U





Height



25.1





Width



23.6





Depth



21.8





Maximum Weight Capacity



200 lb





Static/Stationary Weight Capacity



200 lb





Rack Depth



20.50





Product Color



Black





Color Family



Black





Product Material



Steel
