2x2 HDMI Video Wall Controller, 4Kx2K HD Seamless Splicing Professional Processor with HDMI+DVI+RS232 Input, 4 Way HDMI & SPDIF Output 180 Degree Rotate TV Wall Display 2x2, 1x2,1x3,1x4,2x1,3x1,4x1

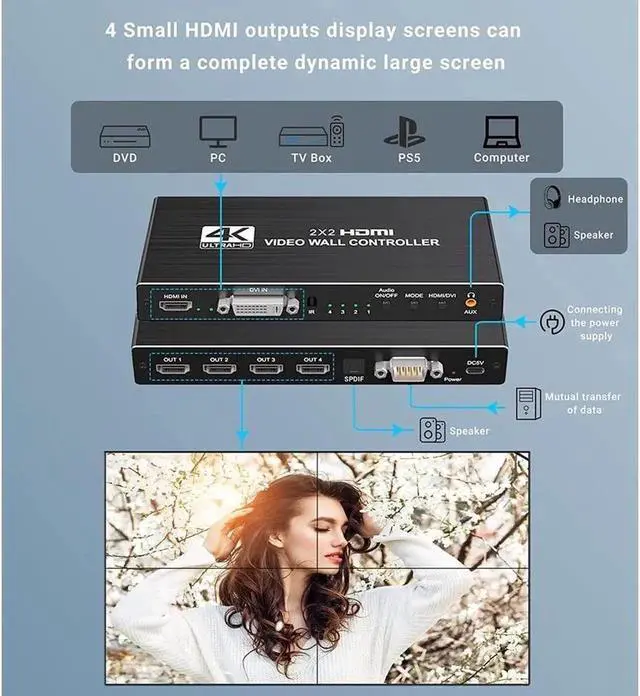

- Input & Output Support: Supports HDMI/DVI/RS232 input. You can also play and stitch various videos, pictures, mp3, and documents through the USB interface, support video pause, fast forward, loop playback, program list and other functions, and support the playback of rolling subtitles.

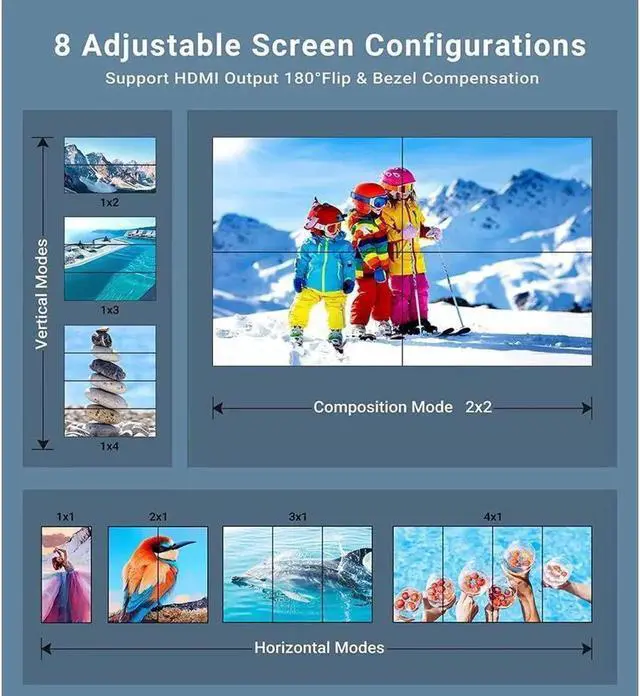

- Multi-splicing Modes: Our video processor can output from 4 channels, support multiple modes display 2x2, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1. Suitable for LCD TV, projector, DLP, plasma display, etc.
- HD Display: The video wall display has the AUDIO own audio decoding and separation output port, which can be connected to audio, Input devices can support up to 4k, but output devices up to 1080P, restore the original appearance of the image, and present a natural and complete picture, no details are missed, and the colors are real and clearly visible.

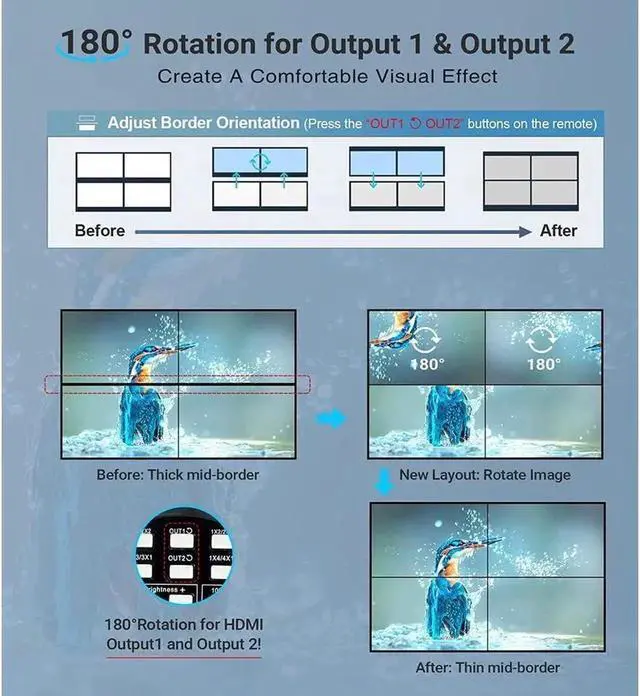

- 180 Degree Flip: In 2x2 mode, the TV wall processor also has the function of 180 degree mirror flip per screen, which greatly reduces the LCD splicing gap.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

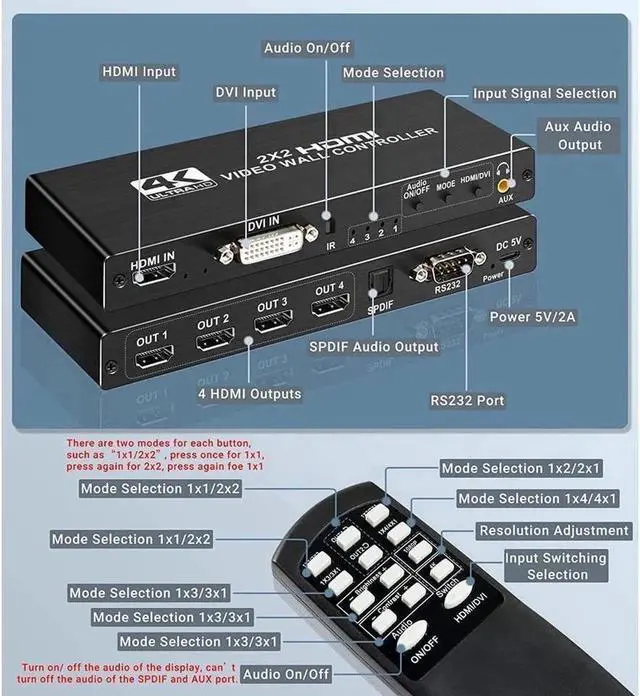

8 splicing modes, just a click to switch via IR Remote Controller or panel button "MODE", so easy!
- Supports one DVI input or HDMI input;
- Input supports HDMI1.4 and HDCP1.4;
- Input format: RGB/YUV24bit;
- Output format: RGB 4:4:4 24bit;
- Support 2x2 stitching, easy operation, plug and play;
- Input supports 1920x1080P 25/30/50/60Hz and 3840x2160P 24/30Hz;
- Supports four HDMI outputs and one 3.5mm stereo output;
- Supports 5.1CH audio output over optical fibers;
- Output supports 1920x1080P 60Hz;
- Supports RS232;
- Supports remote control;
- DC5V / 2A power supply;
