60M HDMI-compatible Extender Cat5e Cat 6 Ethernet IP TCP signal HD to Lan Converter 1080p 4D Transmitter Receiver TX RXLength: 80 m(usb cable) Color: White (dual power)

Feature:

1. Support HDMI-compatible 1.4
. 2. Compatible HDCP 1.2 protocol.

3. The network line conforms to the IEEE-568B standard.

4. Support 3D.

5.
Support video input: /1080p/1080i/720p/576p/576i/480p/480i @24/50/60fps.

6.

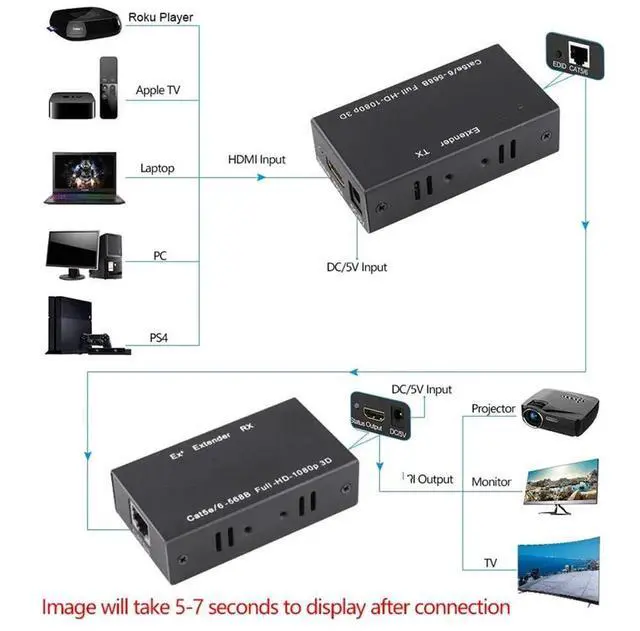

Signal transmission: a CAT5 or CAT6 cable (recommended) instead of the HDMI cable, the longest cable between the receiver and the transmitter can reach 50 meters.

7.
Supporting video output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i.

8.
Support audio format: support for uncompressed audio dual channel audio transmission, such as LPCM.

9. No signal loss.

10. Simple installation.
Specification:
Transmission distance: the farthest 50 meters
Input audio format support: DTS-HD/Dolby-trueHD/LPCM 7.1 /DTS/Dolby-AC3/DSD
Maximum transmission bandwidth: 6.75G bps
Input video signal: 0.5 ~ 1.5V olts P-P
Output DDC signal: 5Volts P-P (TTL)
HDMI-compatible input and output line length: 10m AWG26 HDMI-compatible wire rod
Maximum working current: 400mA
Power adapter specifications:
Input: AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/1 A
Working temperature range: -15 to +70
Working humidity range: 5 to 90%RH (non condensing)
Warm Tips:

1. In order to achieve better image transmission quality, please select CAT-6 cable.

2. Low quality Internet cable can not achieve the best video transmission effect and transmission distance.

3. If the distance of product transmission can not reach 50 meters, please check the quality of the cable first.
Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
Packages:

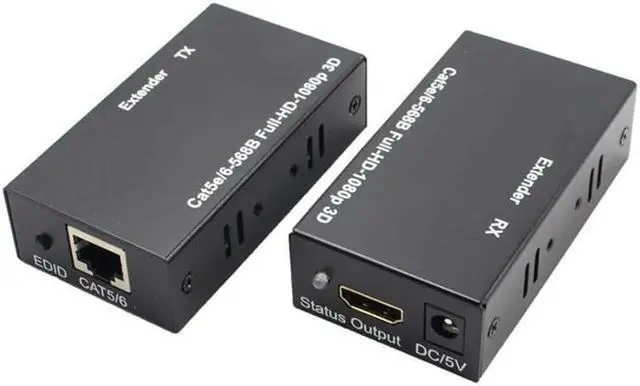

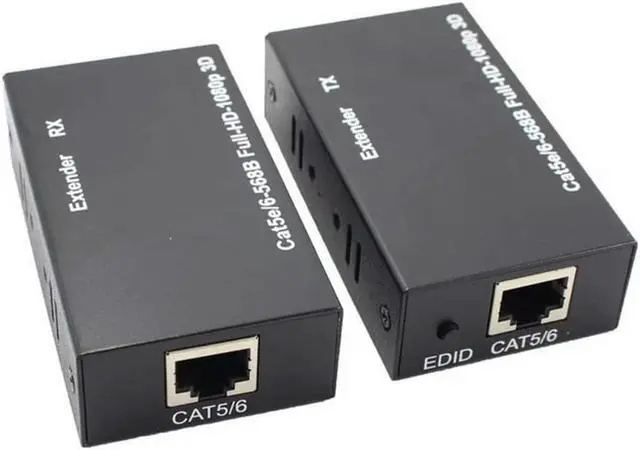

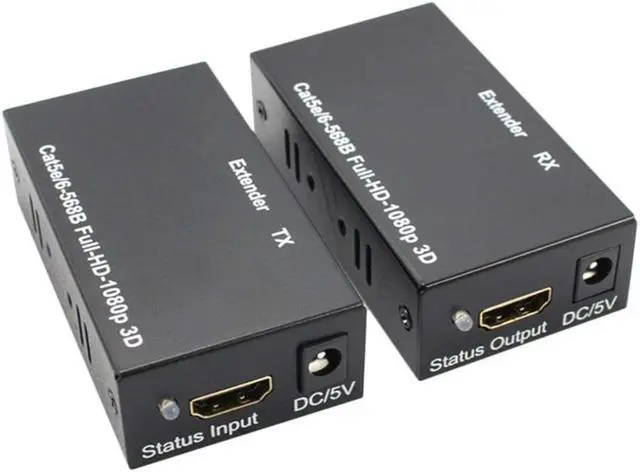

1 x Extender Transmitter
1 x Extender Receiver
1 x Power Adapters
2 x User Manual
