ARC DAC Converter Adapter HDMI-compatible Audio Return Channel Digital Optical SPDIF Coaxial to Analog 3.5mm L/R Stereo

Overview:
TheHDMI-compatible audio return and digital-to-analog audio converter can output the TV's sound to the optical fiber coaxial 3.5 mm coaxial headphone jack (can output sound at the same time) through the HDMI-compatible ARC interface. It also supports conversion of digital audio fiber or coaxial signals to analog stereo signals.
Features:

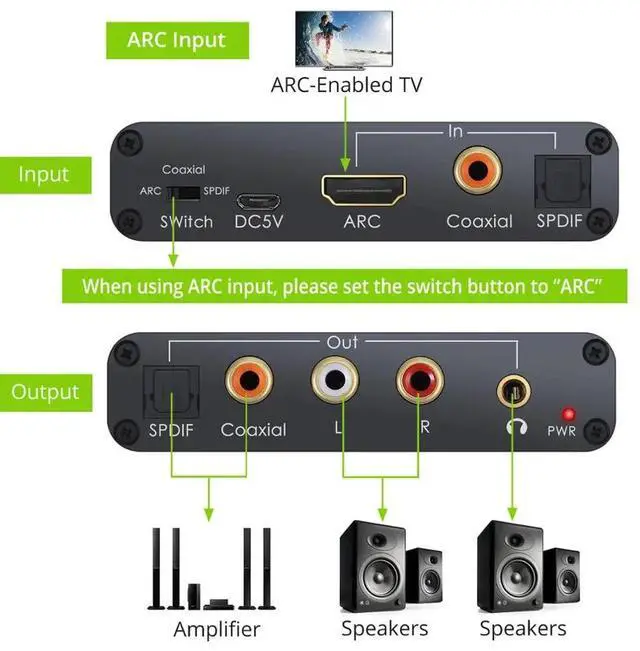

1. HDMI-compatible ARC, You need to use a standard HDMI-compatible cable to output the TV's sound to the optical fiber, coaxial, R/ L, 3.5 mm headphone jack through the HDMI-compatible ARC interface (can output sound at the same time)

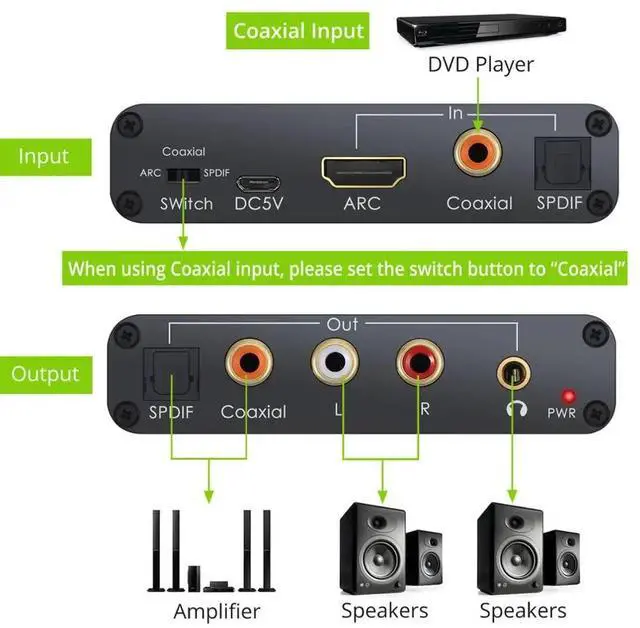

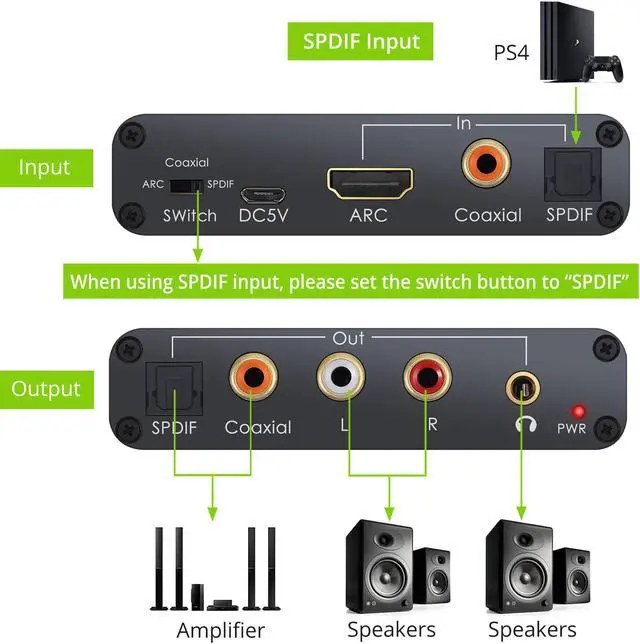

2. Digital to Analog Audio Converter, You can also use digital audio coaxial and optical ports as signal source input to convert to analog audio R / L, 3.5 mm output.

3. Support Remote Volume Control. When using the TV's ARC function, you can use the TV's remote control to control the volume. (Only supports RCA (left / right) and 3.5 mm output interface, please turn on the CEC function of the TV)

Specifications

:
Material: Aluminum Alloy
Power Supply Interface: Micro USB
Maximum operating current: 100mA
Working environment temperature: -10~+55
Storage temperature: -20~+60
Operating Humidity: 10~90%RH(non-condensing)
Storage humidity: 5~95%RH (non-condensing)
Case size: 90*73*21 (mm)
Weight: 92g
Please Note:

1. Make sure that the TV has an HDMI-compatible "ARC" interface, and only supports TVs with HDMI-compatible ARC function.

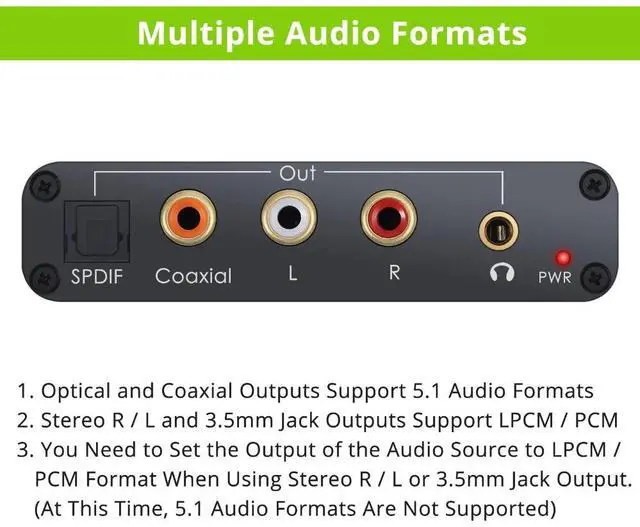

2. Please set the audio output to PCM or LPCM before using HDMI-compatible ARC. (When the output audio is 3.5 mm AUX stereo or L / R RCA, you need to set the output of the audio source to LPCM / PCM format. )

3. Please turn on the CEC function of the TV so that you can control the volume. (Only supports RCAL / R and 3.5 mm output interfaces. )

4. Please use standard 19 + 1 HDMI-compatible cable to support ARC function

5. Connect different audio interface inputs, please select the corresponding input switch.
Package:
1 x ARC Audio Extractor
1 x Micro USB Power Cable
1 x User Manual
