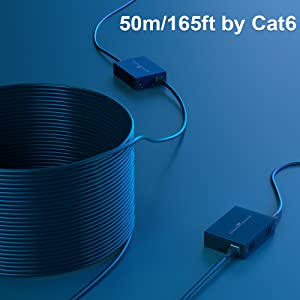

50m/164ft

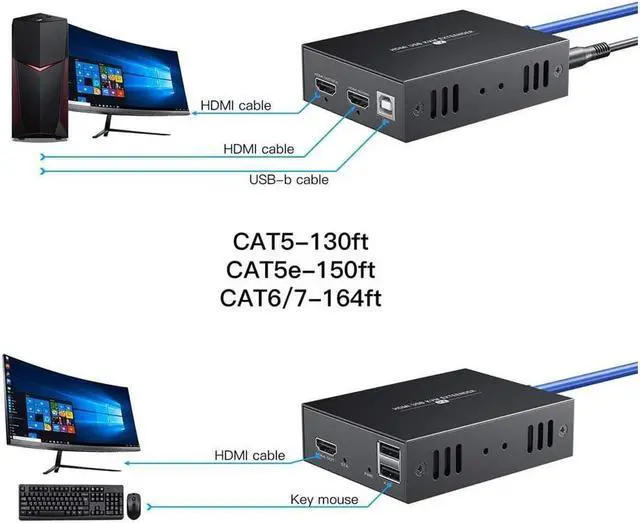

Transmit audio/video signal up to 50 meters by network cable Cat6/7, and 40m by Cat5e

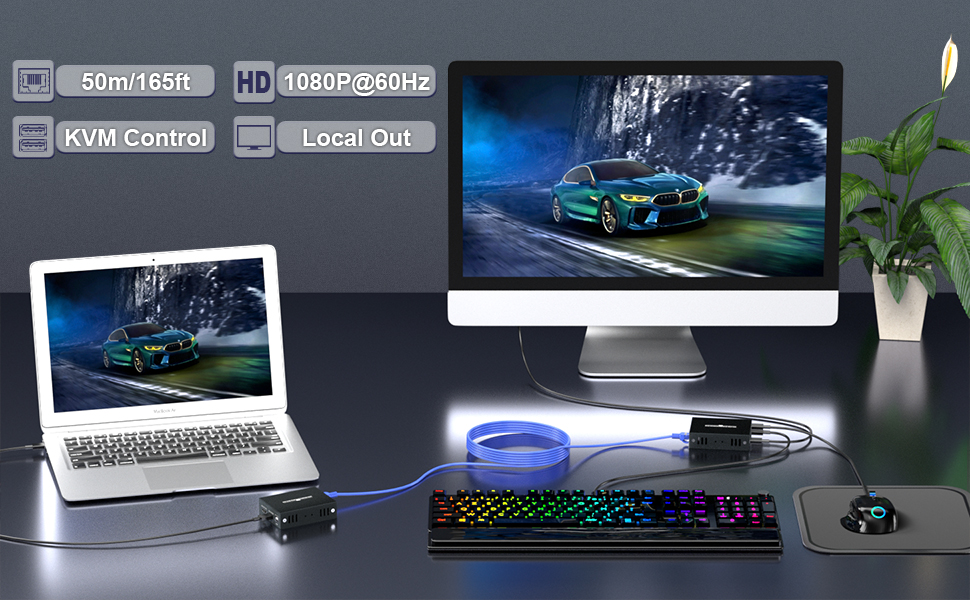

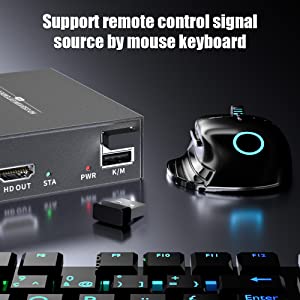

KVM/USB
Support remote control signal source using mouse and keyboard.

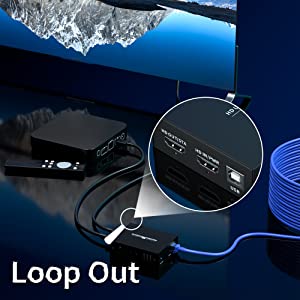

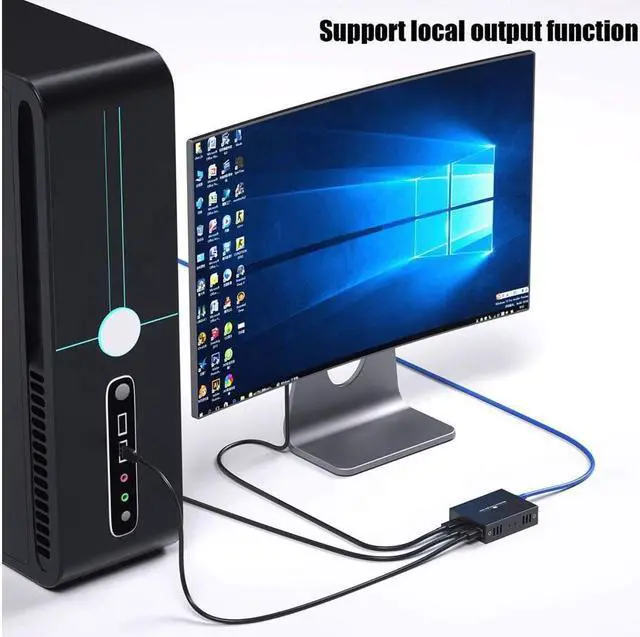

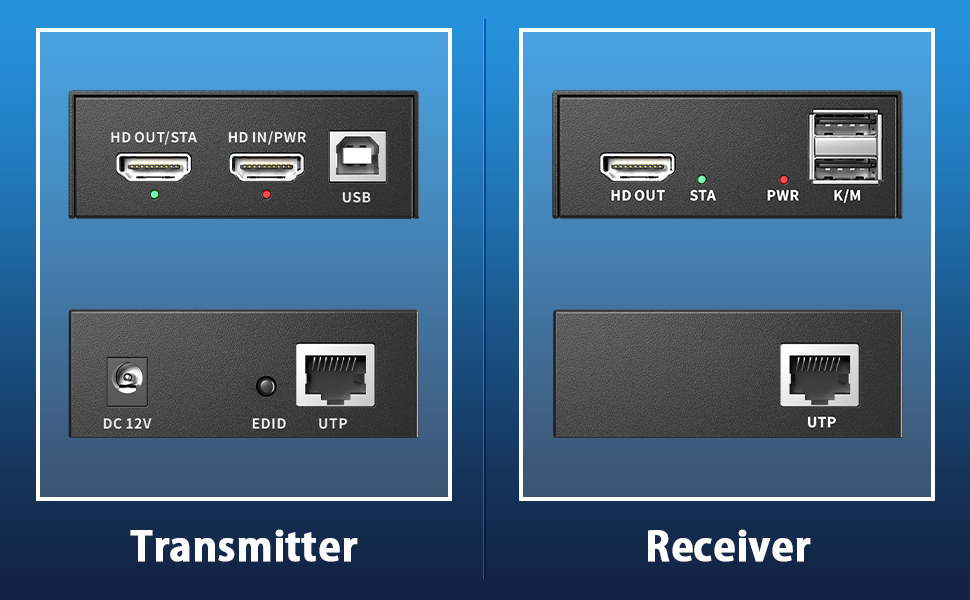

Loop Out on TX

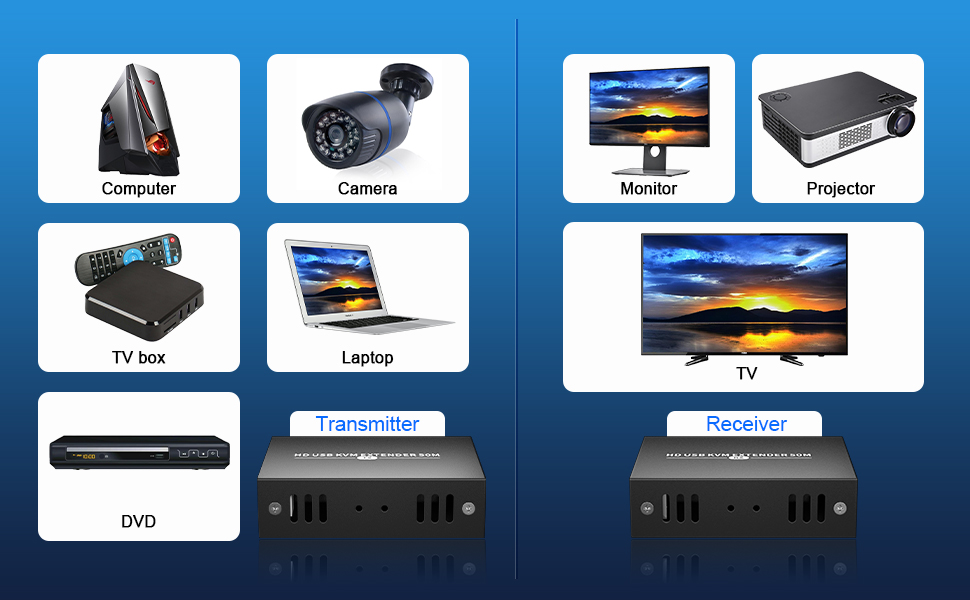

Dual monitor. It has one HDMI OUT port on the TX that can be used to connect a local monitor. And also has one HDMI OUT on the RX, which is used to connect to a remote monitor.

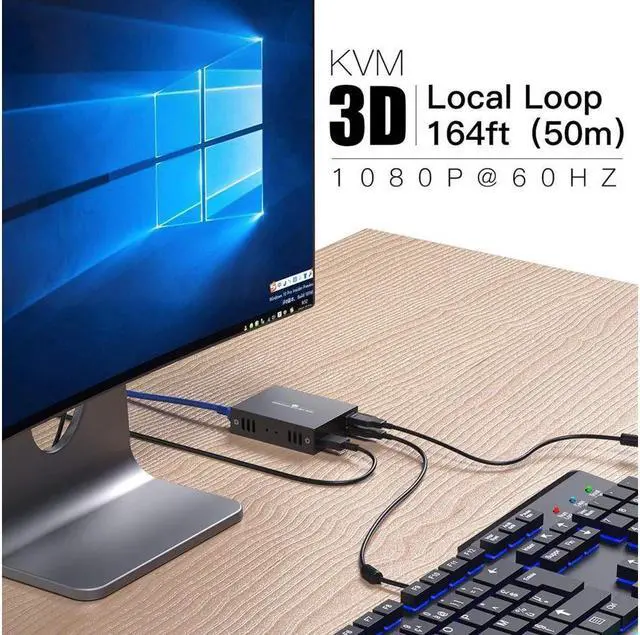

HD 1080P Video
Support resolution max 1920x1080P@60Hz and 3D signal, compatible with with 1080i, 720p and other resolutions.
POC Function
Power over cable. HDMI extender works perfectly by one power adapter.

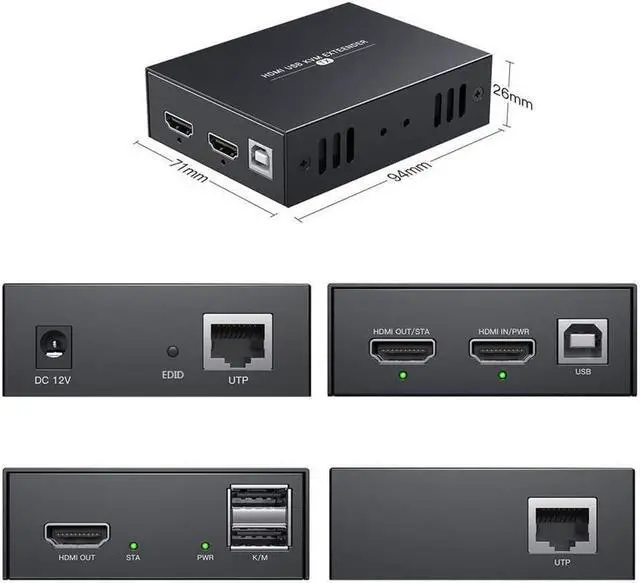

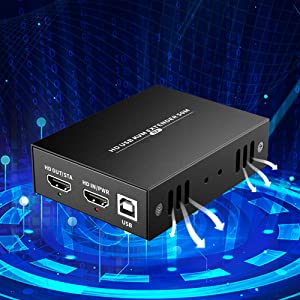

Metal Shell
Rugged metal housing, vent holes for easier heat dissipation.
Remind:
(1) Directly connect your signal source and monitor before connecting HDMI Extender, and check the signal status.
(2) The red light represents the power, and the green light represents the signal. It is recommended to use 2 Ethernet cables for testing if there is no signal.
(3) RJ45 requires the conventional T568B standard. Need to change the wiring sequence if you are using T568A.
-
How to set EDID:
If HDMI Extender can't recognize your TV's EDID during the first connection, please set the following settings.
a) Connect the TV to the HDMI IN on Transmitter(TX).
b) Connect the power and start the TV and Transmitter.
c) Hold EDID button for 3-5 seconds. Green light stops flashing, indicating EDID copy is complete.
-

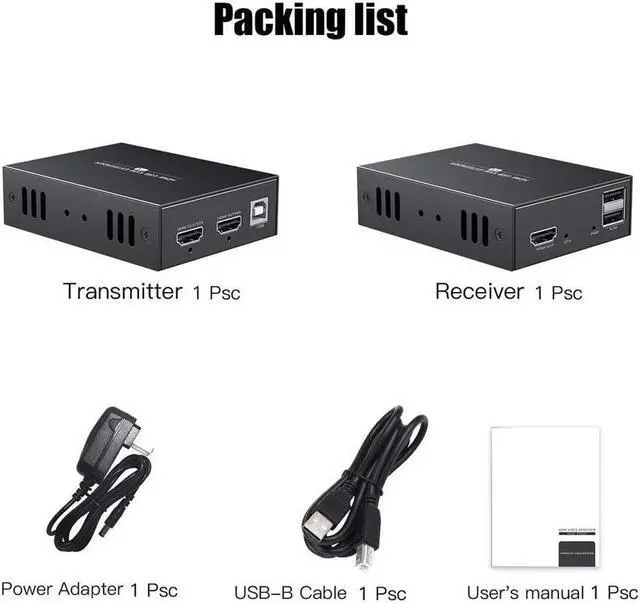

Packing list:
1x Transmitter
1x Receiver
1x USB-B to USB-A Cable
1x Power adapter
1x User manual
