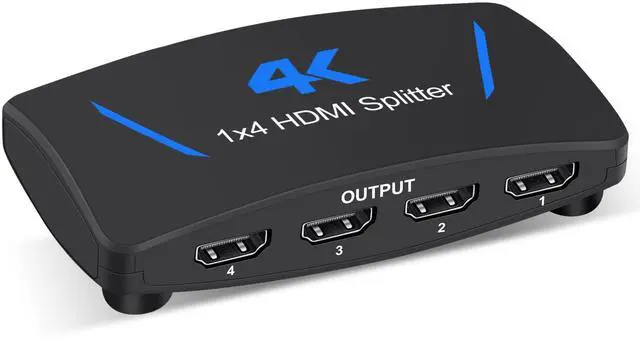

4K@30Hz HDMI Splitter 1 in 4 out, audio video distributor duplicate/ mirror screens only

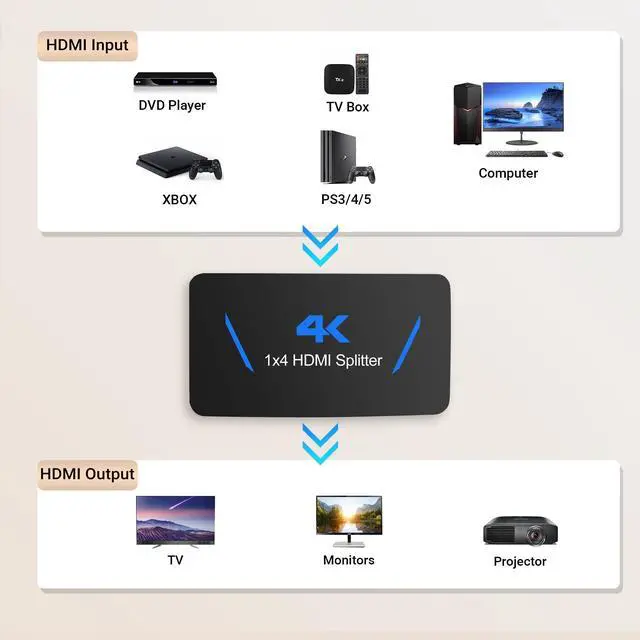

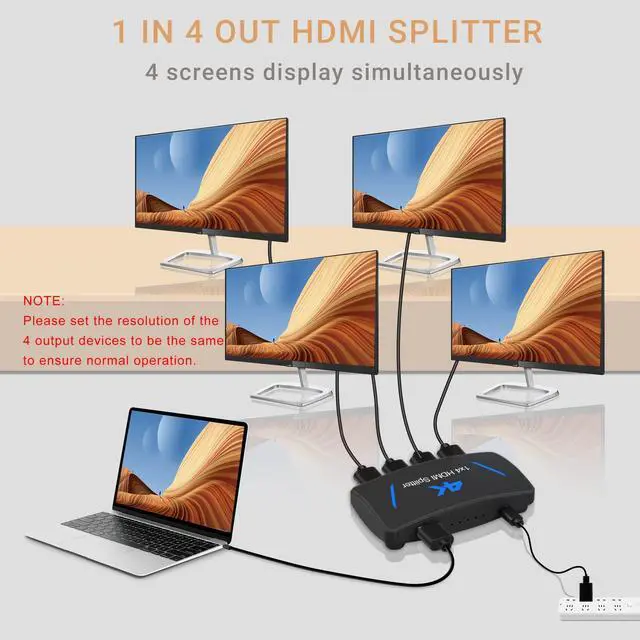

This HDMI 4 port splitter allows one HDMI inout source to four HDMI monitors, distributes video and audio simultaneously without any loss.

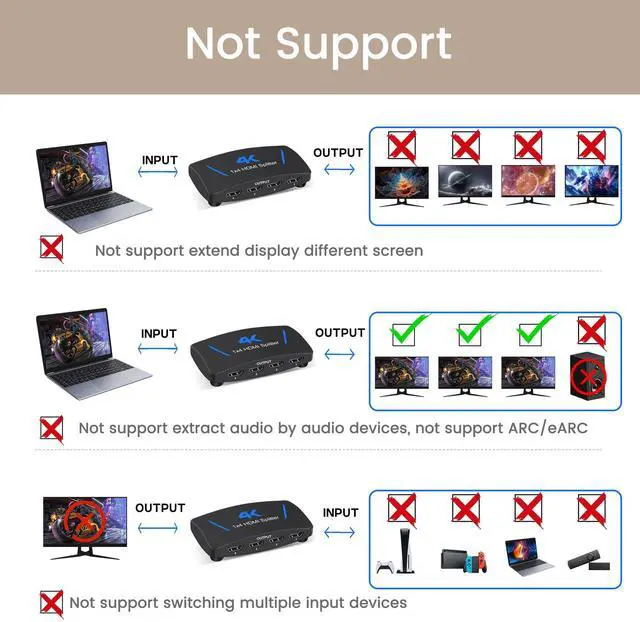

NOTE: JUST DUPLICATE / MIRROR SCREENS ONLY, NOT SUPPORT EXTEND!
OPERATION AND FEATURES --
1.Connect one cable from HDMI source devices into HDMI Splitter input.
2.Connect cable from each display (monitor or projector) into the HDMI Splitter output.
3.In most cases, you can work without a power supply. If it does not work, please connect to a 5V/1A power adapter supply.
4.PLEASE set the all output devices resolution to be the same to ensure normal operation.
5.Support input up to 15 meters AWG26 HDMI standard cable length, output up to 15 meters AWG26 cable length (1080P resolution).
6.Support input up to 8 meters AWG26 HDMI standard cable length, output up to 8 meters AWG26 cable length (4K resolution).
7.This 1x4 Splitter will display the lower resolution of 4 device with only 1 HDMI source, and the resolution of the 4 output screens will be the same SPECIFICATIONS --
HDMI Resolution: 4Kx2K@30Hz / 3D/ 1080p/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i
Support Audio Format: DTS-HD/ Dobly-true HD/ DTS/ Dobly-AC3, DSD
Support Video Color Format: 8/10/12bit
Max Bandwidth: 340 MHz

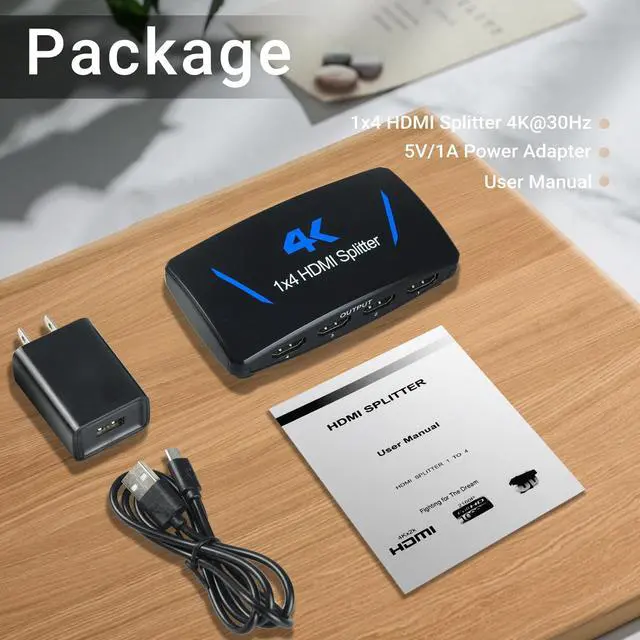

PACKAGE CONTENTS --
1 x 4K@30Hz HDMI Splitter 4 Port
1 x 5V/1A Power Adapter
1 x User Manual
4K UHD High Resolution: 4 way HDMI splitter support the resolution can up to 4K(3840x2160P)@30Hz, also backward compatible with 3D, 1080P@60Hz, 1080i@60Hz, 720P@60Hz, 480P@60Hz, 480i@60Hz etc. Support HDCP 1.4b, HDCP 1.4, deep color 8/ 10/ 12bit. Audio format: DTS-HD/ Dobly-true HD/ DTS/ Dobly-AC3, DSD. For the 4K resolution, the frequency cant above 30Hz. NOT support HDCP 2.2. Long Distance Transmission: Our HDMI monitor splitter provide an extra long distance for video and audio transmission. With the AWG 26 standard HDMI cable, can up to 50ft (input 26ft, output 26ft) at 4K@30Hz; also can up to 100ft (input 50ft, output 50ft) at 1080P. Please set the all HDMI outputs resolution to the same to ensure normal operation.
