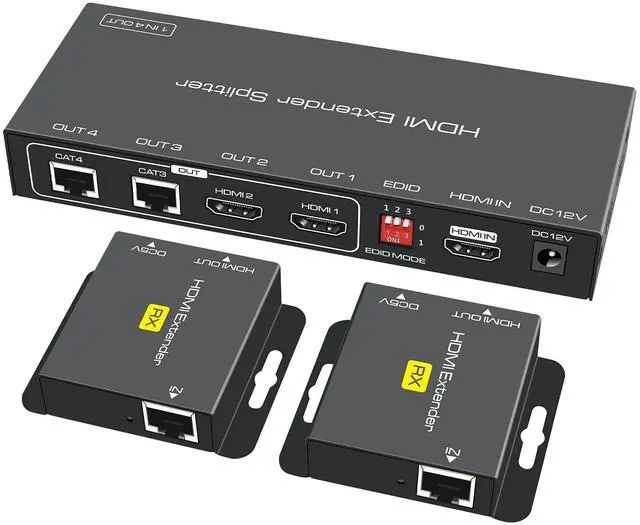

BUCIER HDMI Extender Splitter 1 in 2 Out Over Cat5e or 6 Ethernet Adapter Up to 165FT HD1080P60Hz with Loop Support EDID Copy Settings HDCP

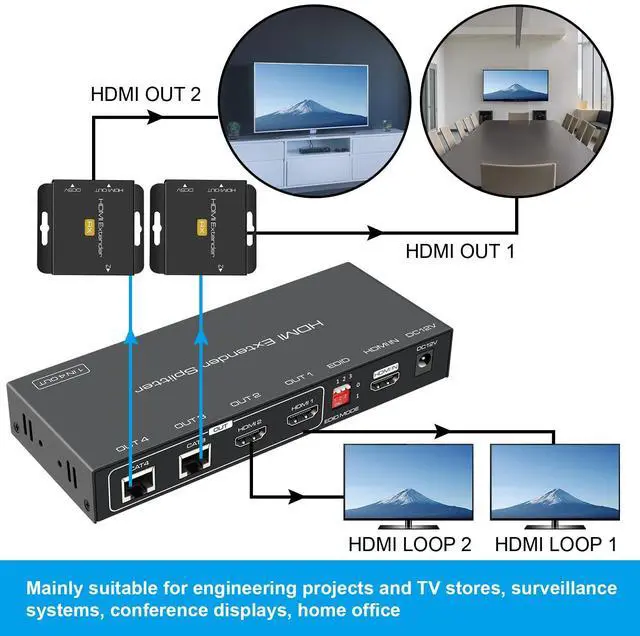

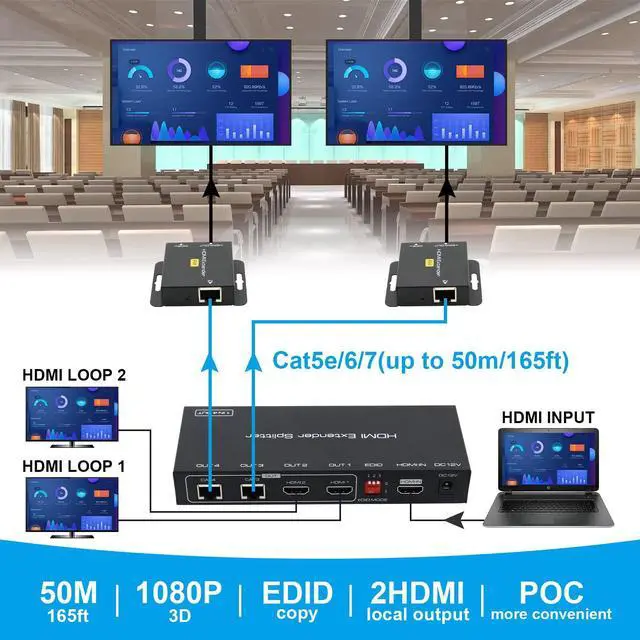

- [HDMI Extender splitter over CAT6]The HDMI extender splitter can split One HDMI signal into two identical Signals and run up to 165ft through the CAT6 cable with two Loop-Out Local Display
- [Power on CAT6]HDMI extender 1 in 2 out Using POC technology, we only need to use the power supply at TX, and Rx can work through the network cable transmission power supply. Low to 5V voltage transmission, safe and reliable. (Notes: 12V power must be connected to TX, otherwise the device will be damaged.)

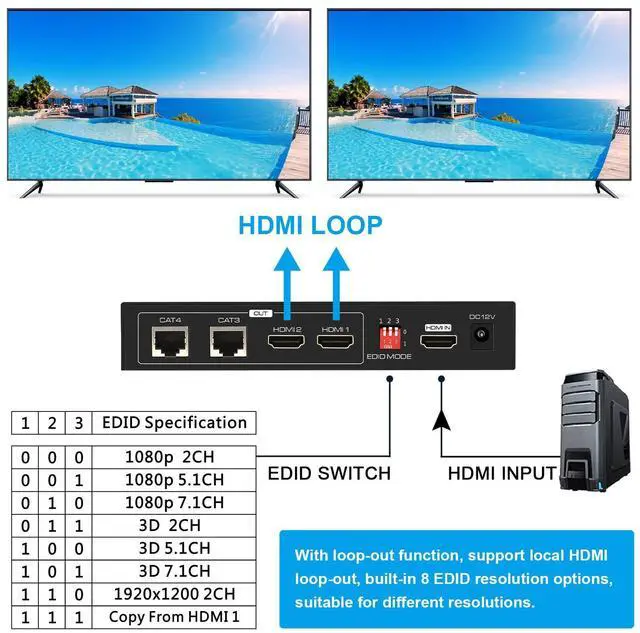

- [HDMI Extender Splitter Support EDID Preset]According to different application requirements, the TX supports a variety of EDID preset programs to improve the compatibility of the equipment, which can better match the signal source and display to get the most suitable video and audio signal
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:
HDMI extender splitter can split one HDMI signal into two same signals and pass over CAT6 cable up to 50m long
with two local loop-out displays.
Notice:
The HDMI extender must be made of oxygen-free copper CAT5e/6 cable.
The extender transmits HDMI 1920x1200 signals at 60Hz, the longest distance can only be 40m.
The extender transmits 1080P @ 60Hz HDMI signal over Cat5e, the longest distance can only be 40m.
The extender transmits a 1080P @ 60Hz HDMI signal over Cat5, the longest distance can only reach 30m.
12V power adapter must be connected to TX, otherwise the device will be damaged.

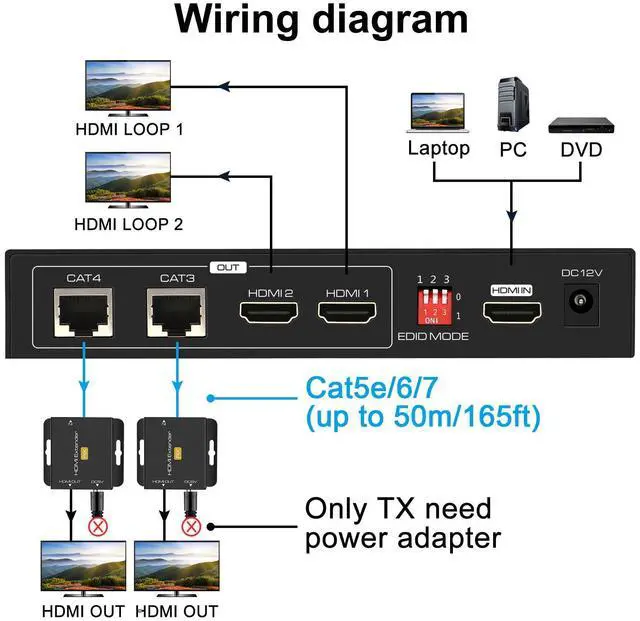

Instructions:
1. Connect an HDMI cable (AWG 26) up to 5m between the source device and TX extender.
2. Connect an HDMI cable (AWG 26) up to 5m between the display device and the RX extender.
3. Connect individual Cat6 cables up to 165 ft. in length instead of one HDMI cable between the TX and RX extenders.
4. Connect 12V power supply with POC technology, just use the power supply on TX and Rx can work.
5. Transmit power adapter through the network cable. Low voltage transmission up to 5V, safe and reliable.
Specification:
Supported resolution: / Up to 1920x1200 @ 60Hz / 3D / 1080p / 1080i / 720p / 576i / 480p
Audio Format Supported: PCM / DTS / DSD
Maximum Transmission Bandwidth: 1.65 G
HDMI input/output cable distance: 16 feet (5m) AWG26 standard HDMI cable
Power Format: Input: AC(50HZ, 60HZ) 100V-240V,Output: DC12V

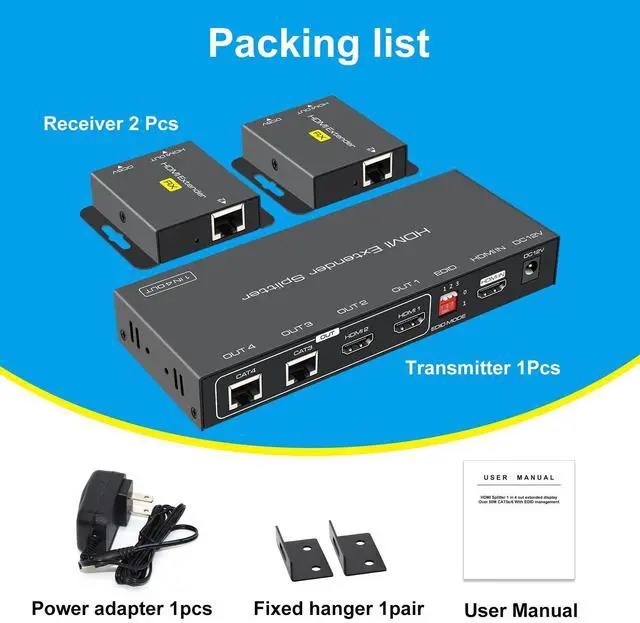

Packing list:
1. HDMI-TX x 1
2. HDMI-RX x 2
3. 12V C power adapter x 1
4. User Manual x 1
Additional Features
- [No compression Transmission]HDMI extender splitter 1x2 support resolution up to 1920x1200@60Hz and 1080p@60Hz. Support audio format: PCM/DTS/ DSD. Suggested length: Cat6/7--165 ft, Cat5e--130 ft, Cat5--100 ft
- [HDMI Extender Splitter Has Auto EQ Fuction]Plug & play setup without any software installation. Chip built-in automatic algorithm, no need to manually adjust the receiver equalization settings to compatibility with cable transmission distance. This unit requires only one power adapter to work
