SDI to HDMI-compatible Converter Adapter SDI/HD-SDI/3G-SDI Adapter SDI Adapter Support 1080P for Camera Home TheaterColor: Black (SDI TO HD)

3G SDI to HDMI-compatible Converter

Feature:

1. This SDI to HDMI-compatible converter support full HD 1920*1080P, clear and beautiful image, which can present details.

2. Conversion from SMPTE 425M level B to

Level A 1080p 50/60 4:2: 2 10-bit.

3. Adopt pure hardware technology processing, which can detect different SDI signals automatically.

4. Operation at 2.970G bit/s, 1.485G bit/s and 270Mbits/s.

5. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C.

6. Connect with other units to extend your signal over long distances.

Specification:

Power Supply: DC 5V -12V

Power Consumption (Max): 5W

Input port: 1*SDI (HD 3G-SDI)

Output port: 1 * HD

SDI Transmission Rates: 2.970 Gbit/s and 2.970 / 1.001 Gbit/s.

In/Output Resolution: 720p, 50, 60, 1080i, 50/60 1080p24/25/30/50/60.

ESD Protection Human body model: 8kV (air-gap discharge), 4kV (contact discharge).

Relative Humidity: 20 ~ 90% RH (Non-condensing)

Dimension: 80mm x 41mm x 25 mm.

Weight: 150g

Package:

1* 3G SDI to HD Converter

1* DC Power cable

1* User Manual

Note

1. This sdi to hd converter does not support SD, it does not support 480i and 576i.

2. It can convert audio and video, Now, it can not compatible sony and blackmagic device.

3. If you need use for Internal and external synchronization device, for

example: Panasonic tv....., please buy the below link product

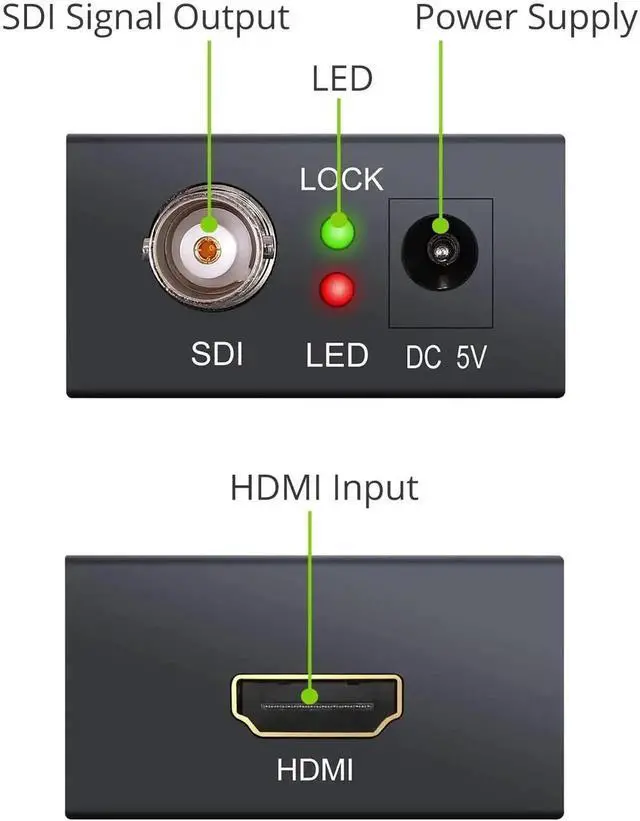

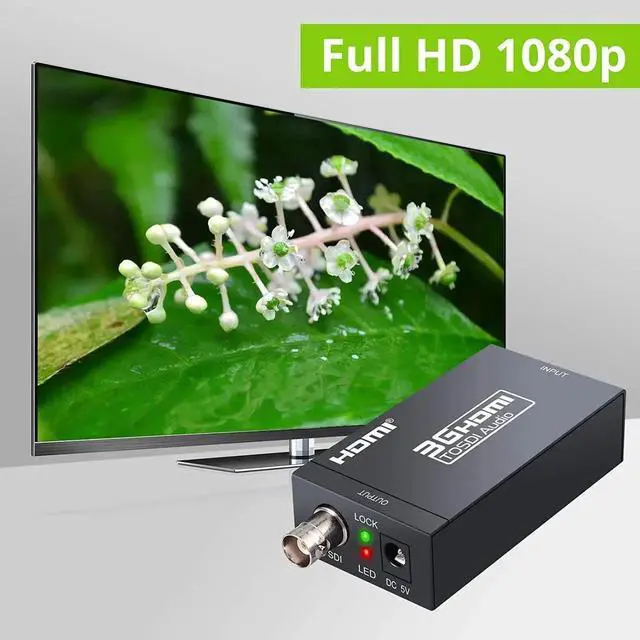

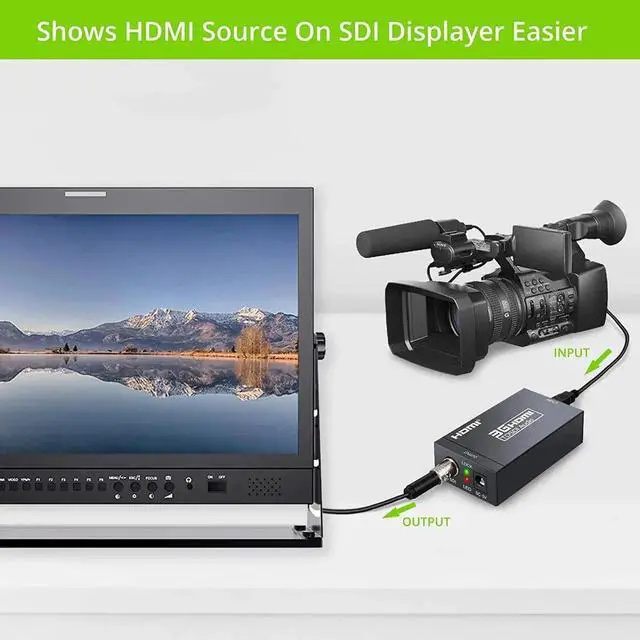

3G HDMI-compatible to SDI Converter

features:

----Input: 1*HDMI-compatible

----Output: 1*SDI

----Input/Outputresolution: 480i, 576i, 720p50/60, 1080p24/25/30, 1080i50/60, 1080p50/60

----Power supply: DC5V

----Power Consumption (Max): 5W

----Dimension: 80mm x 41mm x 25 mm

----Weight: 150g

---Auto video mode detection(3G/HD/SD).

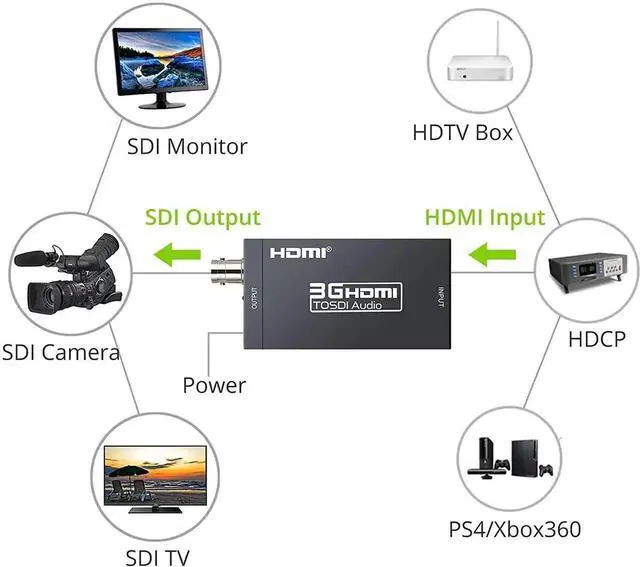

---Connect with other units (SDI to HD) to extend your signal over long distances.

---SDI interface operates at bitrates of 2.970 Gbit/s, 2.970 / 1.001 Gbit/s, 1.485 Gbit/s, 1.485 / 1.001 Gbit/s and 270 Mb/s.

---Supports signal transmission distances up to 300M for SD signals, 200 for HD signal and 100M for 3G signal.

Package:

1* Converter

1* DC Power cable

1* User Manual
