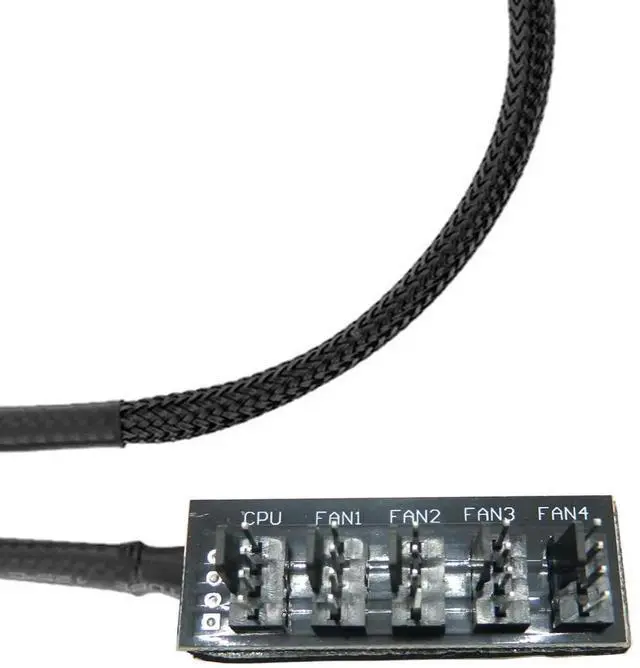

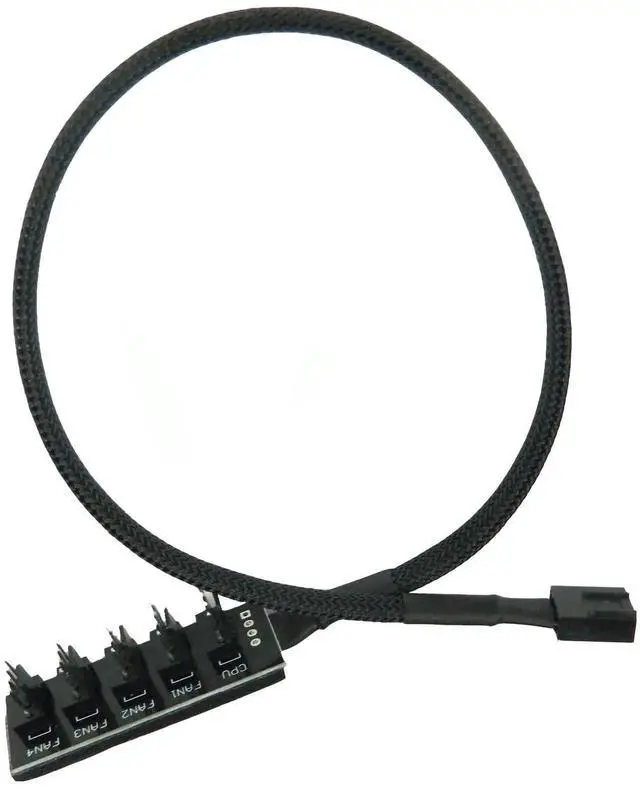

Aomoproing 2PCS PWM Fan Hub Splitter 4-Pin/3-Pin pc 5 Way Splitter, Cooling Fans Power Cable 1 to 5 Way PC Case Internal Motherboard Extension Cable
- Power up to 5 PC fans from a single 4-Pin PWM fan header, to solve the lack of pc case fans ports and reduce the load on the motherboard.

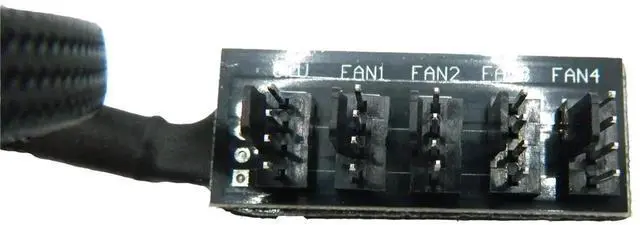

- The 5 way PMW interface is connected to the motherboard cpu fan interface, the first cpu fan dedicated interface, the FAN1/FAN2/FAN3/FAN4 interface is a pwm conventional fan interface.
- Compatible with 12V CPU and case fans with 4 pin or 3 pin connector, the extension cable offers greater flexibility between motherboard and CPU cooling fans.

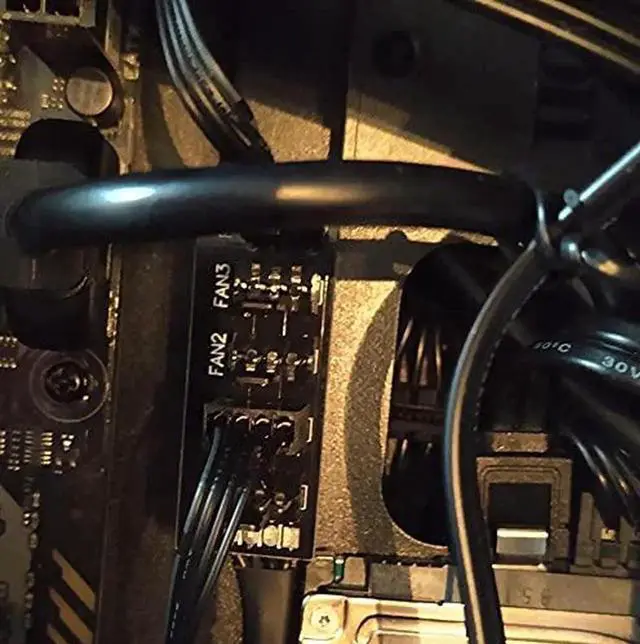

- Easy to install, just insert the PWM chassis fan splitter cable into the motherboard, and then paste the other end to the chassis with double-sided tape.
- Black sleeved nylon braided cable, more durable and make the internal of pc case looks more clean & tidy.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Type: 5-Port PWM fan hub splitter
Connector Type: 4 pin
Length: 27cm/10.6inch
Voltage: DC 12V
Function: help protect your PC from overheating
The cable is one 4-pin female connector to 4-pin male connector,
suits for CPU and PC 4-Pin / 3-Pin case fan.
Suitable 12V CPU and case fans with 3 pin or 4 pin connector.
Support up to 5 fans from 4 pin PWM fan header on motherboard.
All connected fans are following the same PWM signa, speed control is the same for all fans when.
use fan controller software like AI stuite/Xspert FAN and EASY TUNE, etc.
Package includes:

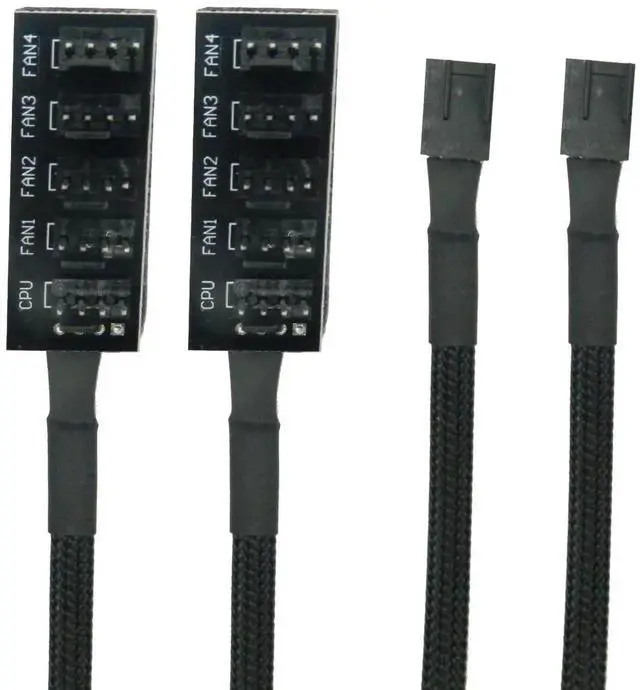

2 X Female 4 pin to 5 male 4 pin socket fan hub
Note:
Only the CPU Fan channel of the PWM splitter carries an RPM signal as only one RPM signal can be read by the motherboard connector.
This is only a fan hub, NOT fan speed controller.
Only 4-pin PWM fans speed can be adjusted by fan controller software.
3-pin fan would run in full speed, can not be adjusted when connect.
