$18.99
Ships from China.
Meet Your Seller

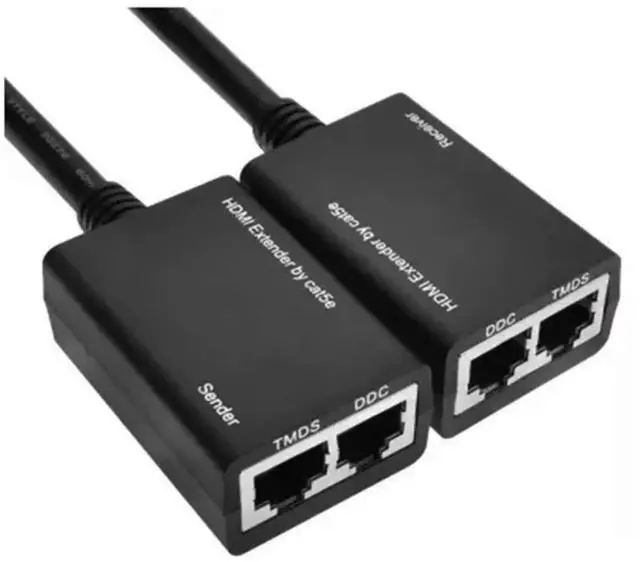

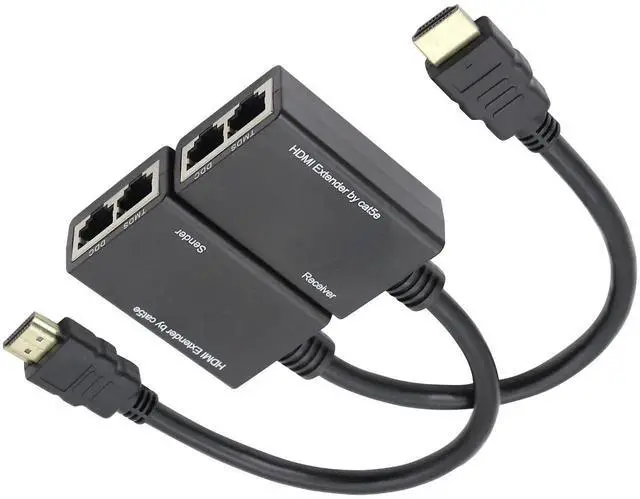

AOMOPROING HDMI Extender to RJ45 Over CAT 5e/6 Network LAN Ethernet Cable Adapter Signal Repeater 98ft 1080P HDMI Male to RJ45 Adapter 30M Sender+Receiver,2 Ports
- High-QualityThis HDMI male to RJ45 extender high-speed point-to-point output,ensuring that the input and output are exactly the same. Through high-quality Cat 5e or Cat 6 cables, it can simultaneously extend HDMI video and audio signals to 30m(98ft).
- Full HD 1080P: With 1.65Gpbs signal transmission speed, this Network Cable Adapter Signal Repeater supports HDCP 1.1/1.2, HDMI 1.4, 3D 1080P. And it supports resolution of 480i/p, 576i/p, 720p, 1080i/p etc.
- Widely Used:This HDMI Extender is HDMI to RJ45 Extender Adapter,supports CAT-5e/6 cable, works for HDTV,Set-top Boxes, DVD,HDPC,home&hotel projector data monitoring center, large conference center. Note: Best choice is use CAT6 Cable. Please make sure that the interface of your cable does work well, the signal will better than cat5 cable. Please use two Cat5e or Cat6 cable to extend the HDTV display up to 30m(98ft) for 1080p,not a single cable.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HDMI Male to RJ45 Network LAN Extender 30m Cable Adapter Over Cat 5e/6 1080p for HDTV HDPC 4K

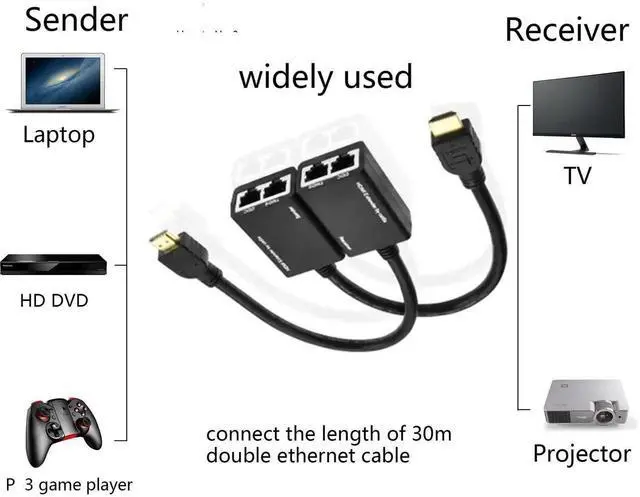

Connection and Operation:
1.Plug the fixed HDMI connector of the sender into the HDMI input source such as: HD-DVD,etc.
2.Connect single Cat 5e or Cat 6 cable (not included)to both the output of the transmitter and input of the receiver.
3.Plug the fixed HDMI connector of the receiver into the HDMI display (such as: HD-LCD, HD-DLP).
NOTE:Uses as a pair (one sender,one receiver).
Specification:
HDMI connector: 19Pin male
Video expansion bandwidth: 1.65Gbps / 165MHz
CAT-6 cable: 30M, 1080p
Power consumption: 5W
Supported video formats: DTV/HDTV
Supported resolutions:
1080P/1080i/720P/576P/480P/576i/480i

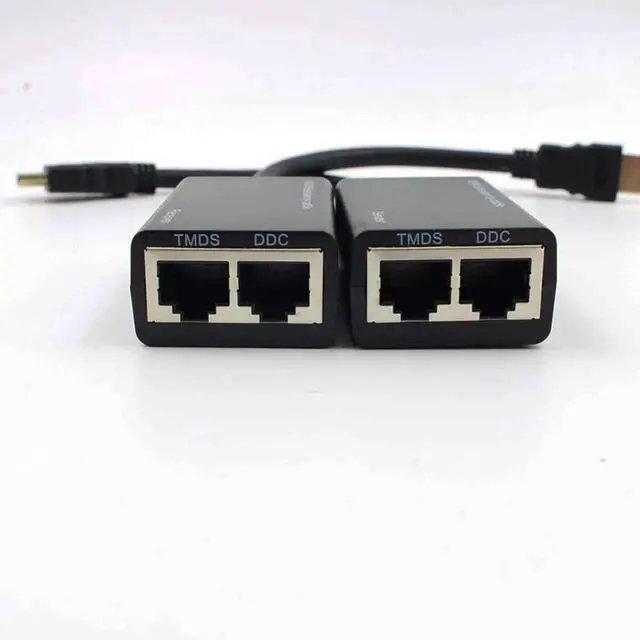

Please note that the device requires running dual CAT5e /CAT6 (not included)cables to establish the connection.One carries data signal and the other carries timing signals.
This extender will work with CAT5e cables, but we recommend using CAT6 cables where possible. Also, solid conductor cables carry a stronger signal than their stranded counterparts, so if possible use solid cable. Lastly, shielding isn't required in your patch cables, but if possible we suggest you use them.
In conclusion, many cables can get the job done, but the best option is to use a CAT6 Shielded Cable with Solid Conductors especially if you are going to try and max out the distance.
Package includes:1 pcs HDMI Extender Transmitter(TX),1 pcs HDMI Extender Receiver(RX).
- Easy to Use & Money Saving:The transmitter and receiver are used in pairs.No need to install drivers, flexible, plug and play. No need power supply. What's more, 30 meters Ethernet cable is cheaper than 30 meters HDMI cable, saving many money. Using high-quality Cat5e/Cat6 cables instead of extra-long HDMI cables to get the best image quality, reduce costs.
- PVC Shell Material:This HDMI Extender to RJ45 using PVC plastic, which is lightning-proof, sturdy and Enduring. And it is small size, easy to carry.
