AOMOPROING HDMI Solderless Signals Terminal, Gold Plated HDMI Free Welding Connector Breakout Board with Breakout Plastic Cover,Screwdriver
- HDMI Solderless Signals Terminal:No soldering needed! All signal ports is printed with wire number on both sides of the board for quick wiring,which is really nice because we sometimes forgetting the sequence.
- HDMI adapter signals terminal is equipped with a crimping ringof tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor contact.Suitable for the cable up to 10mm

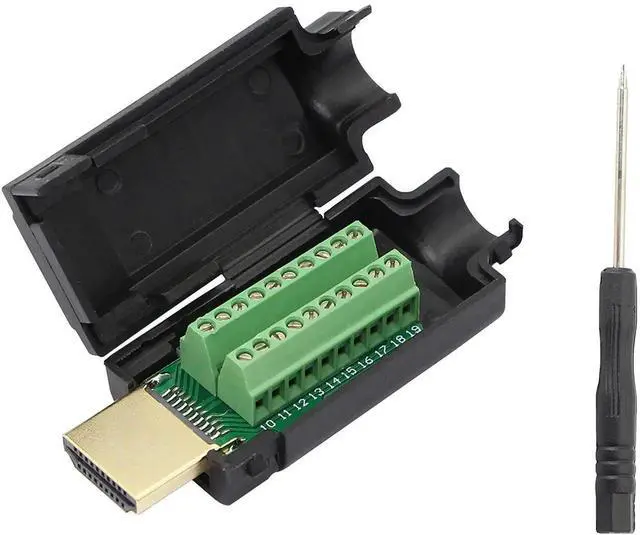

- The breakout board comes already installed in a plastic hood enclosure with a openable cover.For a wire holder for fixing cable and avoiding twisting.Snap-on construction that opens and closes easily and is sturdy and secure after closing.
- Compact design and reliable connection, solderless type, Adopt environmentally friendly insulated terminal block.JRequires only a screwdriver and a wire stripper to terminate HDMI cables, slide in your stranded or solid-core wire, and re-tighten.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HDMI Solderless Signals Terminal,Gelrhonr Gold Plated HDMI Free Welding Connector Breakout Board with Screwdriver
Specification:
Compatible with HDMI 2.0, HDMI 2.0 (24AWG) 19 1 core (5P 4C ADB)1.4 and 1.3.
Type: HDMI Male Plug Terminals Connector
Interface Type: HDMI male
Color: black
Size:
Suitable cable outer diameter: Less than 10mm
Number of core: 19
Number of pin: 19+1
This product uses a cable: HDMI engineering line
Feature:
Fine workmanship and durable.
Weld-free mode, simple wiring.

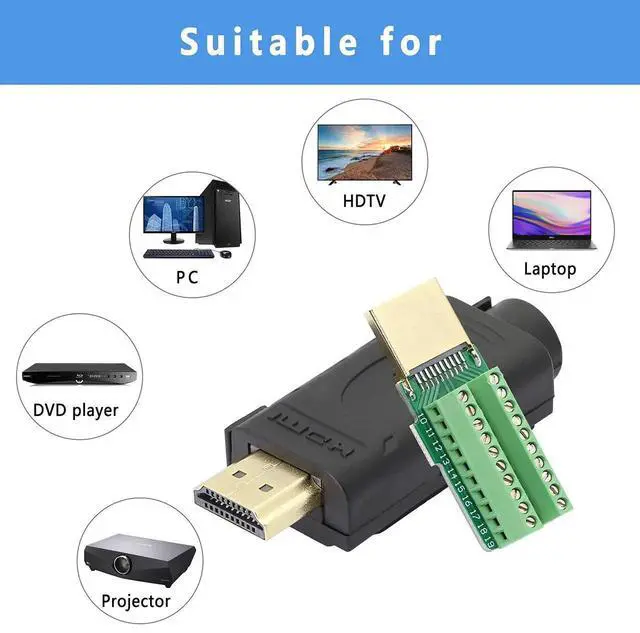

Supports a group of HDMI signal transmission.
Need to use with the width less 2MM flathead screwdriver.
Package Includes: 1*HDMI Solderless Signals Terminal with case

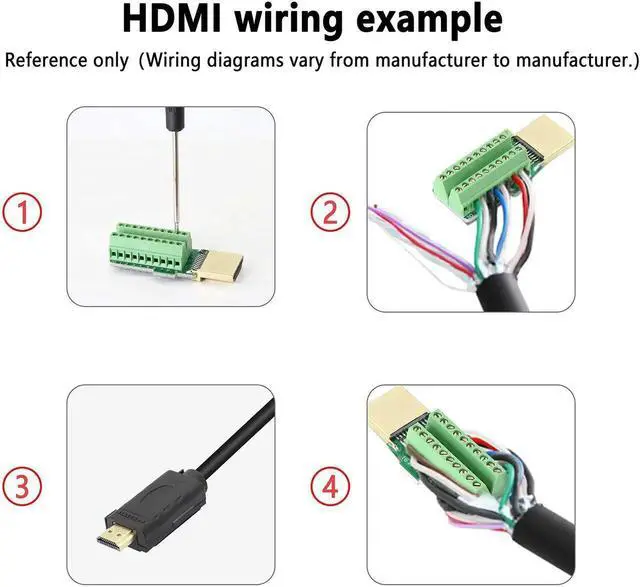

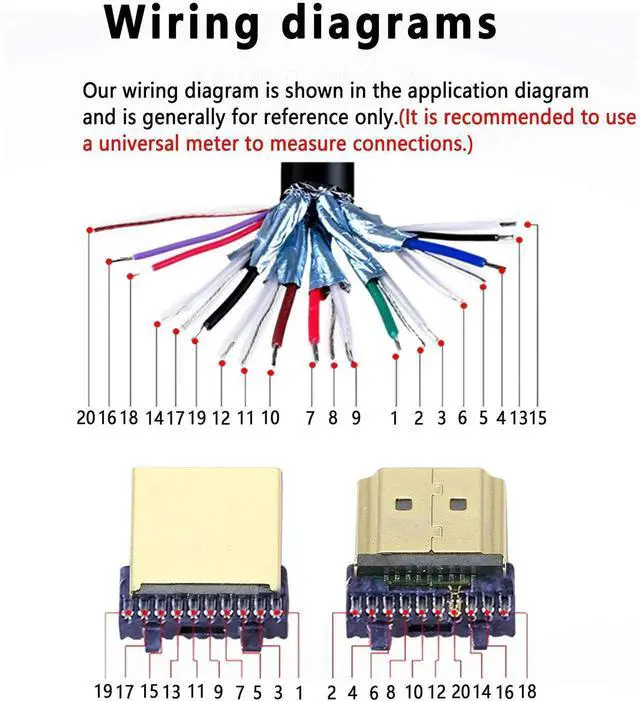

- Little tipsDue to the different manufacturers,so the most HDMI have varying wiring plans.The actual wiring could be different depending on your equipment.You can use the multimeter test to connect this HDMI solderless soldering headIf only one end needs to be changed, please apply the same wiring structure that was in use.
