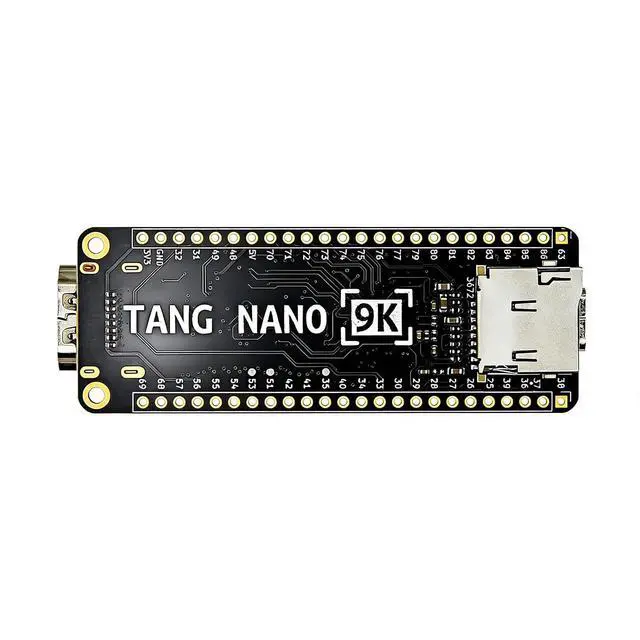

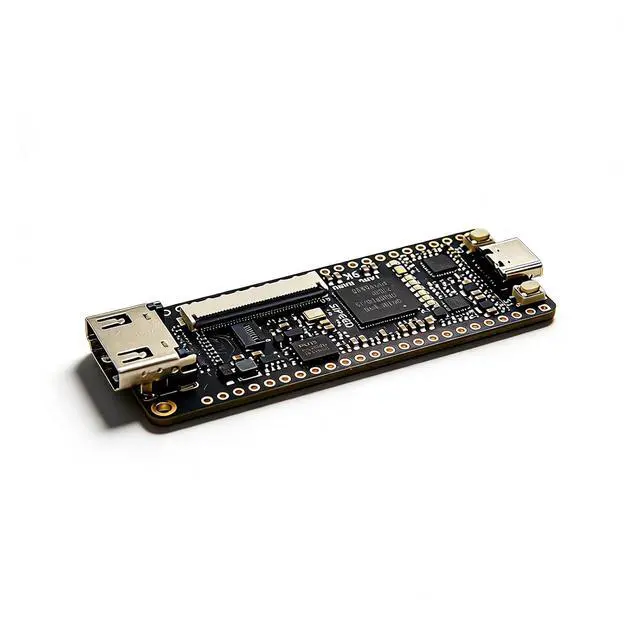

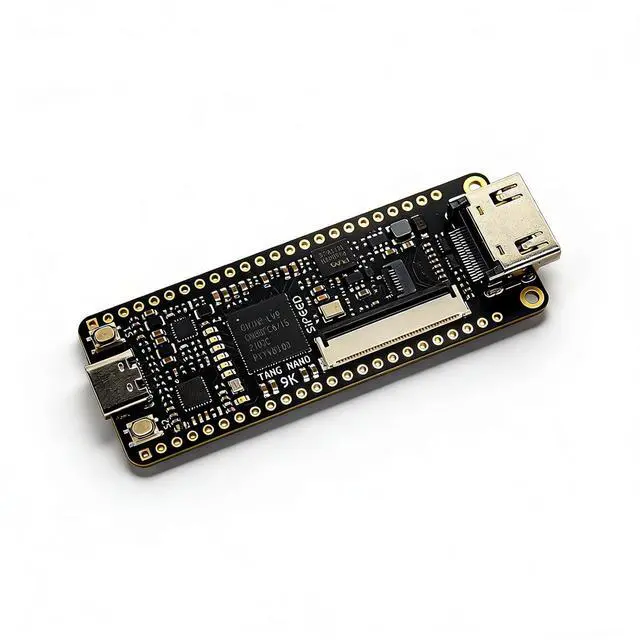

Sipeed Tang Nano 9K FPGA Development Board, Open Source RISC-V PicoRV MCU, with GW1NR-9 Chip 8640 LUT4 32Mbits SPI Flash, Single Board Computer Support TF Card RGB SPI LCD HDMI Port
- [Powerful FPGA Core] Tang Nano 9K is built on the GOWIN GW1NR-9, featuring 8640 LUT4s, 6480 flip-flops, 468K B-SRAM, and 64M PSRAM. It supports the PicoRV RISC-V soft core, making it ideal for Verilog HDL learning, digital logic design, and complex circuit verification.; [Rich Display Interfaces] Tang Nano 9K integrates HDMI, RGB LCD, and SPI LCD interfaces to support a variety of display output solutions, making it ideal for video processing, image output, and display-related prototyping.; [Programming and Debugging] Tang Nano 9K is equipped with BL702 USB-JTAG and USB-UART, eliminating the need for an additional debugger; 6 programmable LEDs, 2 user buttons, 32Mbit SPI flash memory, and a TF card slot for expanded storage.; [Flexible I/O] Configurable I/O interfaces with a drive current range of 4mA24mA; equipped with 2 PLLs and 20 multipliers to support high-speed operations; all I/O pins are exposed, facilitating connection to various peripherals and project verification.; [Application Scenarios] Whether you are an FPGA beginner, a RISC-V developer, or a seasoned hardware engineer, you will benefit from this board. It supports design using the Verilog HDL hardware description language, can run C/C++ code as an MCU, and supports co-design of hardware and software. It is suitable for prototyping, logic verification, embedded system design, and industrial control projects.; [WiKi] wiki.sipeed.com/hardware/en/tang/Tang-Nano-9K/Nano-9K.html
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

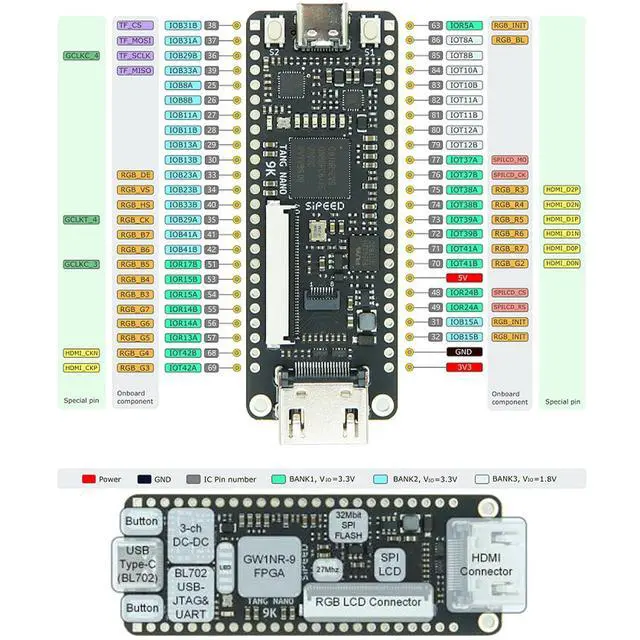

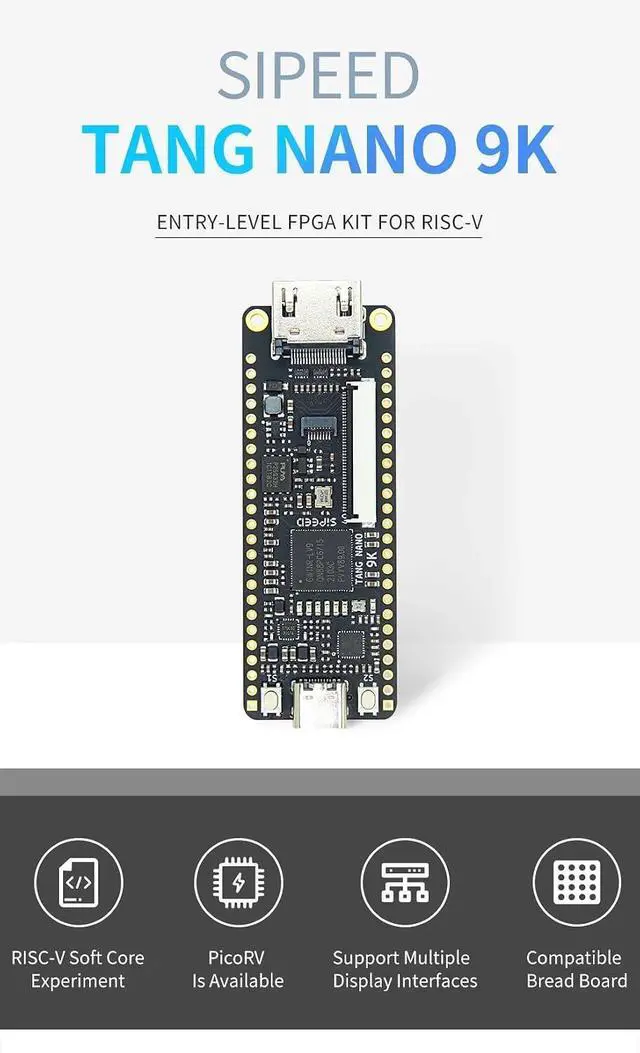

Product description SIPEED TANG NANO 9K ENTRY-LEVEL FPGA KIT FOR RISC-V Indepth specifications of the tang nano 9k Logic units (LUT4) 8640 Registers (FF) 6480 ShadowSRAM SSRAM (bits) 17280 Block SRAM BSRAM (bits) 468K Number of B-SRAM 26 User flash (bits) 608K PSRAM (bits) 64M 18 x 18 Multiplier 20 SPI FLASH 32M-bit Number of PLL 2 Display interface HDMI interface, SPI screen interface and RGB screen interface Debuggor Onboard BL702 chip provides USB-JTAG and USB-UART functions for GW1NR-9 IO support 4mA8mA16mA24mA other driving capabilities Provides independent Bus Keeper, pull-up/pull-down resistors, and Open Drain output options for each I/O Connector TF card slot, 2x24P 2.54 mm Header pads Button 2 programmable buttons for users LED Onboard 6 programmable LEDs Why program & verify failed in SRAM mode? Why program flash failed? How to get a license? What should I do if I encounter an error in the IDE?
