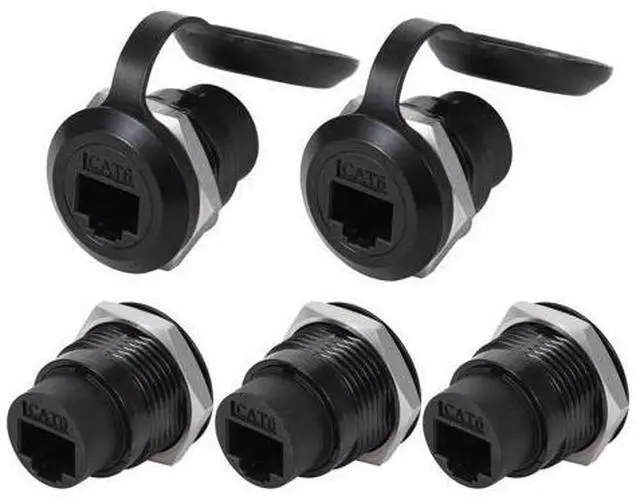

ANMBEST 5PCS RJ45 Panel Mount Connector, Cat6 8P8C Ethernet LAN Pass Through Cable Coupler Female to Female Extension Adapter with Waterproof/Dust Cap

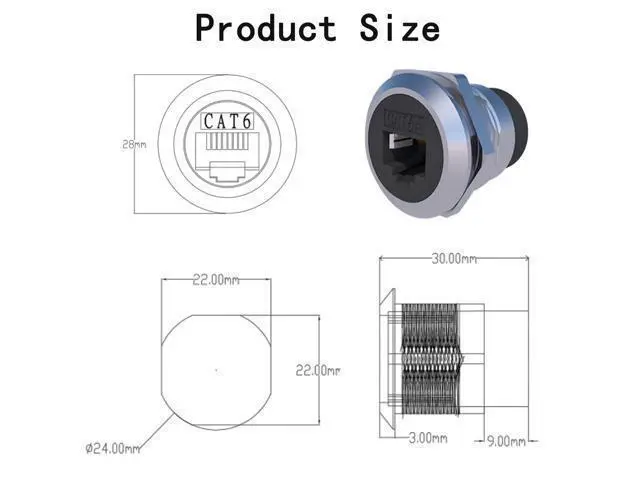

- The RJ45 CAT6 panel mount connector is a type of Ethernet port that can be mounted onto a panel or enclosure, providing easy access for connecting network devices. It is designed to support data transfer rates up to 10 Gbps over twisted pair copper cabling, and is backward compatible with lower rated speeds such as 1000BASE-T and 100BASE-TX. Specifications : Number of cores : 8 PIN Waterproof rating : IP65with Waterproof/Dust Cap Connection type : RJ45 Flame retardant rating : UL94V-0 Connection method : plug type Case wall thickness : Threaded type : >2mm, through-hole type: 0.3 ~7mm Mounting Hole Size : 24mm Thread size : 24* 1.5 Connector transmission classification : CAT6 Transmission speed range : 10 Mbps, 100 Mbps, 1000 Mbps network Bandwidth : 250MHz Electrical parameters : Rated current : 1.5A Rated voltage : 125VAC, 75VDC Insulation resistance : 500M Compressive strength : AC1000V 50HZ or 60HZ for 1 minute Contact resistance : 10M Material : Shell : Zinc die casting, nickel plated Socket contact pin : 0.5 mm diameter phosphor copper wire Contact pin gold plating thickness : 6u inch Waterproof rubber ring : silicone Environmental conditions : Working temperature : -40120Celsius Storage temperature : -2585Celsius Atmospheric pressure : 86106kPa Relative humidity : 90% RH Package Included : 5x Waterproof RJ45 Connector 5x Waterproof/Dust Cap Cover
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Usage: The RJ45 CAT6 panel mount connector is a type of Ethernet port that can be mounted onto a panel or enclosure, providing easy access for connecting network devices. Provides feed-through Cat5/5e/6 ethernet connectivity for data and PoE in industrial environments.;

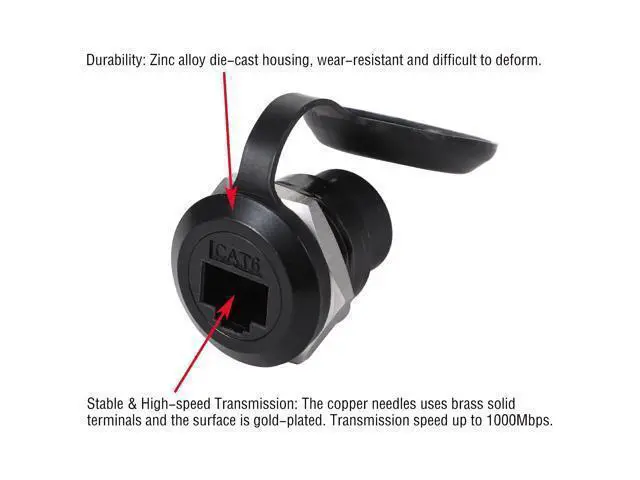

Durability: Zinc alloy die-cast housing, wear-resistant and difficult to deform. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on.;
Stable & High-speed Transmission: The copper needles uses brass solid terminals and the surface is gold-plated. Guarantee the stability of the current. Transmission speed up to 1000Mbps.;
EASY INSTALLATION: No soldering, no installation tools, just plug the standard crystal head directly for quick installation.;
Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us.
Durability: Zinc alloy die-cast housing, wear-resistant and difficult to deform. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on.;
Stable & High-speed Transmission: The copper needles uses brass solid terminals and the surface is gold-plated. Guarantee the stability of the current. Transmission speed up to 1000Mbps.;
EASY INSTALLATION: No soldering, no installation tools, just plug the standard crystal head directly for quick installation.;
Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us.
