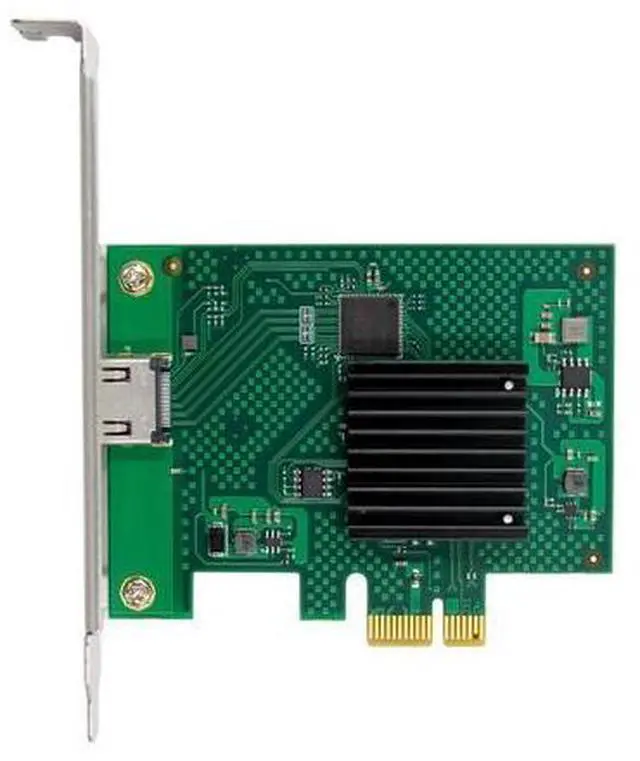

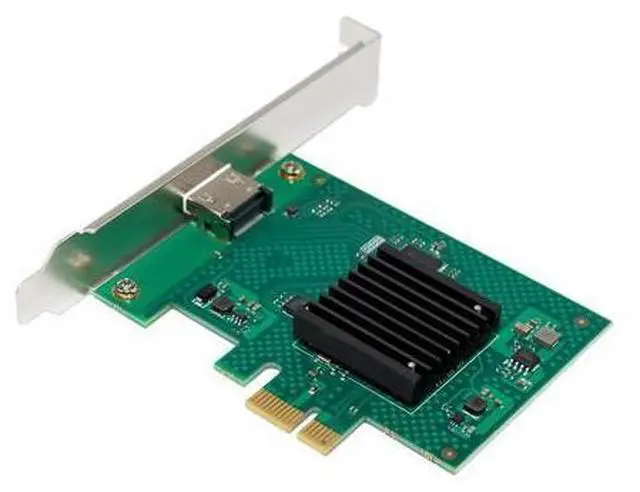

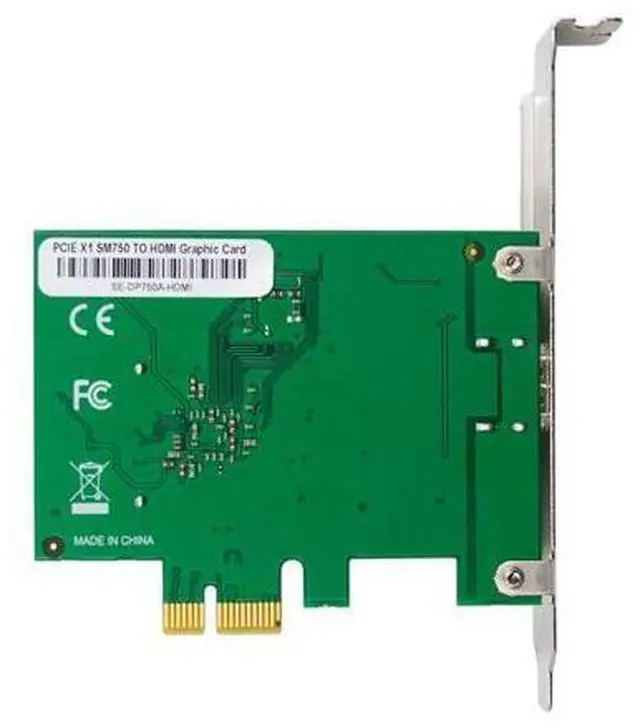

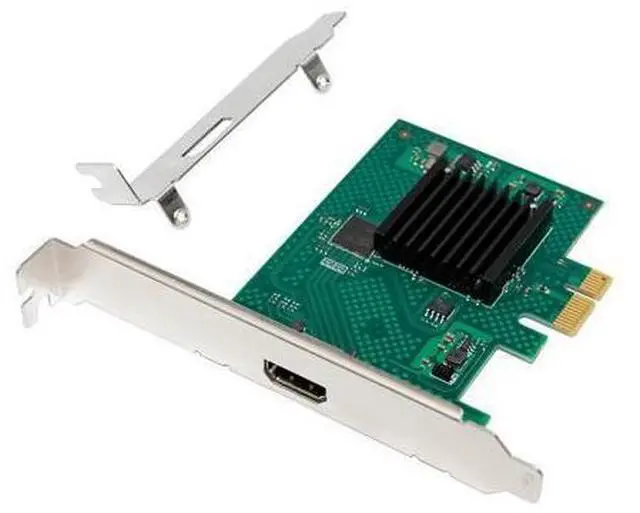

PCIe x1 to Single HDMI Embedded Graphics Card 2D Graphic Accelerator, SM750, for Industrial & Embedded Applications
- Fast rotation function; The screen image can be rotated by 90°, 180° and 270°.; 2D Graphics Accelerator; - 128-bit 2D graphics engine; - ROP3, BitBLT, Transparent Blt, Pattern Blt, Color Expansion and Line Drawing; YUV-16/32-bit to RGB Conversion; Video display layer; Supports 7-layer display frames (2 hardware pointers, main graphics, video, video transparency, transparency and secondary graphics) for scaling video ports; Two 8-bit ports or one 16-bit video capture port support V-16/32-bit RGB conversion in accordance with ITU 601 and ITU 656 specifications.; System Requirements; Win CE. Win XP, Win 7, Win 2003 (32-bit/64-bit), Win 2008 (32-bit/64-bit); Linux Enterprise (32-bit/64-bit), Ubuntu, CentOS, Debian
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Technical Specifications Graphics Engine: 2D
Host interface: PCIe x1
Built-in memory: 16MB DDR (optional)
External memory: 64MB DDR (maximum)
Resolution: 1920 x 1440 (Maximum)
Support System: Win CE. Win XP, Win 7, Win 2003 (32-bit/64-bit), Win 2008 (32-bit/64-bit) Linux Enterprise (32-bit/64-bit), Ubuntu, CentOS, Debian
CPU platform: Intel, AMD, ZFMicro, Freescale PPC, AMCC, STMicro, Marvell, Loongson And other
PCIe Operating temperature: -40 ~ +85
PCI-Express x 1 architecture: - x86 processor ARMMIPSPPC ARC 16MB integrated video DDR memory - Only embedded 16MB DDR Embedded 16MB DDR (32-bit interface) + External 16MB DDR (32-bit interface) External connection supports up to 64MB DDR (64-bit interface) Low power consumption < 1.5W Support cost-effective multi-display/panel systems Supports dual 300 MHz DAC, with the highest resolution reaching 1920x1440 - Dual 18-bit DVO interface, supporting TMDS or LVDS converters, with a maximum resolution of 1920x1440 Dual-channel independent resolution and refresh rate display output Fast rotation function The screen image can be rotated by 90°, 180° and 270°. 2D Graphics Accelerator - 128-bit 2D graphics engine - ROP3, BitBLT, Transparent Blt, Pattern Blt, Color Expansion and Line Drawing YUV-16/32-bit to RGB Conversion
Host interface: PCIe x1
Built-in memory: 16MB DDR (optional)
External memory: 64MB DDR (maximum)
Resolution: 1920 x 1440 (Maximum)
Support System: Win CE. Win XP, Win 7, Win 2003 (32-bit/64-bit), Win 2008 (32-bit/64-bit) Linux Enterprise (32-bit/64-bit), Ubuntu, CentOS, Debian
CPU platform: Intel, AMD, ZFMicro, Freescale PPC, AMCC, STMicro, Marvell, Loongson And other
PCIe Operating temperature: -40 ~ +85
PCI-Express x 1 architecture: - x86 processor ARMMIPSPPC ARC 16MB integrated video DDR memory - Only embedded 16MB DDR Embedded 16MB DDR (32-bit interface) + External 16MB DDR (32-bit interface) External connection supports up to 64MB DDR (64-bit interface) Low power consumption < 1.5W Support cost-effective multi-display/panel systems Supports dual 300 MHz DAC, with the highest resolution reaching 1920x1440 - Dual 18-bit DVO interface, supporting TMDS or LVDS converters, with a maximum resolution of 1920x1440 Dual-channel independent resolution and refresh rate display output Fast rotation function The screen image can be rotated by 90°, 180° and 270°. 2D Graphics Accelerator - 128-bit 2D graphics engine - ROP3, BitBLT, Transparent Blt, Pattern Blt, Color Expansion and Line Drawing YUV-16/32-bit to RGB Conversion
