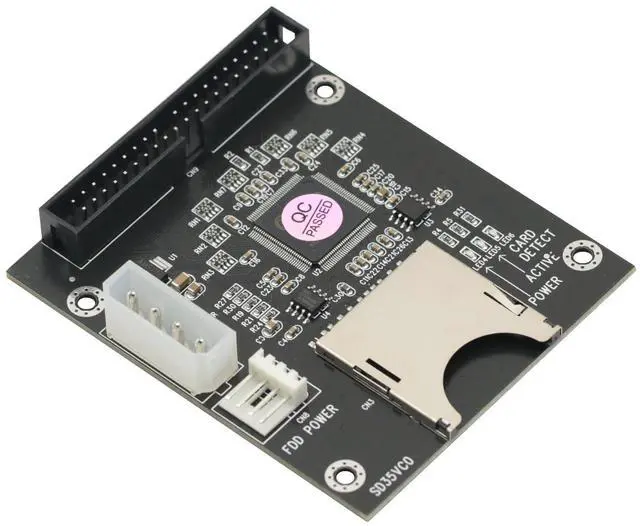

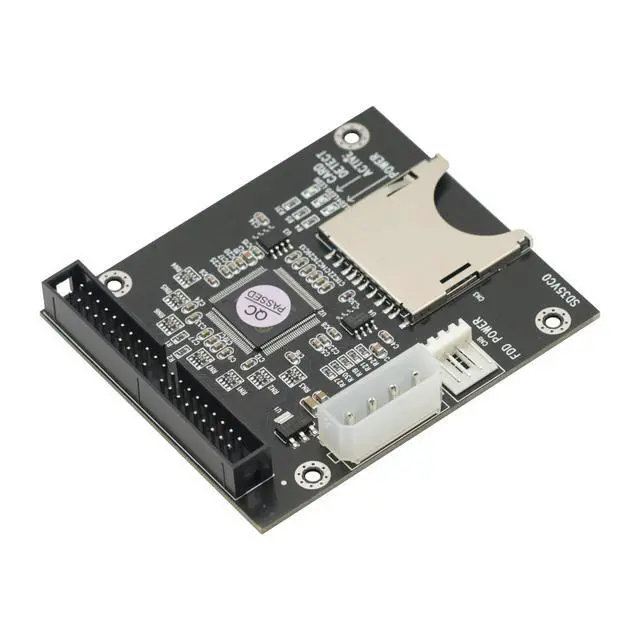

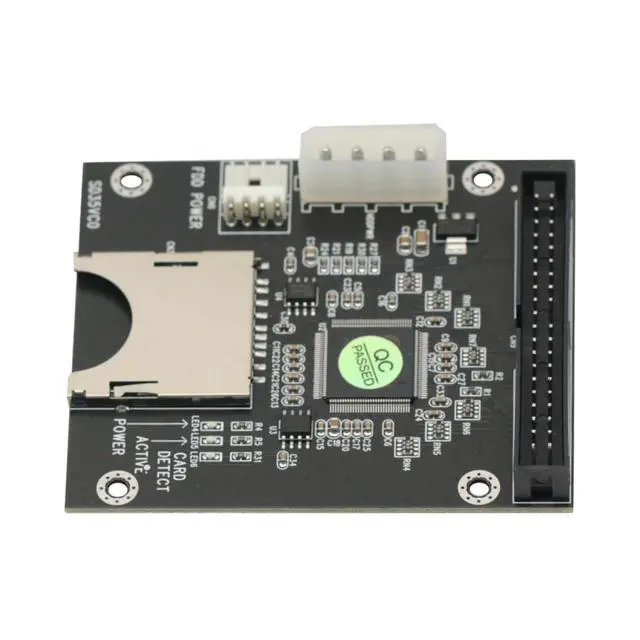

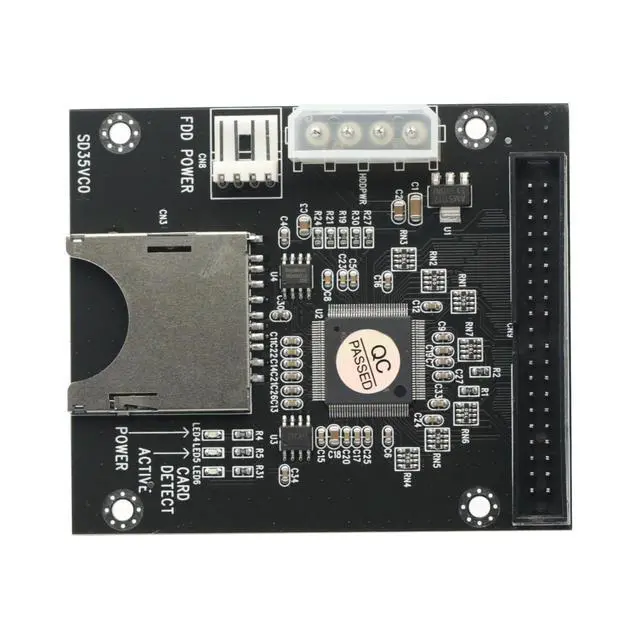

5V for SD Card Module to IDE3.5 40 Pin Disk Drive Adapter Board for Riser Card Capacity SDXD Card ATA IDE Module

Description: Converts Secure Digital Card into IDE compatible hard drives. Bootable solution for PC. 4-pin computer power supply connector. You can install For OS onto the SD Card. No hard disk noise from your workstation. Compatible with MMC system specification 2.0, Compatible SD Memory Card specification 1.0, Compatible SDHC Memory Card. Compatible with DOS, Linux, Windows 98SE, Me, 2000, XP and Vista. Compatible with Support PIO, Compatible with Multi-Word DMA and Ultra DMA data transfer mode.
Product

Specifications

: A standard IDE 3.5 'interface A standard SD socket A standard large 4Pin power connector SD-IDE conversion interface board instructions
Connection instructions: 1. POWER Power Supply Block available hard disk power supply, the card only 5V power supply, the normal operating voltage of 5V ± 0.25V. Operating current is less than 200mA. 2. IDE socket please use 80 PIN hard drive cable. The card supports PIO, Multi-word DMA and Ultra DMA Host data transfer mode; 3. SD socket supports up to 128GB SD card. Connect the power cable and IDE cable, insert SD card in the SD socket, the conversion board that is equivalent to an electronic hard disk, without having to install the driver. After installing the operating system, you can boot the operating system via an SD memory card (such as windows98, etc. ). The data transfer rate is high, roughly the same as the system hard disk speed (ATA / 133, U-DMA mode3.
Package included: 1 x SD To 3.5" 40Pin Male IDE Hard Disk Drive For HDD Converter Card Adapter
