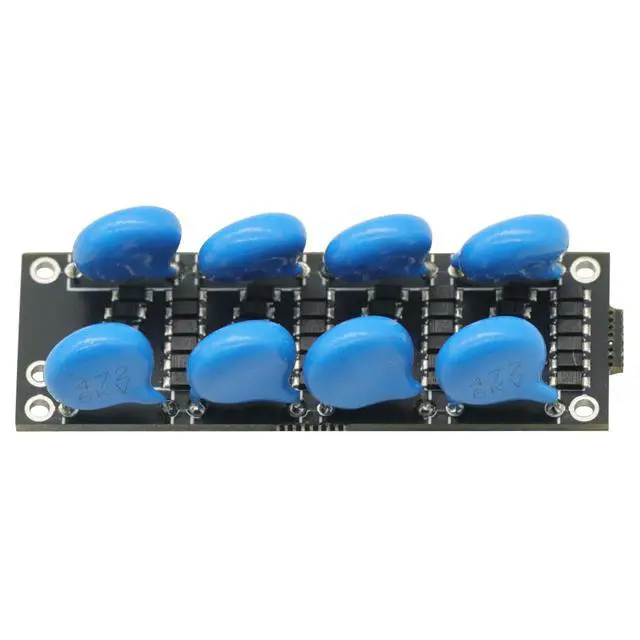

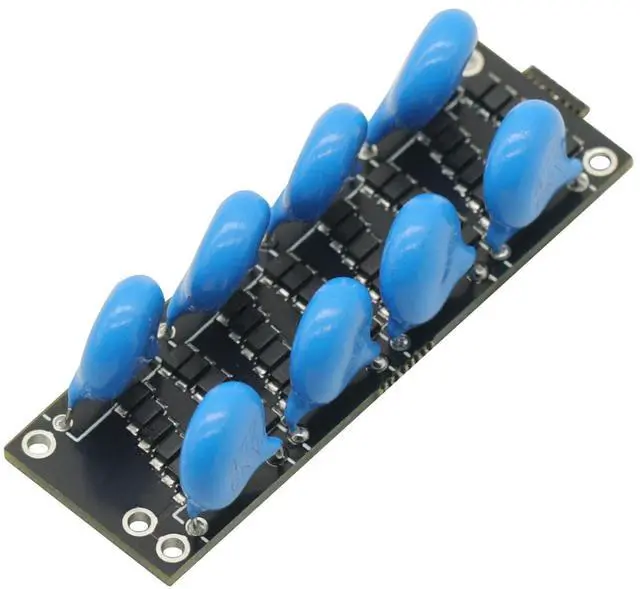

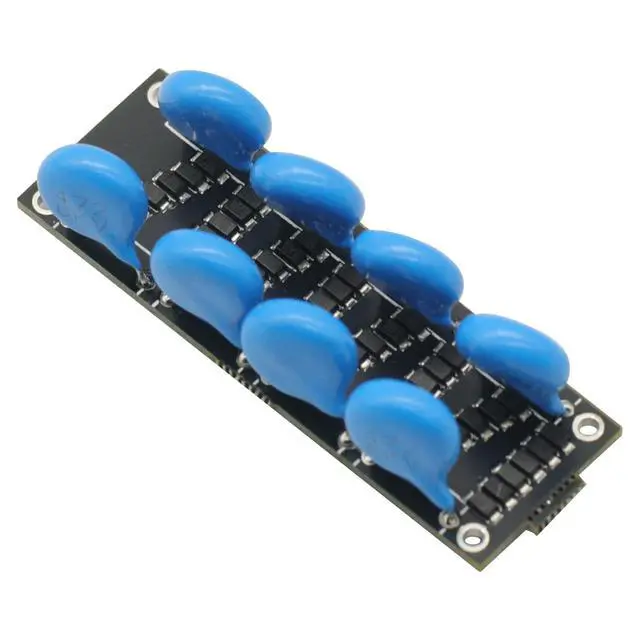

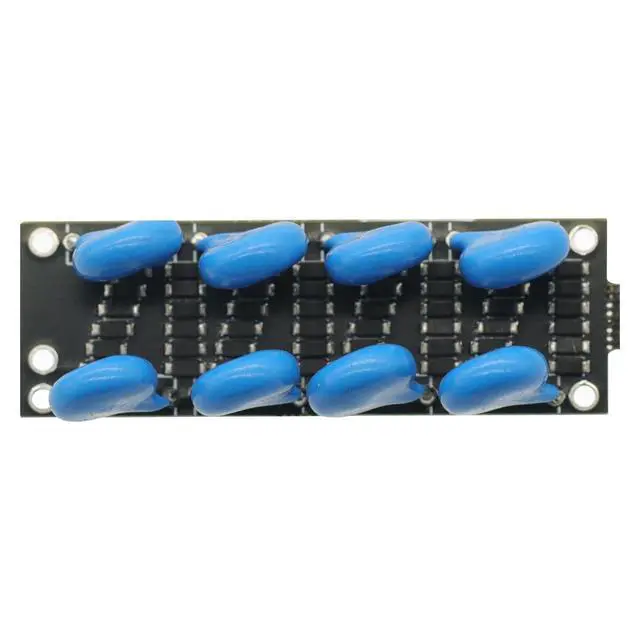

8 Times Rectifier 24000V High Voltage Multiplier Voltage Doubler Circuit Board
- This product is an accessory, not a finished product. It cannot output high voltage by itself and must be used with a high-frequency and high-voltage power supply module.; This module uses domestic high-quality capacitor diodes.; The maximum is 8 times, For example: input 2500VAC, can output 20000VDC.; It is recommended 100V~2500V/AC/50KHz input, it can work when connected, the module has reserved redundancy, and the stable output is 20000V for a long time. In addition, the 220VAC power 50Hz frequency is too low, and the direct access effect will be very unsatisfactory. It is recommended to prepare a boost module with a frequency of at least 10KHz. 110VAC power voltage also too low.(Not suggestion).
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description 8 Times Rectifier 24000V High Voltage Multiplier Voltage Doubler Circuit Board Notice: This product is an accessory, not a finished product. It cannot output high voltage by itself and must be used with a high-frequency and high-voltage power supply module. This module uses domestic high-quality capacitor diodes, the price is cheaper, but the performance is not reduced. The maximum boost is 8 times, For
example: input 2500VAC, can output 20000VDC. It is recommended 100V~2500V/AC/50KHz input, it can work when connected, the module has reserved redundancy, and the stable output is 20000V for a long time. In addition, the 220VAC power 50Hz frequency is too low, and the direct access effect will be very unsatisfactory. It is recommended to prepare a boost module with a frequency of at least 10KHz. 110VAC power voltage also too low. (Not suggestion). Suggested Input Voltage 2500V Max Input Voltage <3000V Suggested Output Voltage 20000V Max Output Voltage <24000V Instantaneous Current <1A Operating Frequency <200KHz Suggested Frequency 50KHz Overload Power <50W Onboard Capacitor 6KV/4700PF (472) Onboard Diode 6KV (1KV*6) See More
example: input 2500VAC, can output 20000VDC. It is recommended 100V~2500V/AC/50KHz input, it can work when connected, the module has reserved redundancy, and the stable output is 20000V for a long time. In addition, the 220VAC power 50Hz frequency is too low, and the direct access effect will be very unsatisfactory. It is recommended to prepare a boost module with a frequency of at least 10KHz. 110VAC power voltage also too low. (Not suggestion). Suggested Input Voltage 2500V Max Input Voltage <3000V Suggested Output Voltage 20000V Max Output Voltage <24000V Instantaneous Current <1A Operating Frequency <200KHz Suggested Frequency 50KHz Overload Power <50W Onboard Capacitor 6KV/4700PF (472) Onboard Diode 6KV (1KV*6) See More
