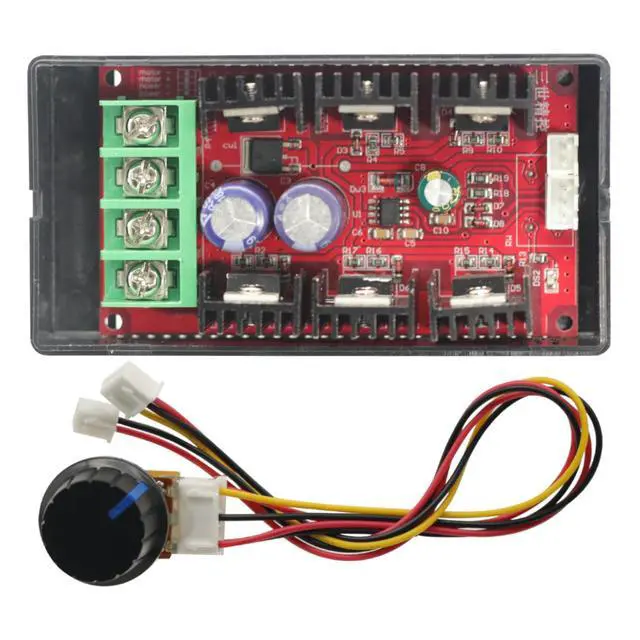

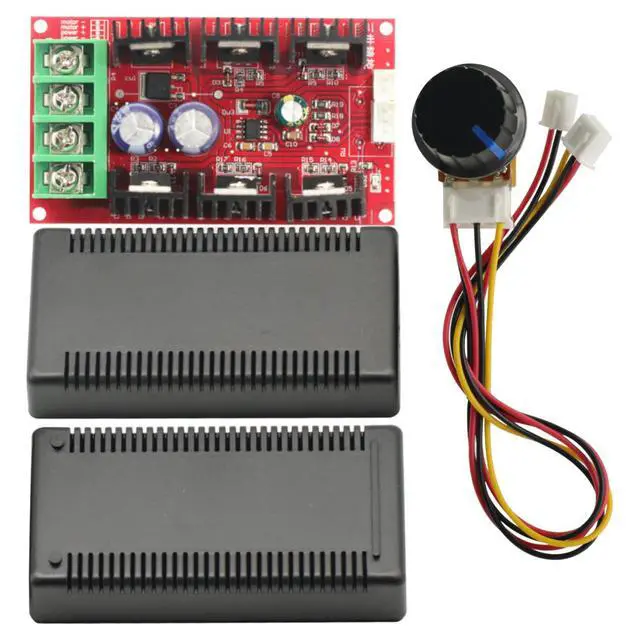

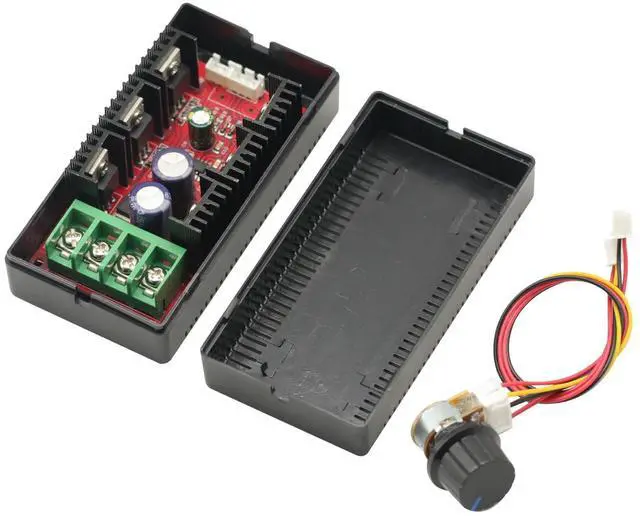

12V 24V 48V 200HZ 2000W MAX 10-50V 40A DC Motor Speed Control PWM HHO RC Controller

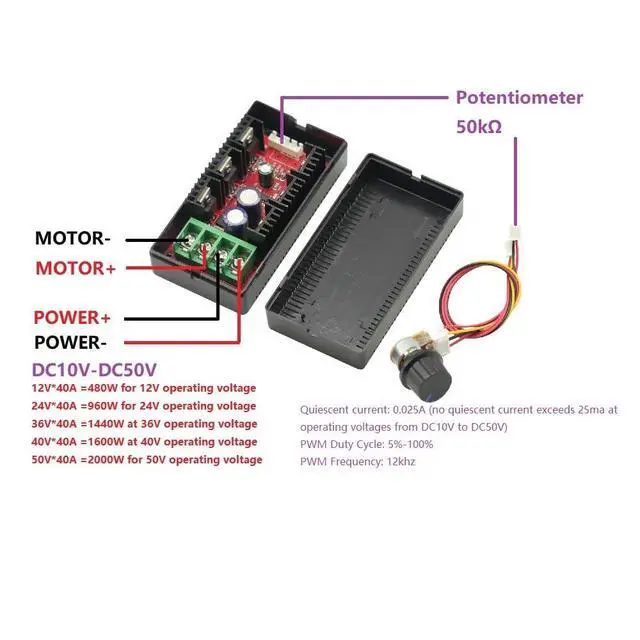

- working voltage: DC10V- DC 50V Rated current: 40A (Maximum output current) Control Motor Power: 0.01-2000W,; working voltage 12V: 12V * 40A = 480W (max) working voltage 24V: 24V * 40A = 960W (max) working voltage 36V: 36V * 40A = 1440W (max) working voltage 50V: 50V * 40A = 2000W (max); quiescent current: 0.025A PWM Regulation range: 5-100% PWN Frequency: 12khz PCB Size: 90x51mm (inch: 3.5 "x2") Case size: 105x55x40mm (inch: 4 "x2.2" x1.6 ") operating temperature: -20 ~ 40
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description 12V 24V 48V 200HZ 2000W MAX 10-50V 40A DC Motor Speed Control PWM HHO RC Controller working voltage DC10V- DC 50V Rated current 40A (Maximum output current) Control Motor Power 0.01 -2000W, working voltage 12V 12V * 40A = 480W (max) working voltage 24V 24V * 40A = 960W (max) working voltage 36V 36V * 40A = 1440W (max) working voltage 50V 50V * 40A = 2000W (max) quiescent current 0.025A PWM Regulation range 5-100% PWN Frequency 12khz PCB

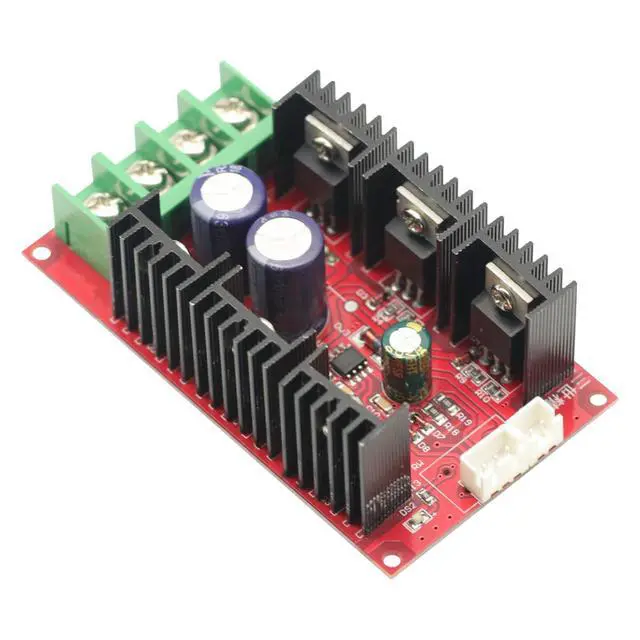

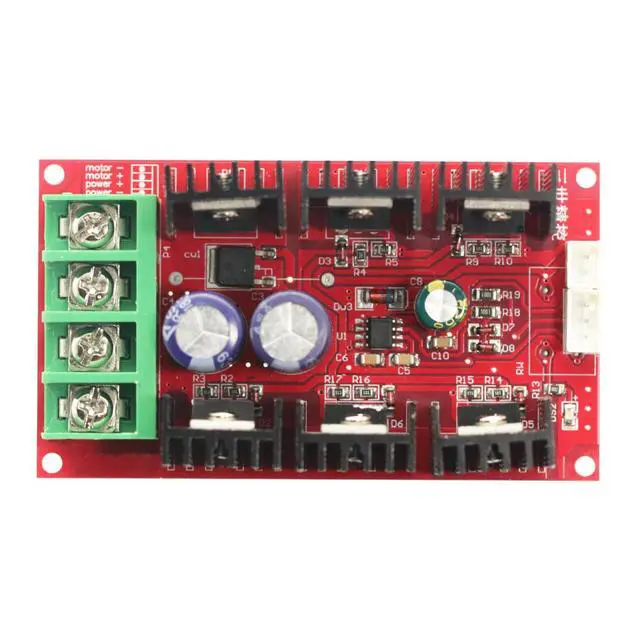

Size 90x51mm (inch: 3.5 "x2")

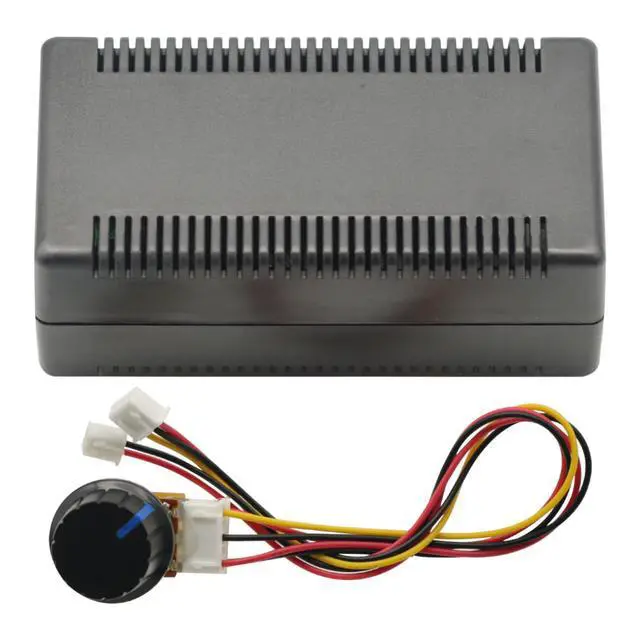

Case size 105x55x40mm (inch: 4 "x 2.2" x 1.6 ") operating temperature -20 ~ 40 Package Include 1 x MAX 10-50V 2000W 40A 12V 24V 48V DC Motor Speed Control PWM HHO RC Controller
Size 90x51mm (inch: 3.5 "x2")
Case size 105x55x40mm (inch: 4 "x 2.2" x 1.6 ") operating temperature -20 ~ 40 Package Include 1 x MAX 10-50V 2000W 40A 12V 24V 48V DC Motor Speed Control PWM HHO RC Controller
