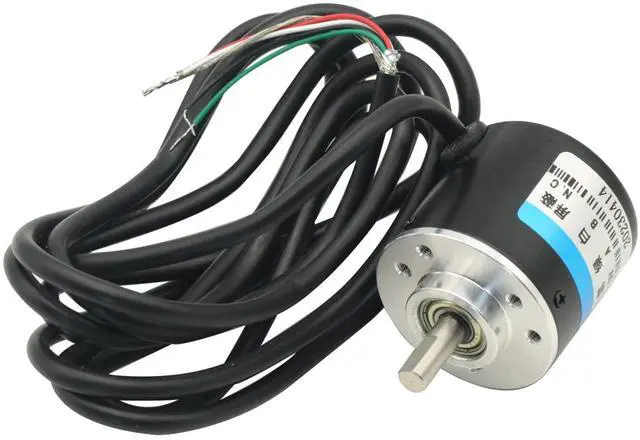

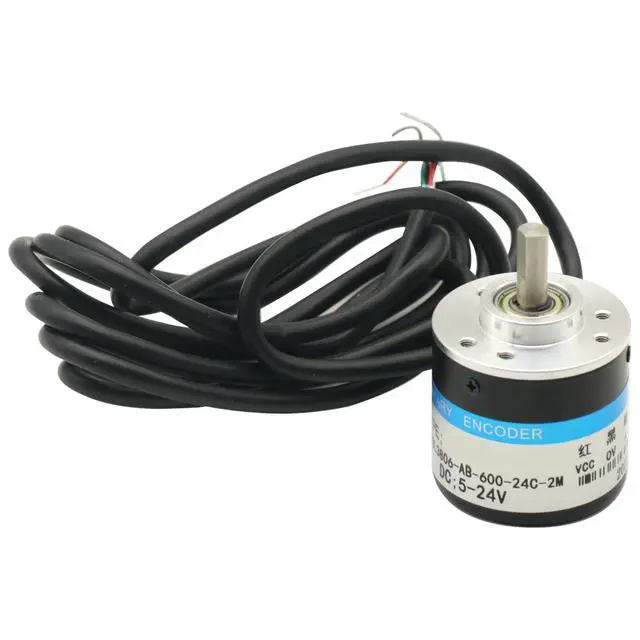

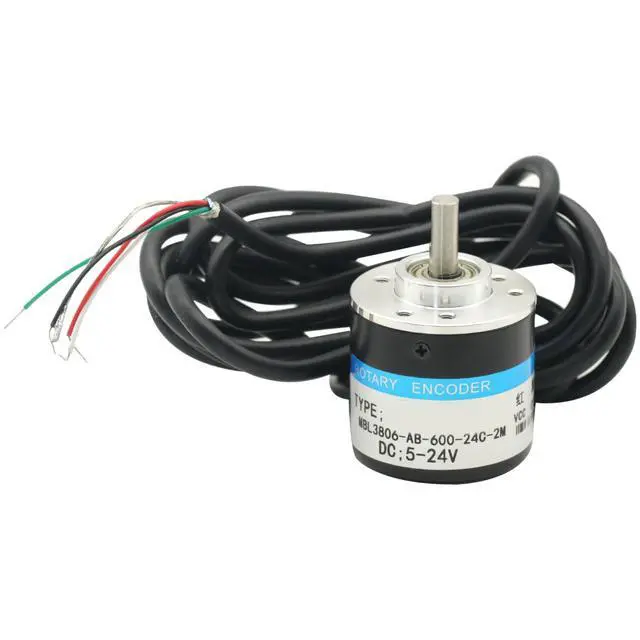

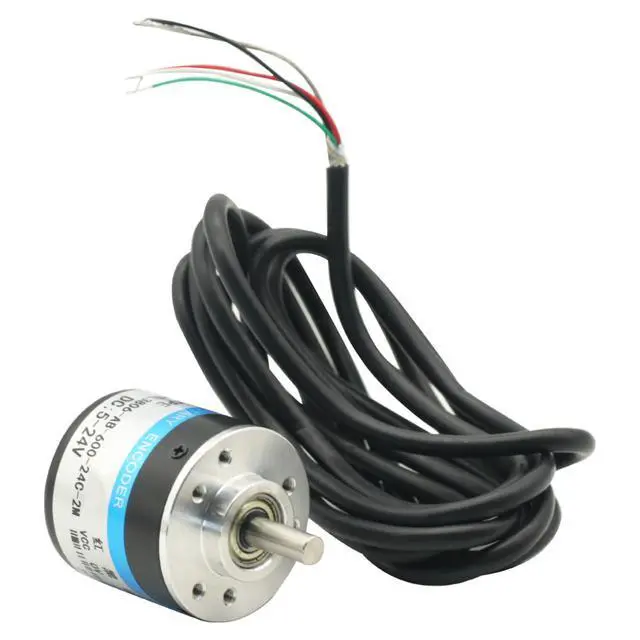

Photoelectric Incremental Rotary Encoder 600PPR AB 2 Phase DC5-24V NPN Optical Encoder
Limited time offer, ends 08/09 By LUOYIMAN
- Encoder 600 Incremental Rotary; 600 p/r (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses); Power source: DC5-24V Maximum mechanical speed: 5000 R / min Response frequency: 0-20KHz; Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description Encoder 600 Incremental Rotary 600 p/r (Single-phase 600 pulses /R, Two phase 4 frequency doubling to 2400 pulses)
Power source: DC5-24V
Shaft: 6*13mm/ 0.23 * 0.51"
Size: 38* 35.5 mm/ 1.49 * 1.39"
Output: AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter

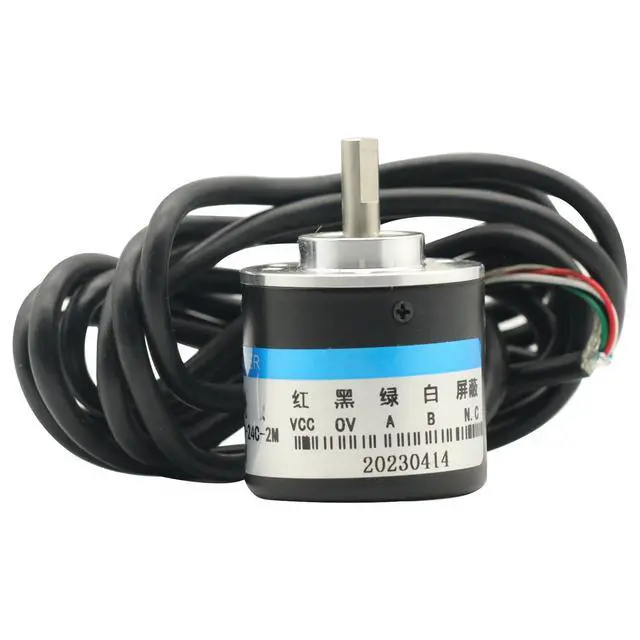

Notice: AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal connection: Green = A phase, white = B phase, red = Vcc power +, black =
V0 Application: Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement
Power source: DC5-24V
Shaft: 6*13mm/ 0.23 * 0.51"
Size: 38* 35.5 mm/ 1.49 * 1.39"
Output: AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter
Notice: AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal connection: Green = A phase, white = B phase, red = Vcc power +, black =
V0 Application: Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement
