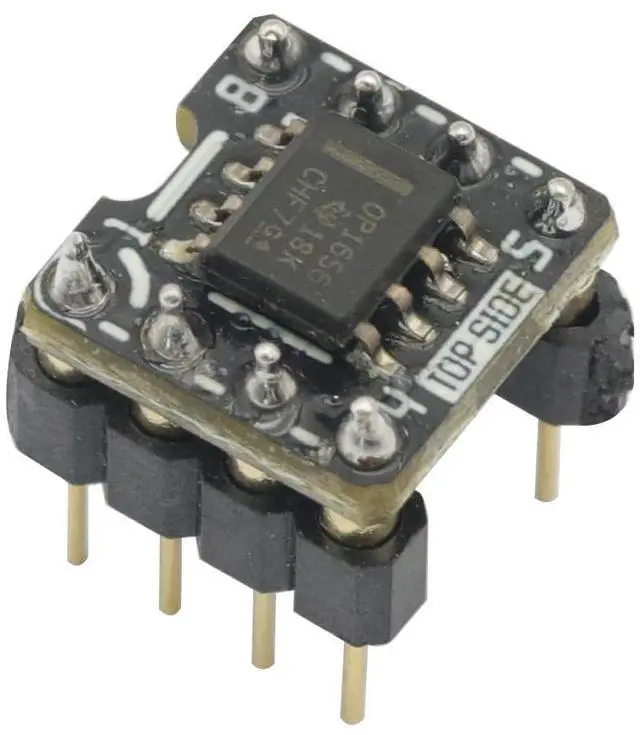

OPA1656 High Current (100mA) Ultra-Low Distortion and Low Noise Dual Operational Amplifier for Classic Op Amp DAC Headphone Operational Amplifier
- OPA1656 High Current (100mA) Ultra-low Distortion And Low Noise Dual Operational Amplifier for Classic Op Amp DAC Headphone Operational Amplifier; Wide supply range:±2.25 V to ±18 V or 4.5 V to 36 V; Quiescent current: 3.9 mA per channel; High open-loop gain: 150 dB; High output current: 100 mA
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Ultra-low noise: Voltage
noise: 2.9 nV/Hz at 10 kHz
Current noise: 6 fA/Hz at 1 kHz
Low distortion: 0.000029 % (131 dB) at 1 kHz 0.000035 % (129 dB) at 20 kHz
High open-loop gain: 150 dB
High output current: 100 mA
Low input bias current: 10 pA
Slew rate: 24 V/s
Gain bandwidth product: 53 MHz Rail-to-rail output
Wide supply range: ± 2.25 V to ±18 V or 4.5 V to 36
V Quiescent current: 3.9 mA per channel
Package Included: 1pcs
noise: 2.9 nV/Hz at 10 kHz
Current noise: 6 fA/Hz at 1 kHz
Low distortion: 0.000029 % (131 dB) at 1 kHz 0.000035 % (129 dB) at 20 kHz
High open-loop gain: 150 dB
High output current: 100 mA
Low input bias current: 10 pA
Slew rate: 24 V/s
Gain bandwidth product: 53 MHz Rail-to-rail output
Wide supply range: ± 2.25 V to ±18 V or 4.5 V to 36
V Quiescent current: 3.9 mA per channel
Package Included: 1pcs
