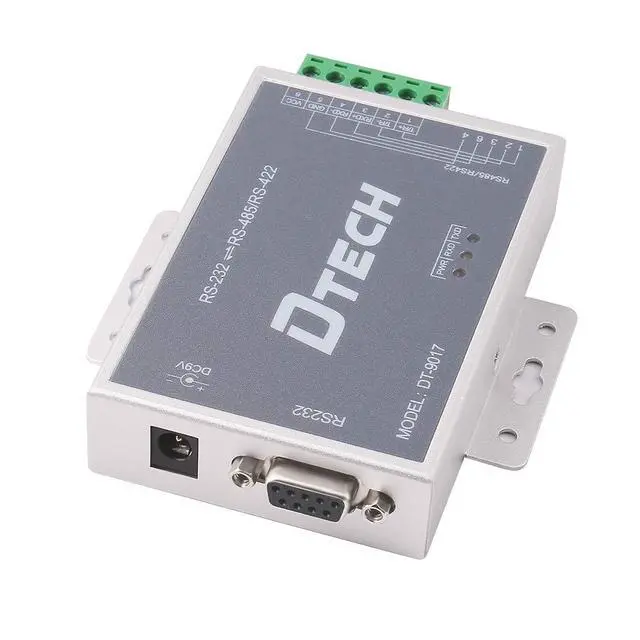

DTECH Bi-Directional Active RS232 to RS485 RS422 Serial Converter with Surge Protection 600W 15KV ESD DB9 to RJ45 Phoenix Contacts Adapter Power Supply TX RX LEDs for Long Haul Data Communication

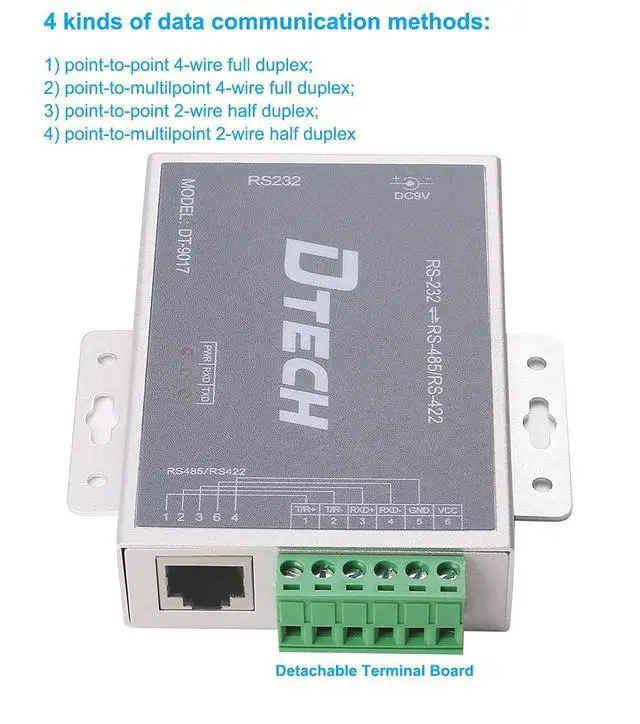

- Bidirectional RS232 to RS485 RS422 converter converts RS-232 signals to RS-485 or RS-422 signal, cable can be connected to either a terminal block or an RJ45 network port; 600W lightning surge protected for RS485/RS422 link and 15KV static protection for RS232 link, protects your value devices against high voltage; Powered serial adapter with TX, RX and power indicators enables you to easily know the status of sending or receiving data respectively (110/240V AC to 9V DC power supply included); Serial converter supports RS-485 2 wire half duplex and RS-422 4 wire full duplex communication, point to point and point to multi-point network (up to 32 drops protocol devices); no need of handshake signal, data transparent transmission; RS 232 to 485 converter with built-in data collision protection control for reliable serial Data Communication; The baud rate will be detected and adjusted automatically, up to 115200 bps
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

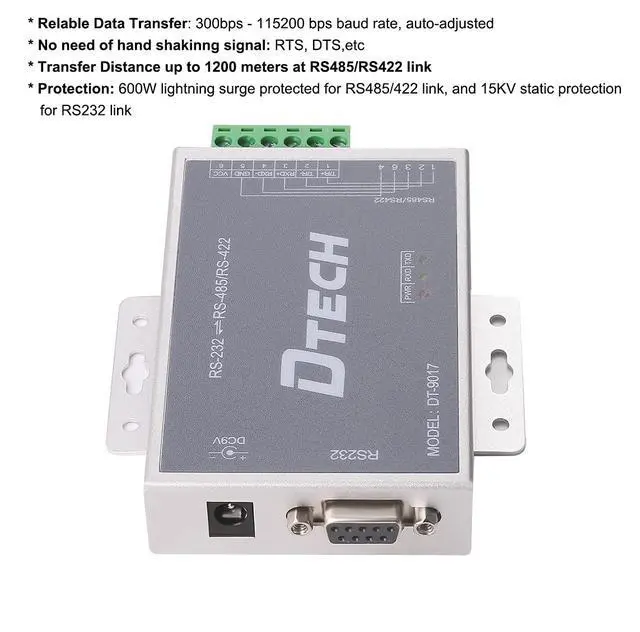

Product description Bi-Directional Active RS232 to RS485 RS422 Converter with Surge Protection 600W 15KV ESD Increases Networking Capability Active surge protected RS485 to RS232 converter allows to interface your devices using an RS232 communication link to RS485 /422 link and vice-versa. Surge Protected Interfaces Protect Equipment, High Speed Data and the Converter Built-in transient voltage suppressor (TVS) enables you to get double 600W lightning surge protection against the lightning strike over RS485 link, 15KV static protection over RS232 link effectively protect the value devices against high voltage. It is suitable for most industrial, commercial, office, lab and network application.
DCPC (Data Collision Protection Control) function detects the incoming or outgoing data and automatically switch into the send or receive mode, you don't have to worry about the data collision problems.

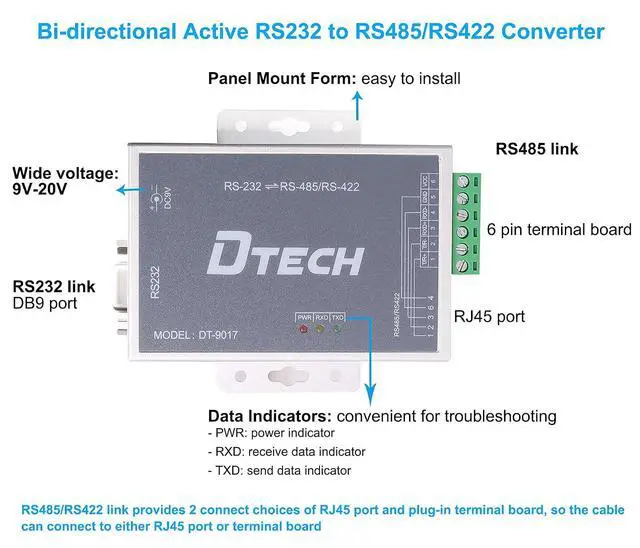

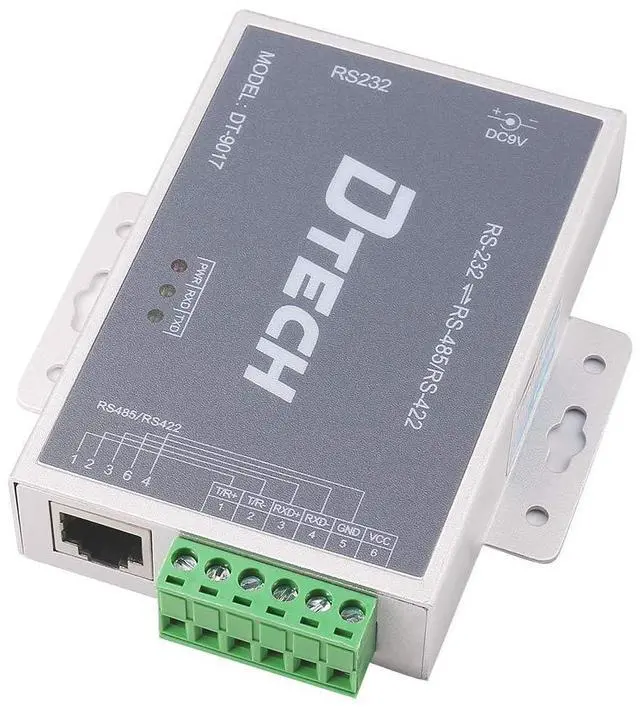

Wide Voltage: external 9V to 20VDC power supply can be used, and a 110/240V AC to 9V DC power supply adapter is included with this powered serial port converter. Rack-mounted serial adapter box Multi-bus cabling A great feature of the converter is that it provides multiple interfaces for multibus cabling: RS-232 interface is a standard DB9 female connector, and RS-485 / RS-422 side provides RJ45 port and plug-in terminal board, so the RS485 communications cable can connect to either an RJ45 network port or a terminal block. Easy Connection It only requires three lines (RX, TX and GND) to get RS232 to RS485 conversion, great for troubleshooting the serial system, fully plug and play. Applications Its a quick simple solution for most industrial automation, commercial computer network application, motor control, even tough environments to have PC in charge of controlling a given process in long haul data acquisition and control applications. Package Content 1 x RS-232 to RS-485 RS-422 Converter 1 x Power adapter 1 x 9-pin RS232 male to female cable 1 x Manual Specific EIA/TIA RS-232C, RS-485 RS232 Link D-sub 9 pin female port RS485/RS422 Link RJ45 female; 6 position phoenix contacts terminal block RS485 Signals 2-wire, D+ and D- (T/R+, T/R-, GND) RS422 Signals 4-wire, TX+, RX+, TX-, RX- RS232 Signals TXD, RXD, GND Baud Rate 300bps - 115.2 kbps Working Mode Asynchronous Half Duplex or Full Duplex Communication Communication Mode Point to Point, Point to Multipoint (loading up to 32 nodes) Transmission Distance 4000ft over RS485 link, 50ft over RS232 link Transmission Media twisted pair (>=24 AWG )
or shielded cable RS232 to RS485 Adapter RS232 to RS485 RS422 adapter RS232 to RS485 adapter with LED Isolated RS232 to RS485 adapter with LED Active RS232 to RS485 RS422 adapter Active Isolated RS232 to RS485 RS422 adapter Buying Options Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 290 4.5 out of 5 stars 290 4.7 out of 5 stars 37 4.3 out of 5 stars 17 4.7 out of 5 stars 15 4.1 out of 5 stars 19 Price no data $ 11.98 $11. 98 $ 12.98 $12. 98 $ 25.68 $25. 68 $ 29.98 $29. 98 $ 42.28 $42. 28 LED light no data no data RS232 interface DB9 Female DB9 Female DB9 Female DB9 Female DB9 Female DB9 Female RS485 interface Terminal board Terminal board Terminal board Terminal board Terminal board; RJ45 Terminal board; RJ45 RS422 interface no data Terminal board no data no data Terminal board; RJ45 Terminal board; RJ45 Voltage serial port powered serial port powered serial port powered serial port powered 9-24V power adapter 9-24V power adapter RS232 protection ±15KV ESD no data ±15KV ESD ±15KV ESD ±15KV ESD ±15KV ESD RS485/RS422 protection single lightning protection 600W no data double lightning protection 600W double lightning protection 600W double lightning protection 600W double lightning protection 600W Optical isolation voltage no data no data no data 2500Vrms 500DC continuity no data 2500Vrms 500DC continuity See More
DCPC (Data Collision Protection Control) function detects the incoming or outgoing data and automatically switch into the send or receive mode, you don't have to worry about the data collision problems.
Wide Voltage: external 9V to 20VDC power supply can be used, and a 110/240V AC to 9V DC power supply adapter is included with this powered serial port converter. Rack-mounted serial adapter box Multi-bus cabling A great feature of the converter is that it provides multiple interfaces for multibus cabling: RS-232 interface is a standard DB9 female connector, and RS-485 / RS-422 side provides RJ45 port and plug-in terminal board, so the RS485 communications cable can connect to either an RJ45 network port or a terminal block. Easy Connection It only requires three lines (RX, TX and GND) to get RS232 to RS485 conversion, great for troubleshooting the serial system, fully plug and play. Applications Its a quick simple solution for most industrial automation, commercial computer network application, motor control, even tough environments to have PC in charge of controlling a given process in long haul data acquisition and control applications. Package Content 1 x RS-232 to RS-485 RS-422 Converter 1 x Power adapter 1 x 9-pin RS232 male to female cable 1 x Manual Specific EIA/TIA RS-232C, RS-485 RS232 Link D-sub 9 pin female port RS485/RS422 Link RJ45 female; 6 position phoenix contacts terminal block RS485 Signals 2-wire, D+ and D- (T/R+, T/R-, GND) RS422 Signals 4-wire, TX+, RX+, TX-, RX- RS232 Signals TXD, RXD, GND Baud Rate 300bps - 115.2 kbps Working Mode Asynchronous Half Duplex or Full Duplex Communication Communication Mode Point to Point, Point to Multipoint (loading up to 32 nodes) Transmission Distance 4000ft over RS485 link, 50ft over RS232 link Transmission Media twisted pair (>=24 AWG )
or shielded cable RS232 to RS485 Adapter RS232 to RS485 RS422 adapter RS232 to RS485 adapter with LED Isolated RS232 to RS485 adapter with LED Active RS232 to RS485 RS422 adapter Active Isolated RS232 to RS485 RS422 adapter Buying Options Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 290 4.5 out of 5 stars 290 4.7 out of 5 stars 37 4.3 out of 5 stars 17 4.7 out of 5 stars 15 4.1 out of 5 stars 19 Price no data $ 11.98 $11. 98 $ 12.98 $12. 98 $ 25.68 $25. 68 $ 29.98 $29. 98 $ 42.28 $42. 28 LED light no data no data RS232 interface DB9 Female DB9 Female DB9 Female DB9 Female DB9 Female DB9 Female RS485 interface Terminal board Terminal board Terminal board Terminal board Terminal board; RJ45 Terminal board; RJ45 RS422 interface no data Terminal board no data no data Terminal board; RJ45 Terminal board; RJ45 Voltage serial port powered serial port powered serial port powered serial port powered 9-24V power adapter 9-24V power adapter RS232 protection ±15KV ESD no data ±15KV ESD ±15KV ESD ±15KV ESD ±15KV ESD RS485/RS422 protection single lightning protection 600W no data double lightning protection 600W double lightning protection 600W double lightning protection 600W double lightning protection 600W Optical isolation voltage no data no data no data 2500Vrms 500DC continuity no data 2500Vrms 500DC continuity See More
