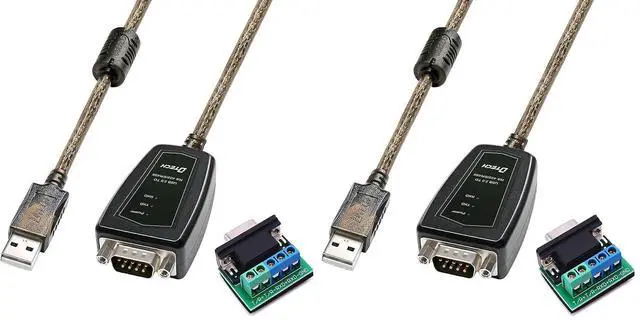

DTECH USB to RS485 Adapter RS422 Cable Serial Port with CP2102 Chip Terminal Board LED Lights Ferrite Core for Windows 11 10 8 7 XP Mac (1.5 Feet) (Pack of 2)

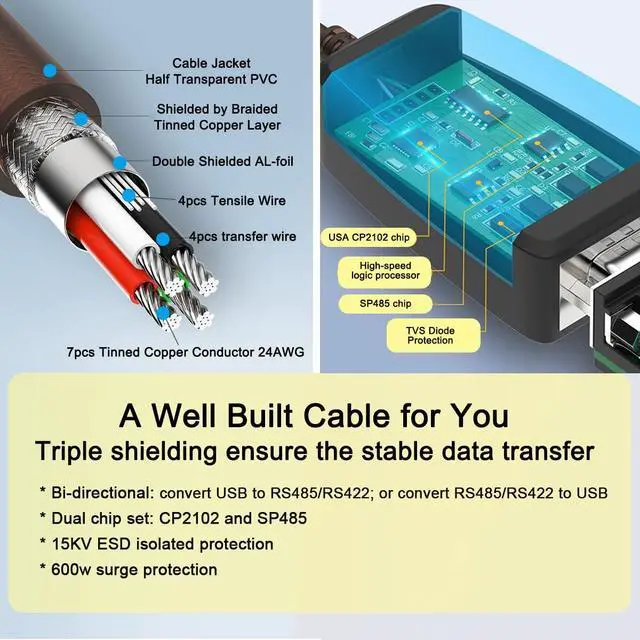

- The information below is per-pack only; CP2102 USB to RS485 converter easily lets you connect RS-485 or RS-422 device directly to a Laptop PC computer via USB port (pls be noted it's not a RS232 serial cable); USB to RS422 adapter is ideal for industrial environment -provides 600w surge protection and 15KV ESD isolated protection on signal pins to protect costly and often sensitive control equipment against electrical damage; USB to RS485 cable is with high performance quality processor chip CP2102N and I/O auto conversion circuitry which makes RS 485 to USB convertor one of the most reliable dongle on the market; 1.5 ft USB RS-485 protocol serial adapter cable supports windows 11 10 8 7, Mac and more; plug-and-play, No power supply needed.; There are no IRQ and COM port conflicts, since the port do not require any additional IRQ, DMA, memory as resources on the system; 2 wire RS485 for Half duplex and 4 wire RS422 for Full duplex data communication
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

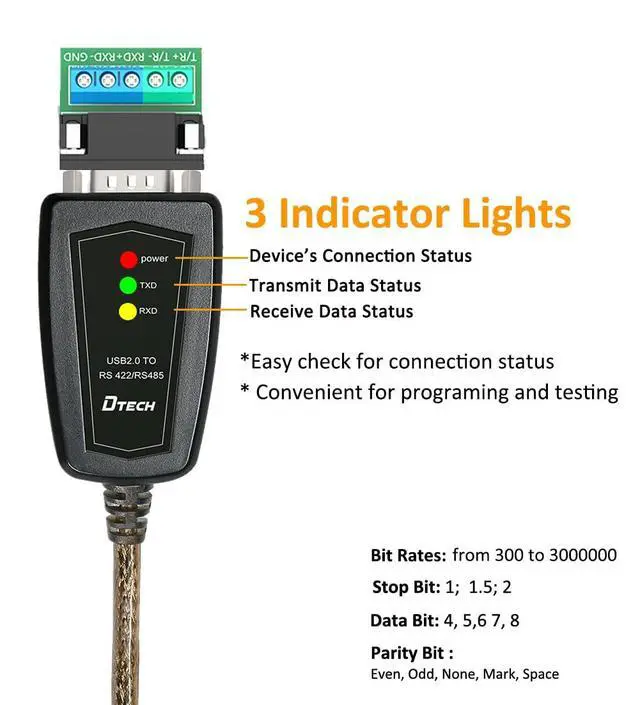

USB RS485 cable devices with CP2102 chip allows you to connect RS422 or RS485 serial devices to a computer via USB connector. USB to RS 422 / 485 serial adaptor cord is a high quality industrial USB plug and play dongle designed to instantly add a RS485/RS422 port to your PC or Mac system via USB interface. It is the ideal solution for connecting industrial devices such as laboratory testing and measuring equipment, monitoring devices, material handling equipment, and many more devices where mission critical applications are required. Specific RS422/RS485 TIA/EIA Standard USB 2.0; compatible USB 1.1 Indication LED's for Power, TX and RX No IRQs, DMA or required; No IRQ Conflicts Automatic send data control.
Auto detection of data speed; Zero delay automatic transmission Automatic hand-shaking protocol supported Built-in static and surge protection up to 600W; 15KV ESD protection multiple terminals up to 256 RS-485 or RS-422 devices
Distance: up to 1200 meters for RS-485/422 end
Bit Rates: 75; 110; 134; 150; 300; 600; 1200; 2400; 4800; 7200; 9600; 14400; 19200; 38400; 57600; 115200; 128000 per second
Data Bit: 4; 5; 6; 7; 8
Stop Bit: 1; 1.5; 2
Parity Bit: Even; Odd; None; Mark; Space
Flow control: hardware; Xon/Xoff; none

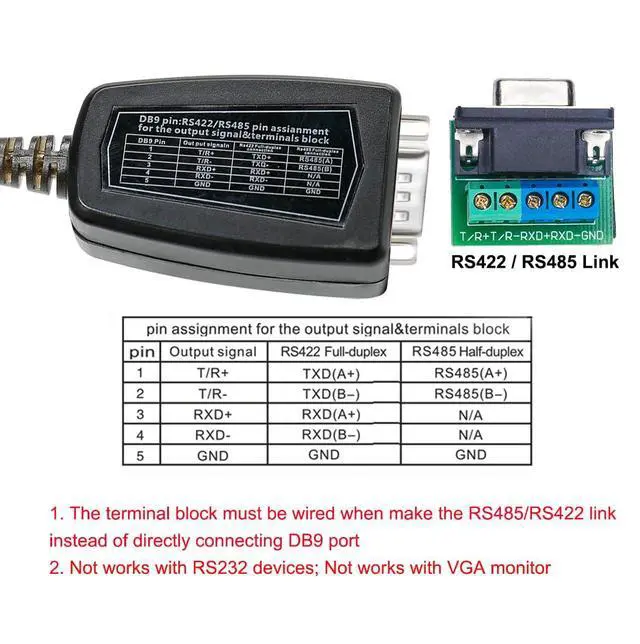

Working modes: asynchronous; point-to-point or point-to-multipoint; 2-line RS485 half duplex and 4-line RS422 full duplex.

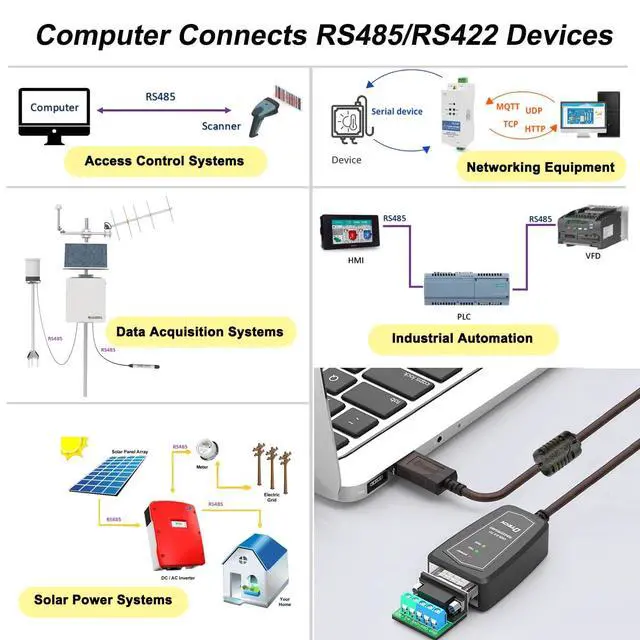

Application: Factory automation system, Distributed control system, Other 485/422 serial device wireless network, LED INFO display equipments, PLC control and management, SCADA, measuring instrument and monitoring system, CNC management, Medical treatment/medication automation, Building automation, Check on work attendance/ Human resource management. Whats Included 1 x USB to RS-422 RS-485 Adapter Cable 1.5 ft 1x 5 Position Terminal Block 1 x CD driver
Auto detection of data speed; Zero delay automatic transmission Automatic hand-shaking protocol supported Built-in static and surge protection up to 600W; 15KV ESD protection multiple terminals up to 256 RS-485 or RS-422 devices
Distance: up to 1200 meters for RS-485/422 end
Bit Rates: 75; 110; 134; 150; 300; 600; 1200; 2400; 4800; 7200; 9600; 14400; 19200; 38400; 57600; 115200; 128000 per second
Data Bit: 4; 5; 6; 7; 8
Stop Bit: 1; 1.5; 2
Parity Bit: Even; Odd; None; Mark; Space
Flow control: hardware; Xon/Xoff; none
Working modes: asynchronous; point-to-point or point-to-multipoint; 2-line RS485 half duplex and 4-line RS422 full duplex.
Application: Factory automation system, Distributed control system, Other 485/422 serial device wireless network, LED INFO display equipments, PLC control and management, SCADA, measuring instrument and monitoring system, CNC management, Medical treatment/medication automation, Building automation, Check on work attendance/ Human resource management. Whats Included 1 x USB to RS-422 RS-485 Adapter Cable 1.5 ft 1x 5 Position Terminal Block 1 x CD driver
