Plugable Thunderbolt 3 to Dual DisplayPort Output Display Adapter for Thunderbolt 3 Windows Systems (Windows Only, Not Mac Compatible, Supports Two 4K 60Hz Monitors Or One 5K).
TWO 4K DISPLAYS - Add two DisplayPort displays up to 4K 60Hz to select Windows Thunderbolt 3 systems at native GPU performance. Supports display modes such as 3840x2160 (4K) and 1920x1080 (1080p)

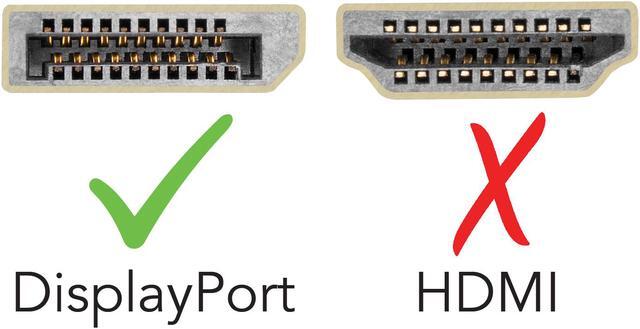

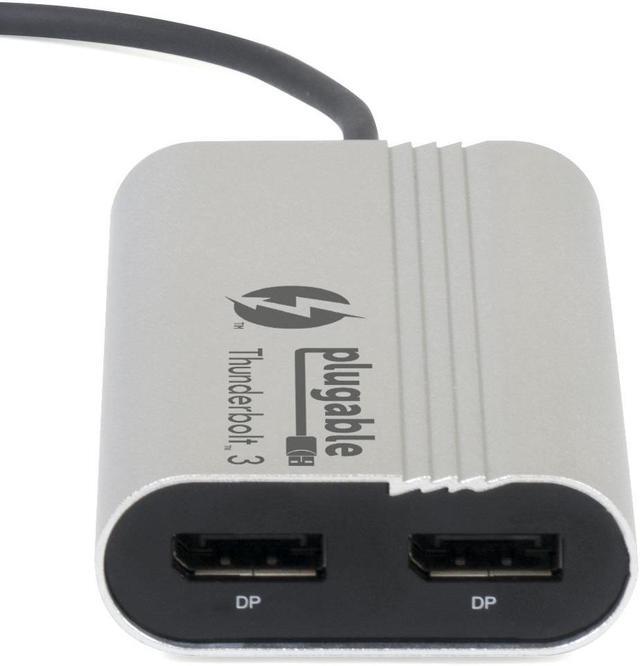

DISPLAYPORT ONLY - Adapter video output ports are DisplayPort only. Note that HDMI, DVI and VGA displays are not supported. If HDMI outputs are required, please search for TBT3-HDMI2X-83
WINDOWS COMPATIBILITY - Compatible with select Windows Thunderbolt 3 systems. Not all Windows systems support dual video output. Please see important compatibility details below prior to purchase
APPLE COMPATIBILITY - Not compatible with Apple Thunderbolt 3 systems. For an Apple compatible version, please search for our TBT3-DP2X-83 adapter
2 YEAR WARRANTY - We love our Plugable products, and hope you will too. All of our products are backed with a 2-year limited parts and labor warranty as well as Seattle-based email support
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

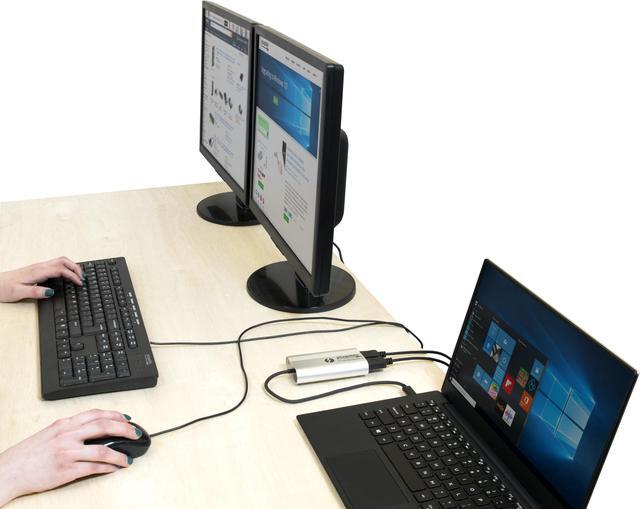

Leveraging 40Gbps of bandwidth made possible by Intel's Thunderbolt 3 technology, Plugable's Dual DisplayPort Adapter enables users to connect two additional displays with native graphics performance. Supports up to two additional 4K displays (or a single 5k display) with 60Hz refresh rates. Thunderbolt 3-attached displays tap directly into the power of your system's GPU to enable high-performance, low-latency output without utilizing additional system resources. Not all Thunderbolt 3 systems are compatible with dual display graphics adapters.
Compatible Systems For both graphics adapter outputs to function, system manufacturer must have routed two DisplayPort lines to the Thunderbolt 3 port(s). This is an engineering decision made by your system manufacturer. Currently only Dell and HP Thunderbolt 3 systems meet this requirement but more compatible Thunderbolt 3 systems are expected in the future. Tested/validated with: Dell XPS 13 9350 & XPS 15 9550 HP Elite X2 1012 G1 Requires updated system BIOS, Thunderbolt 3 drivers, and Thunderbolt 3 firmware installed on host system.
Non-compatible Systems Will not function when attached to a non-Thunderbolt 3 USB-C port As mentioned above, most current non-Dell, non-HP Thunderbolt 3 systems are not compatible due to a limited number of DisplayPort lines routed to the Thunderbolt 3 port.
Usage with non-DisplayPort Displays Conversion to HDMI/DVI /VGA can only be done with active adapters (not inexpensive DP++ passive adapters).

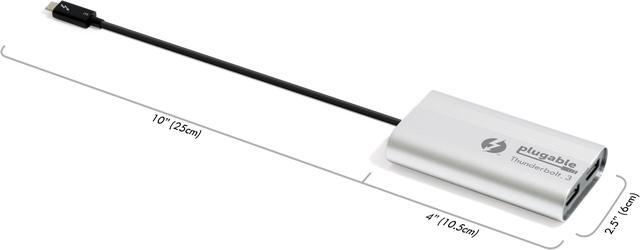

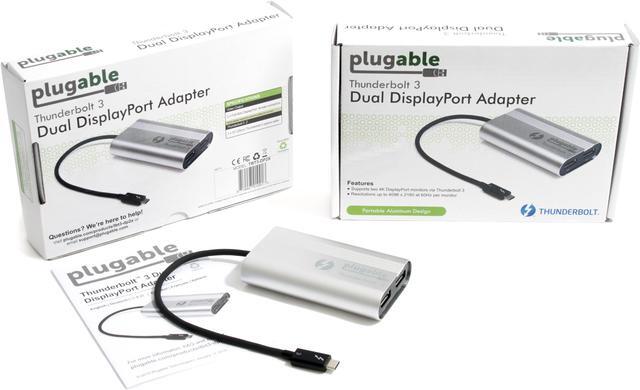

In the Box 1x Plugable TBT3-DP2X w/ built-in 10 inch (25 cm) Thunderbolt 3 USB-C cable and quick-install guide.
Learn more about the Plugable Technologies TBT3-DP2X
Model
Brand
Plugable Technologies
Model
TBT3-DP2X
Color
Black & Grey
Details
Thunderbolt 3
Yes
Additional Information
Date First Available
November 19, 2018
Customer Reviews of the Plugable Technologies TBT3-DP2X
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
