DT206C 660ft Network VGA Over IP Audio Splitter Extender By Ethernet Cat5e Cat6 Cable 1080P VGA LAN Video Transmitter Receiver

Description:

ZY-DT206C, VGA extender provides extension of VGA signals long distances over a single CAT5/5e/6/ cable, it supports high resolution up to 1920x1080@60Hz ,VGA loop out and external stereo audio signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

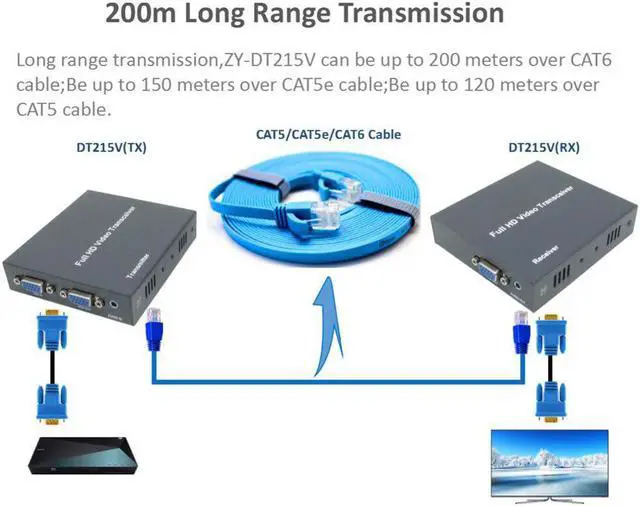

Transmission Distance:up to 200m/660ft over a single CAT5e CAT6 cable;

Video resolution: up to 1920*1080@60Hz;

Audio sampling rate: 32kHz, 44.1kHz and 48kHz ;

Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

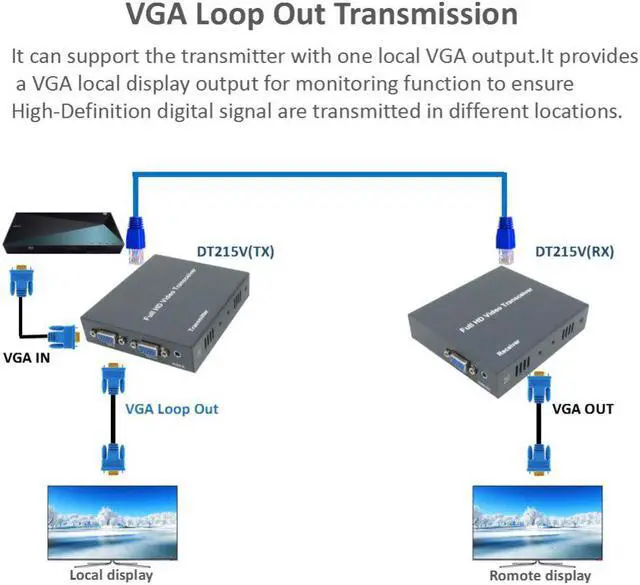

VGA Loop Out function:The transmitter with one local VGA loop out;

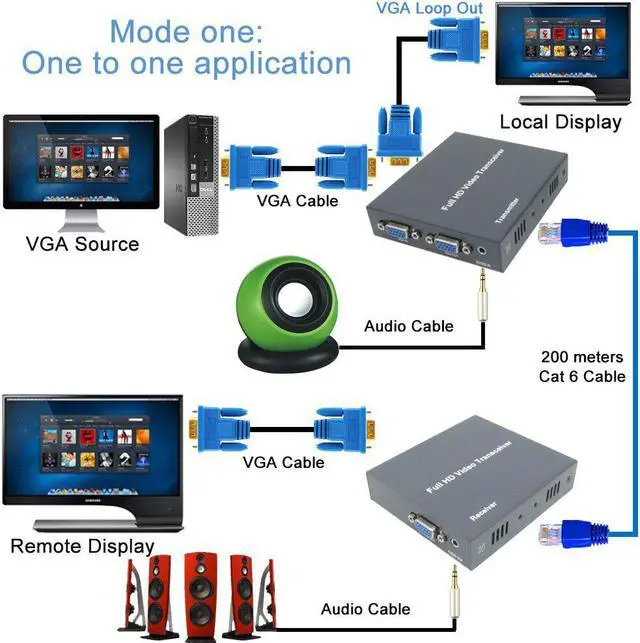

Male to male: one TX to one RX applicataion;

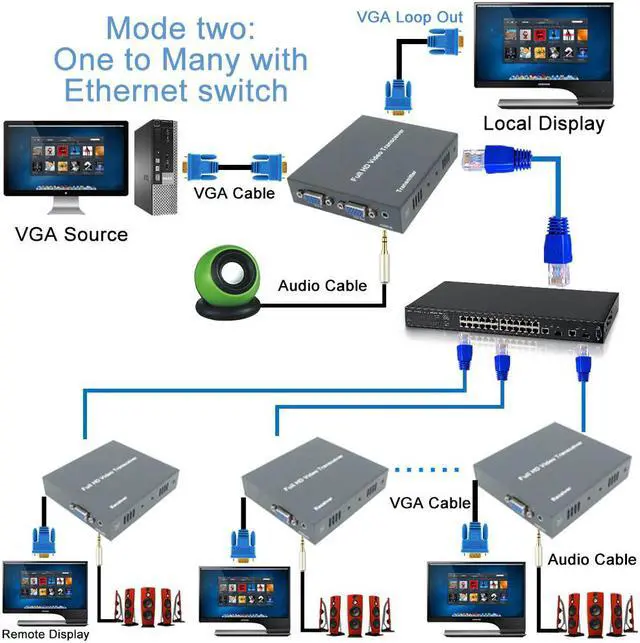

Male to female:TCP/IP,one TX to N RX(Max:253 pcs RX) application with Ethernet switch/Router;

IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps;

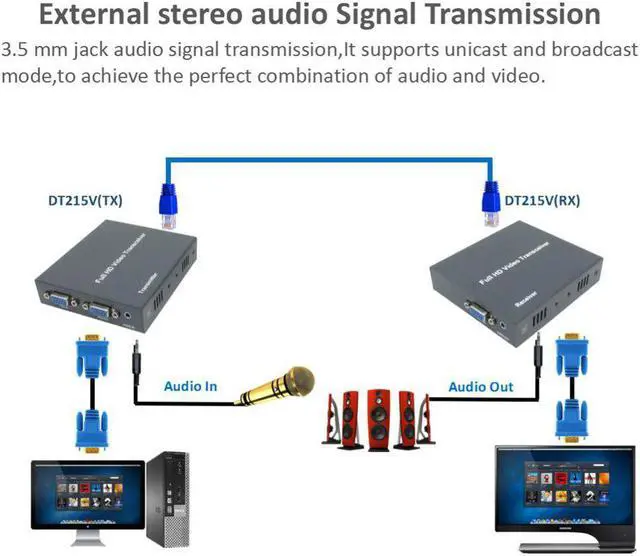

External stereo audio:3.5 mm audio transmission;

Video standard:compliance with VGA standard;

High Compatible function : match many kinds of display devices;

Built-in automatic adjustment system: make the image smooth, clear and stable;

Simple to install, plug and play

Specifications:

Video

Standards----------VGA

Maximum pixel clock------380MHz
