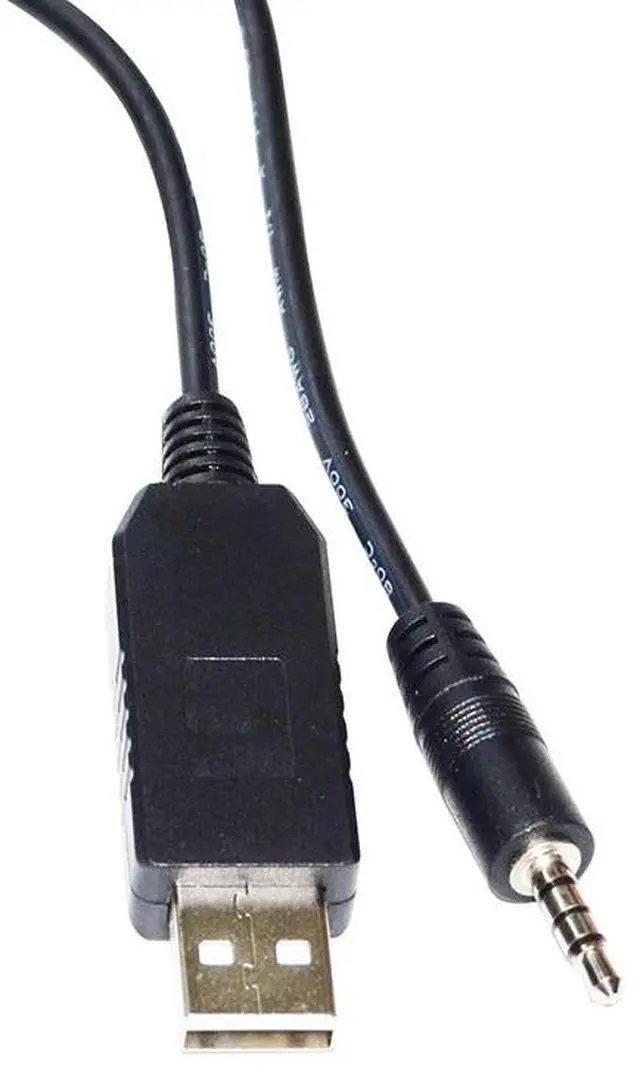

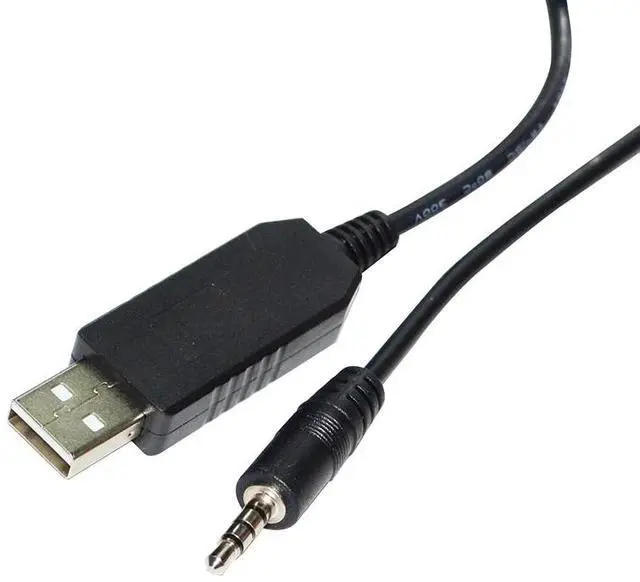

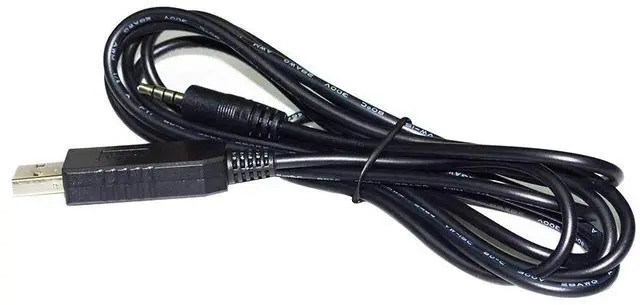

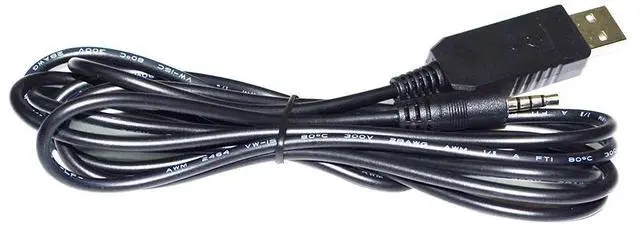

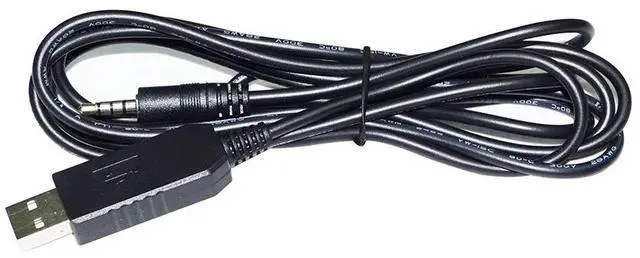

INDUSTRIAL FTDI FT232RL CHIP USB TO UART TTL-232R-3V3 TRRS 4 WAY 3.5MM JACK CONNECTOR USB FTDI INTERFACE OASIS PROGRAMMING CABLE 0.8M Length(1.8M Length)

INDUSTRIAL FTDI FT232RL CHIP USB TO UART TTL-232R-3V3 TRRS 4 WAY 3.5MM JACK CONNECTOR USB FTDI INTERFACE OASIS PROGRAMMING CABLE
The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD
Is
FT232RQ USB to Serial UART interface IC device which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.
Each TTL-232R cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The FT232R datasheet, DS_FT232R, is
available at http: //www. ftdichip. com. The other end of the cable comes with a selection of different connectors supporting various applications
Operating Systems:
Windows
10/8/ 8.1 /7/Windows Server 2008/2003/Vista/XP/98
Linux
Mac
OS X/9/8
Windows
CE. NET (Version 4.2 and greater)
Android
32 and 64 bit operating systems are both supported.
FTDI DRIVER DOWNLOADING:
https: //ftdichip. com/drivers/vcp-drivers/
INSTALLATION GUIDELINE:
https: //ftdichip. com/document/installation-guides/
Package Contents:
1 X FTDI USB to 4 Way 3.5MM AJ Cable
Length: 1.8M /6FT(Approx. )
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
If you have special requirements, such as cable length, wire gauges and pinouts, please consult to me online or leave me a message.
If you receive the goods, and have any dissatisfaction or need assistance, please feel free to contact me or leave me a message.
