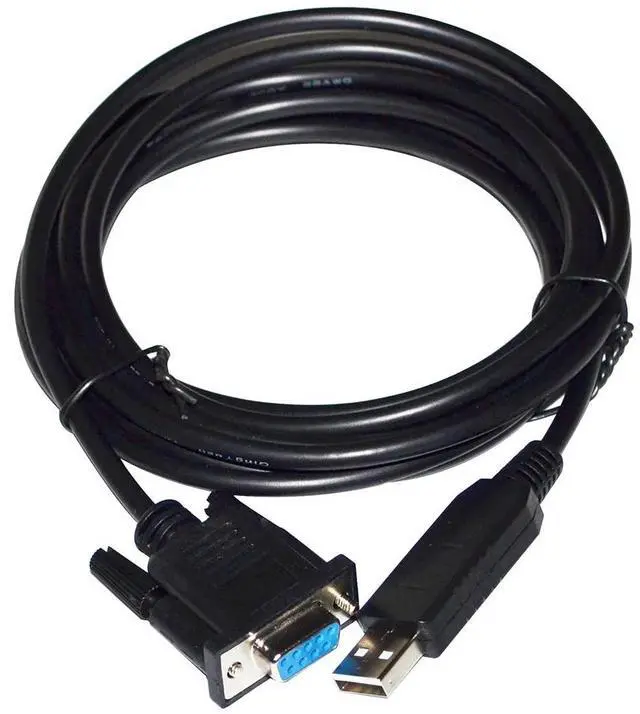

FTDI FT232RL CHIP USB TO DB9 FEMALE RS232 SERIAL CONVERTER NULL MODEM CABLE CROSS WIRINGS 2RXD 3TXD OR 2TXD 3RXD CROSSOVER WIRE (PINOUT 2) 5M Length(3.6M Length)

INDUSTRIAL FTDI FT232RL CHIP USB TO DB9 FEMALE ADAPTER USB TO RS-232C SERIAL CONVERTER NULL MODEM CABLE CROSS WIRINGS 2TXD 3RXD OR 2RXD 3TXD
LAPTOP PC WITH USB TO DESKTOP PC WITH DB9 COM PORT NULL MODEM CABLE
PINOUT 1: DB9
FEMALE: 1-DCD, 2-TXD, 3-RXD, 4-DSR, 5-GND, 6-DTR, 7-CTS, 8-RTS, 9-RI
PINOUT 2: DB9
FEMALE: 1-DCD, 2-RXD, 3-TXD, 4-DTR, 5-GND, 6-DSR, 7-RTS, 8-CTS, 9-RI
Operating Systems:
Windows
10/8/ 8.1 /7/Windows Server 2008/2003/Vista/XP/98
Linux
Mac
OS X/9/8
Windows
CE. NET (Version 4.2 and greater)
Android
32 and 64 bit operating systems are both supported.
FTDI DRIVER DOWNLOADING:
HTTPS: //WWW. FTDICHIP. COM/DRIVERS/VCP.
HTMINSTALLATION GUIDELINE:
HTTP: //WWW. FTDICHIP. COM/SUPPORT/DOCUMENTS/INSTALLGUIDES. HTM
Package Contents:
1 X FTDI USB to DB9NULL MODEM
Cable
Length: 1.8M /6FT, 3.6M /12FT(Approx. )
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
If you have special requirements, such as cable length, wire gauges and pinouts, please consult to me online or leave me a message.
If you receive the goods, and have any dissatisfaction or need assistance, please feel free to contact me or leave me a message.
usb to rs232 cable driver support, ftdi 232 cable, usb to serial rs232 converter cable, ftdi usb converter cable, usb to serial cable, ftdi usb uart, usb to db9 null modem cable, CROSSOVERED DB9 NULL MODEM CABLE, connection db9 rs232, db9 rs232 cable, db9 9 pin female adpator, db9 female connector, db9 terminal
