VGA DB15 Solderless Connector 3+9 D-SUB 15 Pin VGA 3 Row Breakout Board Adaptor with Case+Screwdriver(2-Pack Fmale)

Features:

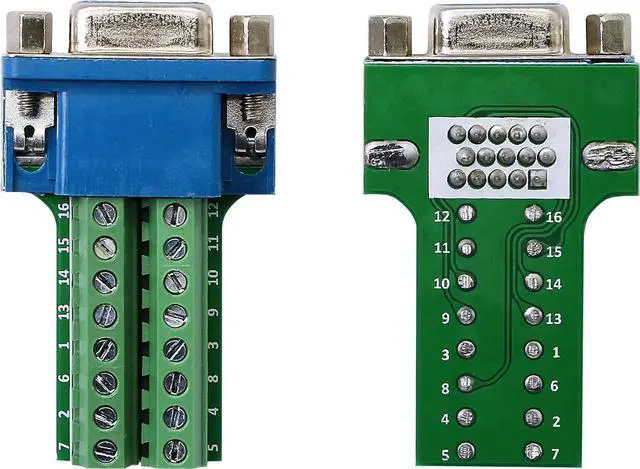

1. this VGA DB15Pin 3 Row breakout adapter is solderless. No soldering or crimping required.

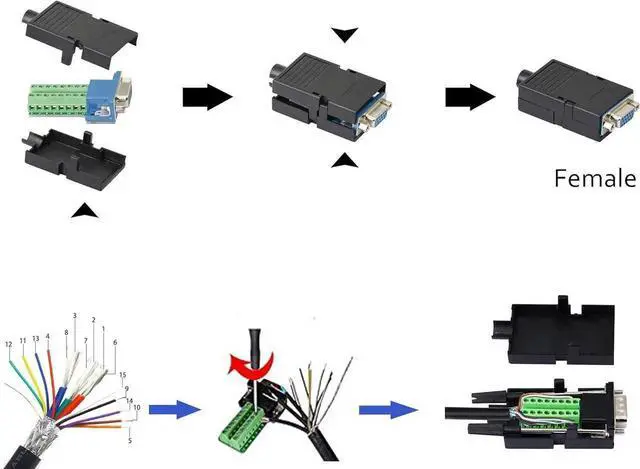

2. Equipped with a special screwdriver to open the case of the adapter and install the vga cable core on the PCB.

3. The wire board is printed with wire number which is convenient for quick wiring.

4. this VGA 15Pin breakout adapter is connected type

VGA 3+9: it can be used for automatic control equipment, industrial control equipment, cash register, tax control machine, computer, HDTV, LCD monitor, etc

VGA Cable type 3+9:

1--Connect red thick core, 6--connect red thick core shield, 2-- connect green thick core, 7---connect green thick core shield, 3-- connect blue thick Core, 8--shield connected to the blue thick core;

The outermost layer of the VGA cable is the shield layer that is screwed together to connect to the code 16.

The remaining 9 cores are respectively symmetrically connected to the two-end color to the number: 4.5. 9.10. 11.12. 13. 14.15.

For example, the black core with one end is connected to the number 12 and the other end number 12 is also required to be connected with a thin black core.

Package included:

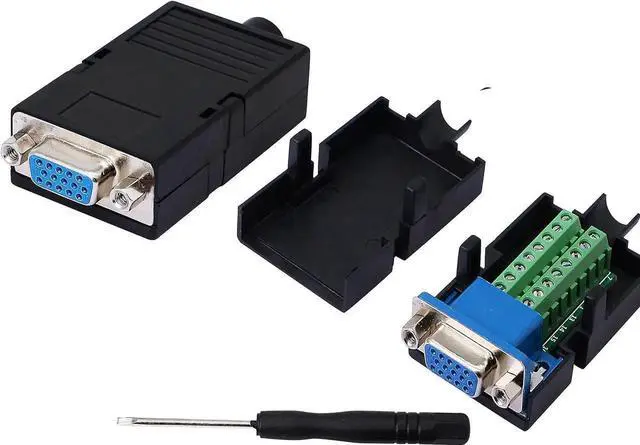

2pcs VGA 15 pin female Solderless adapter with case and 1pcs Screwdriver.
