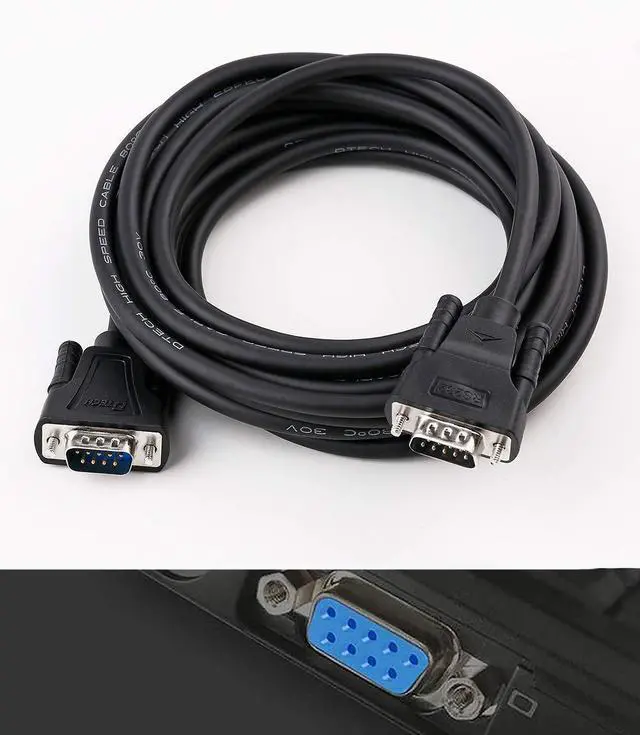

15ft DB9 Serial Cable COM Port Male to Male RS232 Straight Through 9 Pin Data Cord

Transfer data between two devices using a serial communication protocol

If your equipment require all 9 pins (straight through), take this RS232 male to male cable wherever you need it, It allows you to add your peripherals to an application or replace the cables.

This serial cord is with gold plated pins for superior corrosion resistance ensuring a solid connection.

The wires inside are connected to the pins in the order of the standard wire color code (black brown red orange etc.), which makes hook-up a breeze when you need to cut the cable and make some other wires to the pins.

The connectors are equipped with a pair of thumbscrews for securing the plug to the female socket.

You can use this 15ft long DB9 extension cable to have your units side by side, make your work easy than ever before.

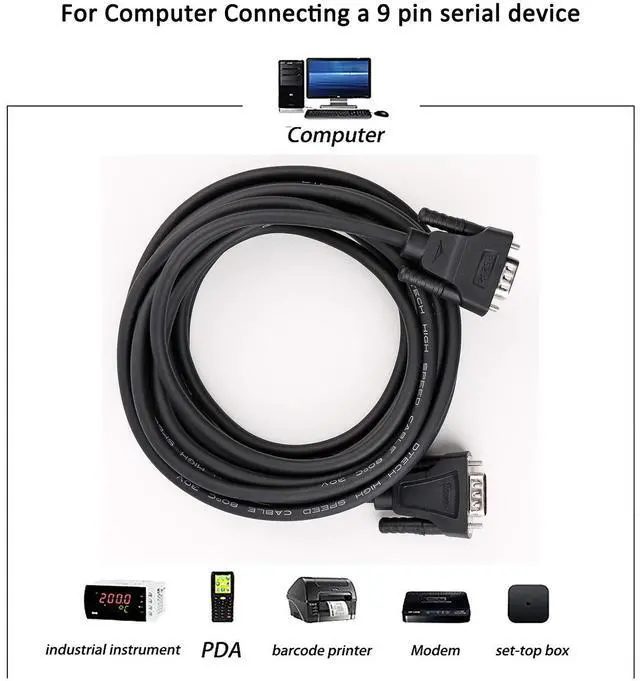

For Connecting RS232 devices below (partial):

Touchscreen

Telescope

vinyl cutting machine

Modem

GPS

network equipment

radio transceiver

stereo system subwoofer/speaker set

sewing machine

weather station

Or controller to a remote control camera

...

Note:

1)This is a straight thru cable, DO NOT perform crossover (Null Modem) function.

2)It is shielded with standard Foil-Al layer shielding as most cables do, it fits for most of jobs. But if there are big mess of interference at your work area, you may need a special heavy duty shielding cable(copper braided + AL-foil).

Specifications:

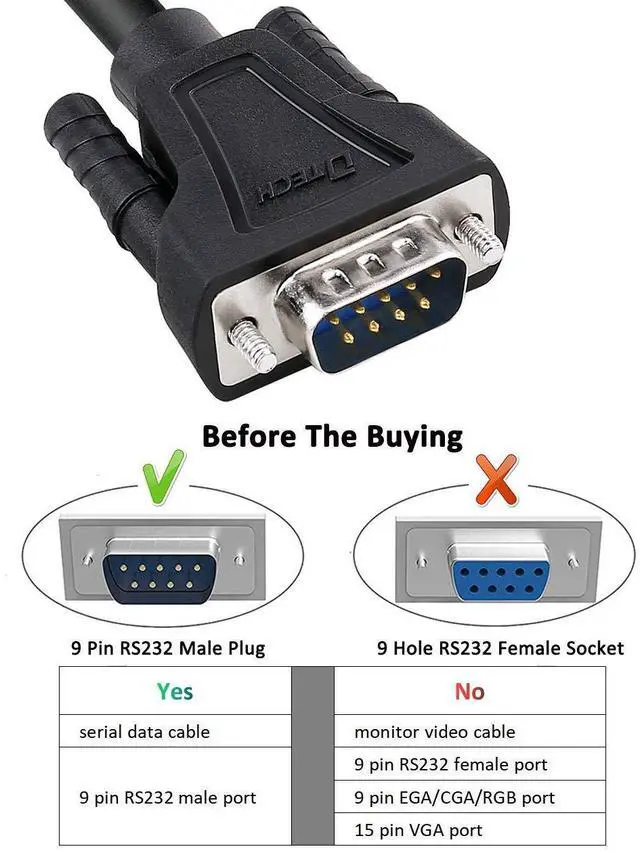

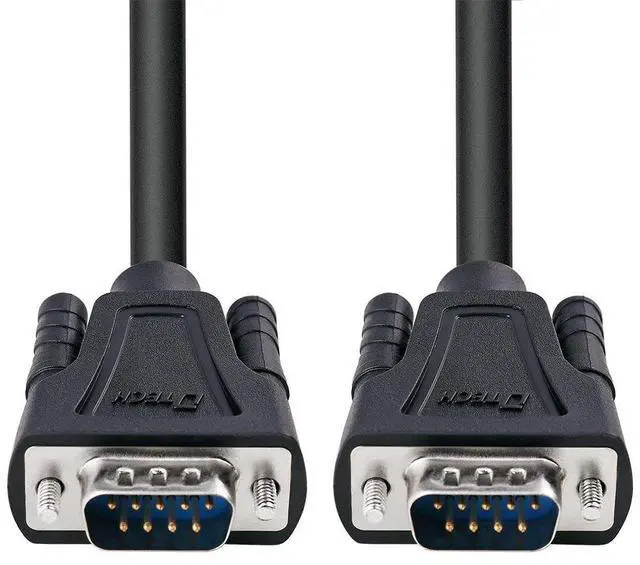

Connectors: DB9 to DB9 (Male-Male)

Interface Surface: Nickel-plated

Pins Surface: Gold-plated

Wire Gauge: 30 AWG

Cable Diameter: 6mm

Item Length: 15 foot (5 meter)

Color: Black

Whats Included:

1 x 15 ft Serial Port Male to Male Cable

1 x User Manual
