PCI-E 1X to PCIE 4 Slots Adapter Card PCI Express Expansion Card 1 to 4 PCIe Slot Riser with 6Pin/SATA 15Pin Port

JMT PCI-E 1X To PCIE 4 Slots Adapter Card PCI Express Expansion Card 1 to 4 PCIe Slot Riser with 6Pin/SATA 15Pin
Port Note: 1. This product is 24-hour working products and are consumable. 2. Because WINS limits the number of graphics cards, under WIN10 you can only recognise up to 8 cards, WIN7 can only recognise 6 cards and you have to use a modified version of the graphics card driver and try to use the same model of graphics card on a motherboard. 3. Above 8 cards you need to use a LIN¡¤UX system.
Product parameters Product Model: PCE4PCE-A01
Interface: Motherboard PCI- E IX (1X, 4X, 8X, 16X compatible)
PCB colour: Blue
Product speed: PCI-E
2.0 2U case: Support, can be used with half height baffle, full height baffle sent by default.
Main control chip: AS¡¤Media AS¡¤M1184e
System support: WIN/WIN8/WIN10/LIN¡¤UX
Note: USB cable can not be connected to the USB interface, must be connected to the matching small adapter board. Product Description. PCI-E 1X Multi Interface Card Solve the problem of insufficient PCI-E 1X for desktop computers. But even with USB 3.0, the theoretical bandwidth is no more than 5Gbps (625MB/s), and divided into four and then stripped of losses that's only 150MB/s, while even PCI-E 1x has a single channel bandwidth of 250MB/s, so this product will give you the most slots but not enough bandwidth, and is only suitable for places where performance is not required. The several PCI-E 1X slots are all gen*2 mode, even if they were gen*1 mode before, it doesn't matter.

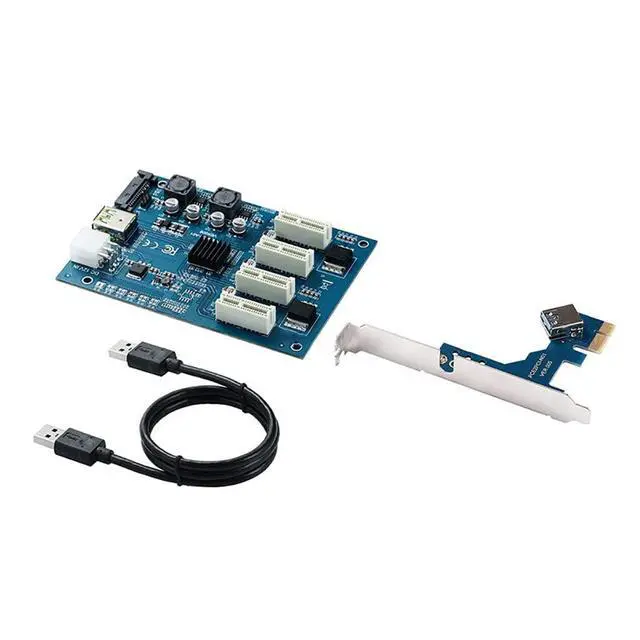

Packing list: Adaptor card*1 Small card*1 USB cable*1
