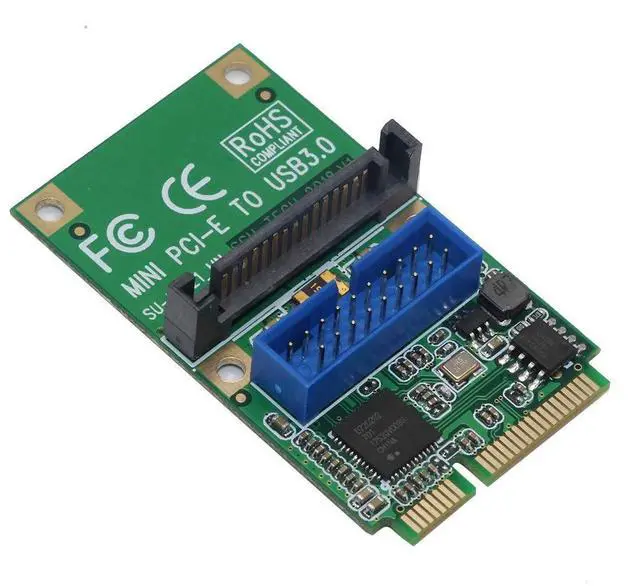

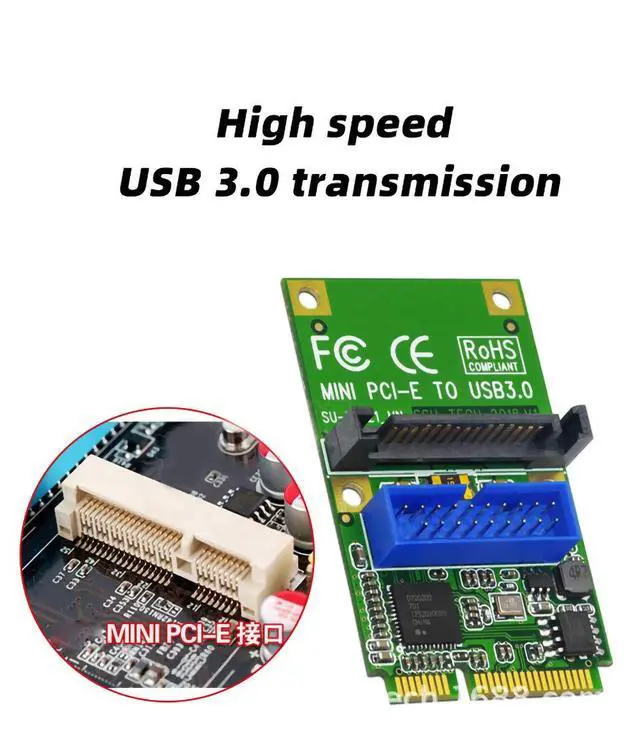

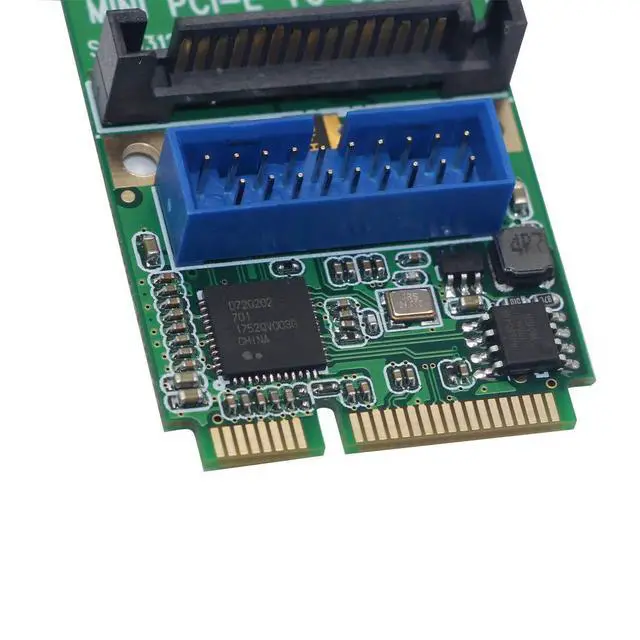

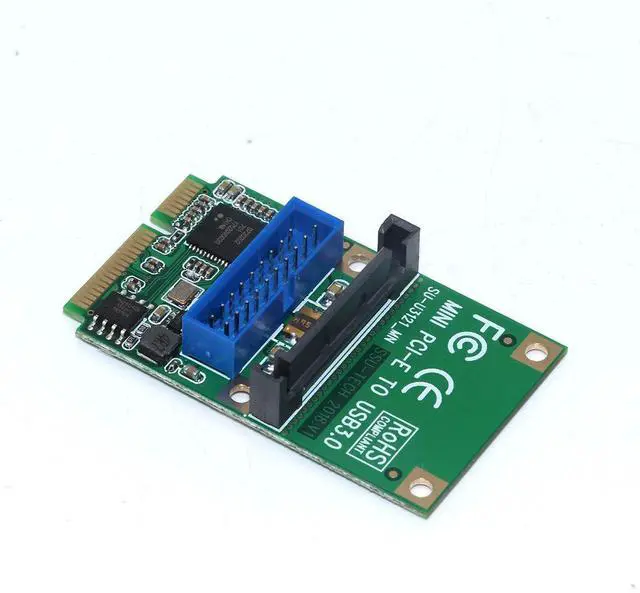

Mini PCI-E to USB 3.0 Adapter Card MINI PCI Express to 19-Pin / 20pin USB3.0 Expansion Card 15pin SATA Power Port for Desktop PC
- NEC main control chip which is based on the USB3.0 Association, also the main control of the third generation 2 port D720202.The only expansion card on the market that can support for LINUX OS.; The expansion card uses the capacitance of the solar lure, which greatly ensures the stability of the USB power supply.The expansion card uses the capacitance of the solar lure, which greatly ensures the stability of the USB power supply.; Our factory is the place of origin , strong after-sales technical support can be provided, and the firmware and driver can be updated fastest and earliest.; Compliant with PCI-Express Specification Version 2.0.Backward compatible with USB2.0, USB1.1, USB1.0; Supported OS: for Windows XP/2003/Vista, for Win7/Win8/Win10, for Linux, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: Compliant with USB 3.0 Superspeed Specification Version 1.0 Compliance with xHCI specification version 1.0 Maximum transfer rate is up to 5Gbps, much higher than USB 2.0 's 480Mbs, up to 10 times Backward compatible with USB 2.0, USB 1.1, USB 1.0
Transmission rate: 5000/480/12/ 1.5M bps Built-in SATA power-on interface Support USB hot plug, plug and play.
Brand: JMT
Master chip: Renesas/NEC
UPD720202 Applicable interface: Mini PCI-E interface

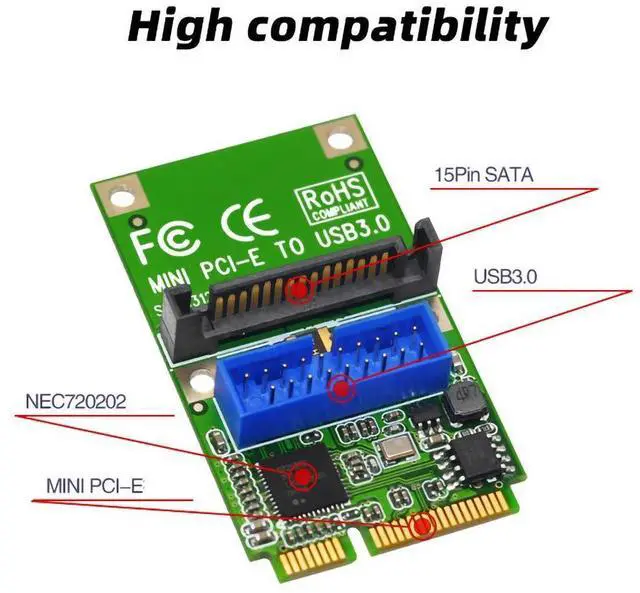

Product interface: USB 3.0 19/20 Pin x 1, 15Pin SATA power port x 1
Product size: 29.7 mm* 50.7 *10mm/ 1.17 * 2.00 * 0.39"
Supported OS: for Windows XP/2003/Vista, for Win7/Win8/Win10, for Linux, etc.
Notes:
1. Because Mini PCI-E does not have 5V power supply, it can't directly supply USB power, so you must plug in SATA power cable to work properly.
2. This expansion card can only be plugged into the MINI PC-E interface and cannot be used for the MSATA interface. Please confirm the interface before purchasing, otherwise it will not work.
3. Because NEC merged with Renesas Electronics in the first half of 2010 and Renesas Electronics has a large shareholding, so now the drive and LOGO are changed to RENESAS. Please be aware! 4. CHINA and JAPAN are printed on the chip. This just means the chip is package in China or Japan. The chip inside is still produced by JAPAN. The performance is exactly the same, no difference. 5. USB 3.0 is a double row with a total of 20 Pin, one of which has been pulled out of the needle to prevent staying, so it is also called 19 Pin, please be sure to see the precautions when buying!
Package included: 1 x PCI-E to USB 3.0 19Pin Header Card
Transmission rate: 5000/480/12/ 1.5M bps Built-in SATA power-on interface Support USB hot plug, plug and play.
Specifications
:Brand: JMT
Master chip: Renesas/NEC
UPD720202 Applicable interface: Mini PCI-E interface
Product interface: USB 3.0 19/20 Pin x 1, 15Pin SATA power port x 1
Product size: 29.7 mm* 50.7 *10mm/ 1.17 * 2.00 * 0.39"
Supported OS: for Windows XP/2003/Vista, for Win7/Win8/Win10, for Linux, etc.
Notes:
1. Because Mini PCI-E does not have 5V power supply, it can't directly supply USB power, so you must plug in SATA power cable to work properly.
2. This expansion card can only be plugged into the MINI PC-E interface and cannot be used for the MSATA interface. Please confirm the interface before purchasing, otherwise it will not work.
3. Because NEC merged with Renesas Electronics in the first half of 2010 and Renesas Electronics has a large shareholding, so now the drive and LOGO are changed to RENESAS. Please be aware! 4. CHINA and JAPAN are printed on the chip. This just means the chip is package in China or Japan. The chip inside is still produced by JAPAN. The performance is exactly the same, no difference. 5. USB 3.0 is a double row with a total of 20 Pin, one of which has been pulled out of the needle to prevent staying, so it is also called 19 Pin, please be sure to see the precautions when buying!
Package included: 1 x PCI-E to USB 3.0 19Pin Header Card
