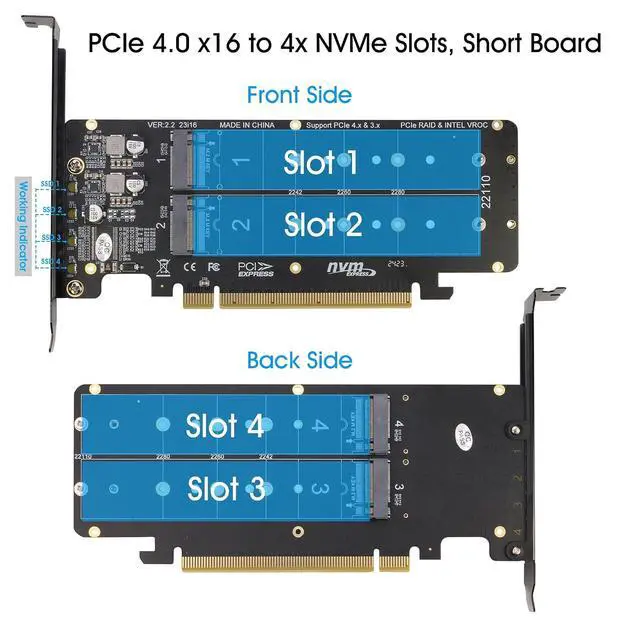

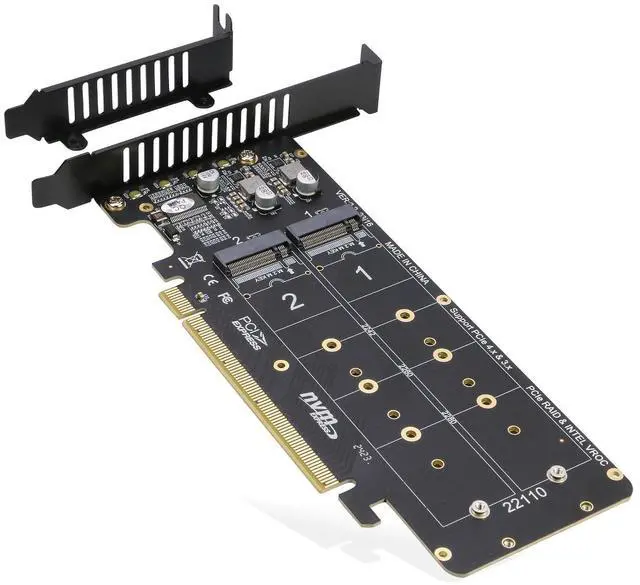

Quad PCIe NVMe Adapter, PCIe 4.0 x16 to 4Ports M.2 NVMe Converter Card for 2U Support NVMe SSD in Size 22110/2280/2260/2242 (PCI-e Bifurcation Required)

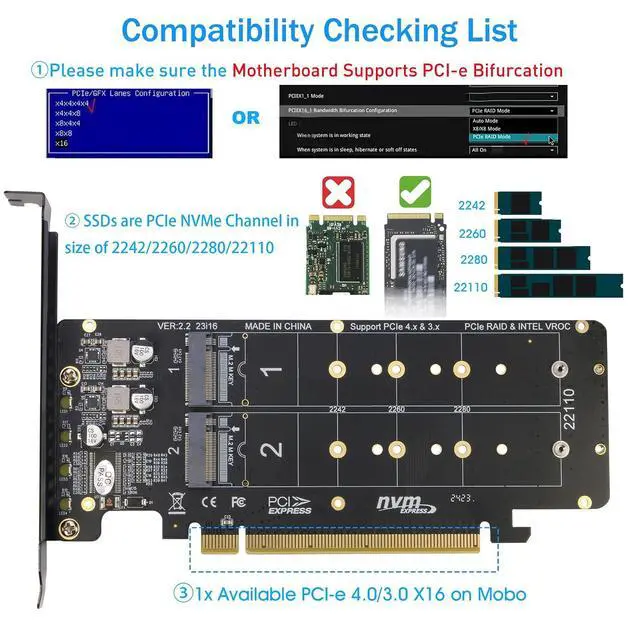

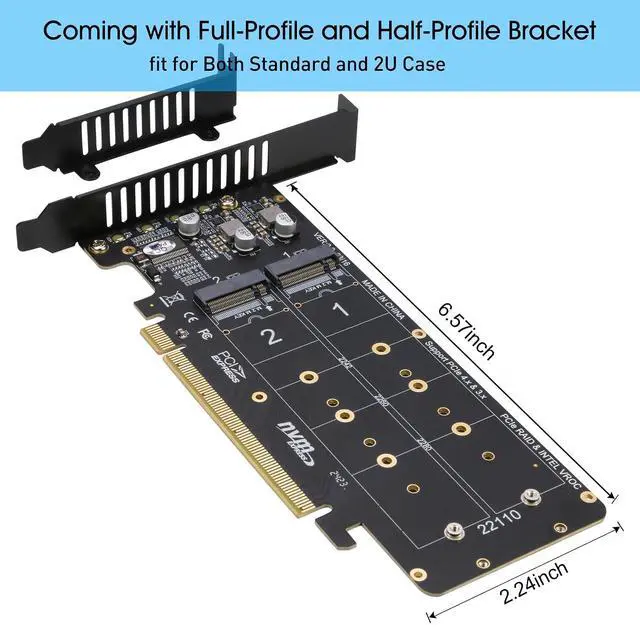

- RIITOP Quad PCIe NVMe Adapter allows you add 4x NVMe SSDs simultaneously via available PCI-e 4.0 or 3.0 x16 Slot on Motherboard which supports PCIe x16 Bifurcation. Full-speed transmission up to 4x 32Gbps. This model is coming with Low-Profile Bracket designed for 2U Case; Hardware requirement: 1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo 2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x4x4x4x4" in BIOS (Please Note: X8X4X4 or X4X4X8 mode can only recognize 3x NVMe SSDs) 3. All of the SSDs are M.2 PCI-e (M Key) NVMe SSD 4. CPU has enough channels to support; Upgraded Design: 1. Small size, each side has 2 Slots, it will short the height to save space. 2.Individual LED Indicator design will show each SSD's Working Status; [Wide Compatibility] Compatible with M.2 PCI-e NVMe SSDs in all sizes:110x22mm. 80x22mm, 60x22mm and 42x22mm; Not support any M.2 (SATA-Based B+M Key) SSD; It can not be installed with Two-sided NAND SSDs on Side 2 because of Screws of Side 1. Motherboard Compatibility: Most Server and X299, X399 can support PCIe x16 Bifurcation; Please note: 1. RIITOP 4x NVMe PCIe Adapter does not Support Hardware Raid, only supports the formation of soft raid in Win10 , or you may build raid via Third-party Software, and 4 SSDs should be same model 2. The motherboard need support "PCIEX16 Bifurcation", Otherwise, only one M.2 SSD can be recognized. Please check Motherboard's user manual on its official website if you are not s
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description RIITOP Quad PCIe NVMe Adapter, PCIe 4.0 x16 to 4Ports M. 2 NVMe Converter Card... Quad NVMe PCIe Adapter, RIITOP 4 Ports M. 2 NVMe SSD to PCI-e 4.0 / 3.0 x16 Card... RIITOP Dual NVMe PCIe Adapter, PCIe 4.0 X16 to Dual NVMe and 1x More PCIe x16... Quad NVMe PCIe Adapter, RIITOP 4-Port NVMe to PCI-e 4.0 / 3.0 x16 Expand Contro... NVMe PCIe Adapter, RIITOP M. 2 NVMe to PCI-e x4/x8/x16 Card with Heat Sink for.
.. Add to Cart Add to Cart Add to Cart Add to Cart Buying Options Customer Reviews 4.7 out of 5 stars 11 4.1 out of 5 stars 94 3.5 out of 5 stars 15 4.4 out of 5 stars 89 4.6 out of 5 stars 1, 334 Price $ 33.29 $33. 29 $ 33.92 $33. 92 $ 24.29 $24. 29 $ 37.99 $37. 99 no data Support SSDs 4 4 2 4 1 Hardware Require PCI-e Bifurcation Required PCI-e Bifurcation Required PCI-e Bifurcation Required PCI-e Bifurcation Required NONE PCIe Specification PCIe x16 PCIe x16 PCIe x16 PCIe x16 PCIe x4/x8/x16
.. Add to Cart Add to Cart Add to Cart Add to Cart Buying Options Customer Reviews 4.7 out of 5 stars 11 4.1 out of 5 stars 94 3.5 out of 5 stars 15 4.4 out of 5 stars 89 4.6 out of 5 stars 1, 334 Price $ 33.29 $33. 29 $ 33.92 $33. 92 $ 24.29 $24. 29 $ 37.99 $37. 99 no data Support SSDs 4 4 2 4 1 Hardware Require PCI-e Bifurcation Required PCI-e Bifurcation Required PCI-e Bifurcation Required PCI-e Bifurcation Required NONE PCIe Specification PCIe x16 PCIe x16 PCIe x16 PCIe x16 PCIe x4/x8/x16
