  6. Item#: 9SIC6W1M044344

  • $60.99
  • Free 30-day Returns
  • Limit 99999 per customer.
    Ships from China.
    Sold by EmpressTech

    Shipped by EmpressTech

    Price alert
    Add to wish list
    Shop it at NeweggBusiness.

    Meet Your Seller

    EmpressTech
    Visit EmpressTech Store
    FOLLOW

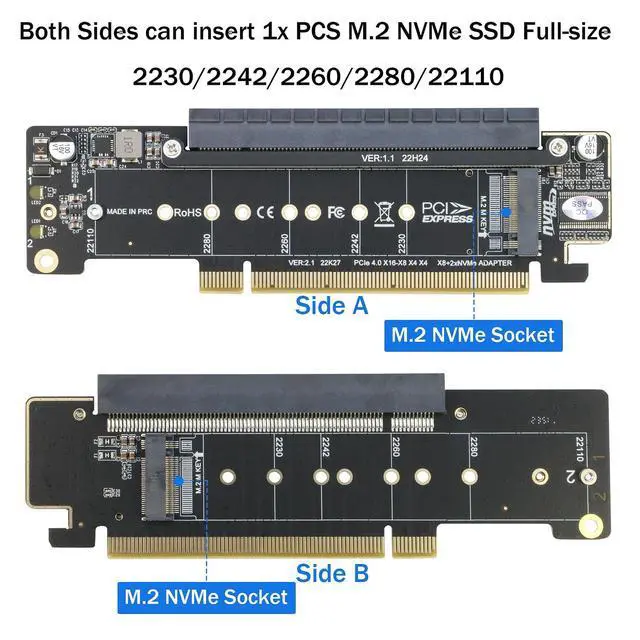

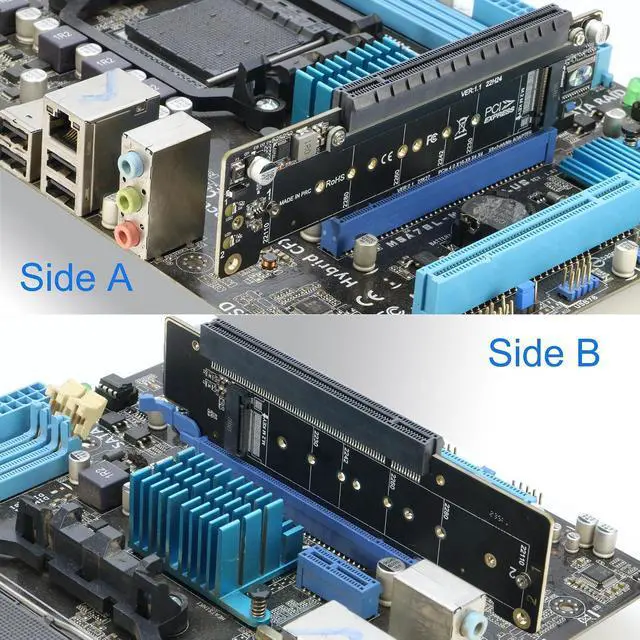

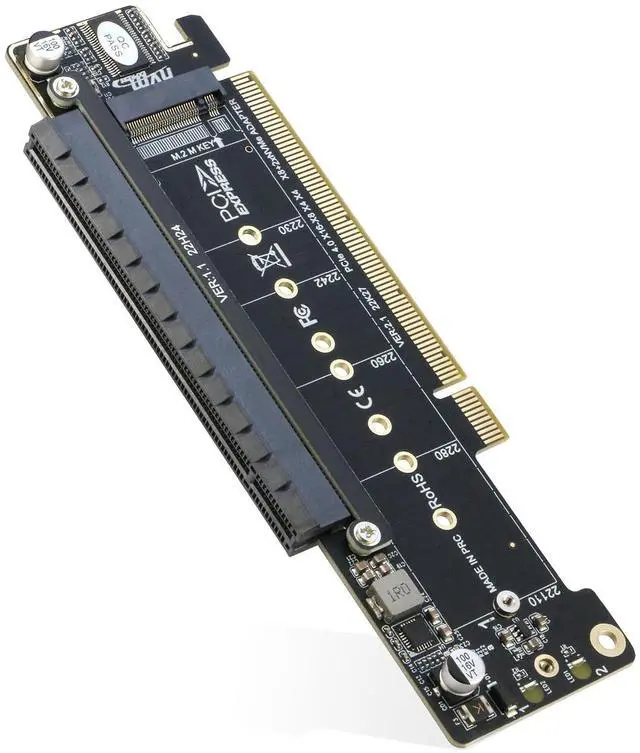

    Dual NVMe PCIe Adapter, PCIe 4.0 X16 to Dual NVMe and 1x More PCIe x16 (x8 Signal) Adapter for 22110/2280/2260/2242/2230 M.2 NVMe SSD (PCI-e Bifurcation Required)

    Be the first to review this product...

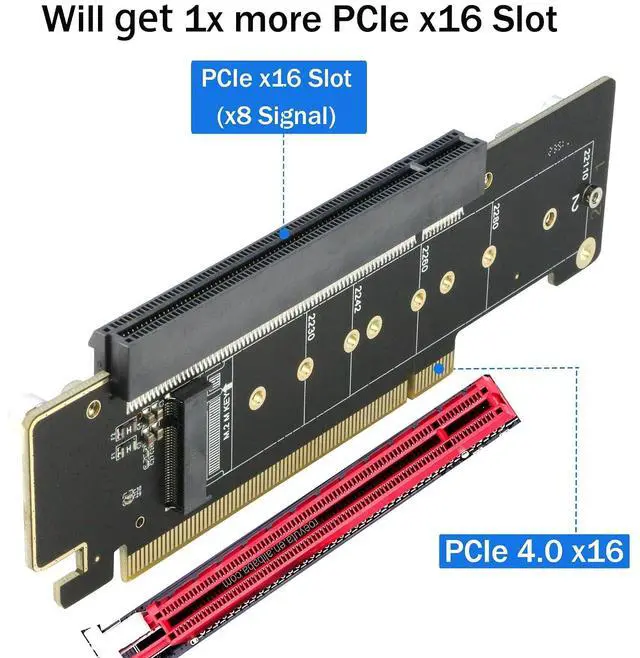

    • [Dual NVMe PCIe Adapter] RIITOP Dual NVMe PCIe Adapter can add 2x M.2 NVMe SSD Slot via PCIe 4.0 x16, but also expaind extra PCIe x16 slot (x8 Signal), which can use for expanding any other PCIe Device; Hardware requirement: 1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo 2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x8x4x4" in BIOS 3. All of the SSDs are M.2 PCI-e (M Key) NVMe SSD 4. CPU has enough channels to support; Compatible with M.2 PCI-e NVMe SSDs in all sizes:110x22mm, 80x22mm, 60x22mm and 42x22mm, 30x22mm; Not support any M.2 (SATA-Based B+M Key) SSD; Motherboard Compatibility: Most Server and X299, X399 can support PCIe x8x4x4 Bifurcation; Upgraded Design: 1. Two Slots of NVMe SSD are on positive and negative sides. So the card is in small size, And individual LED Indicator design will show each SSD's Working Status 2. The more PCIe x16 Slot is very useful when there is no more PCIe Slot on motherboard; Please note: 1. RIITOP 2-Port NVMe PCIe Adapter does not Support Hardware Raid, only supports the formation of soft raid in Win10 , or you may build raid via Third-party Software, and 2 SSDs should be same model 2. The motherboard need support "PCIe x8x4x4 Bifurcation", all of the slots will works in full speed. If MOBO only supports "x4x4x4x4", the expanded PCIe x16 will only have x4 signal. If MOBO does not support"PCIe Bifurcation" , Only the PCIe x16 works, None M.2 SSD can be recognized. 3. Please check Motherboard
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

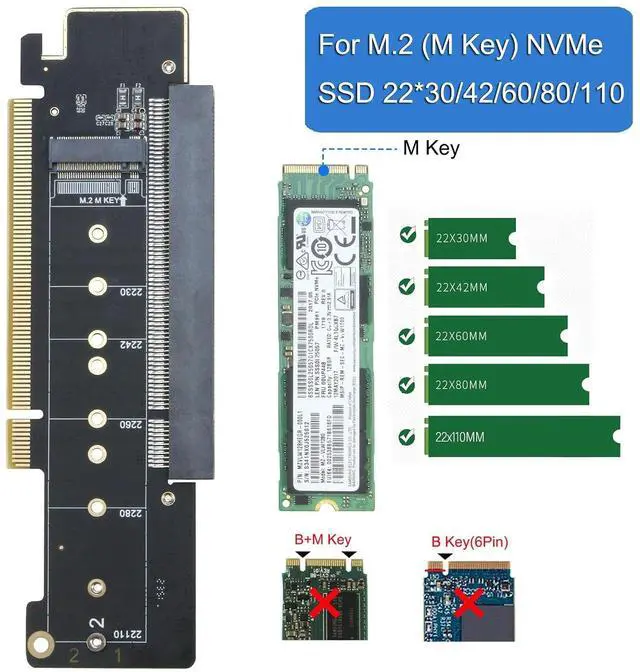

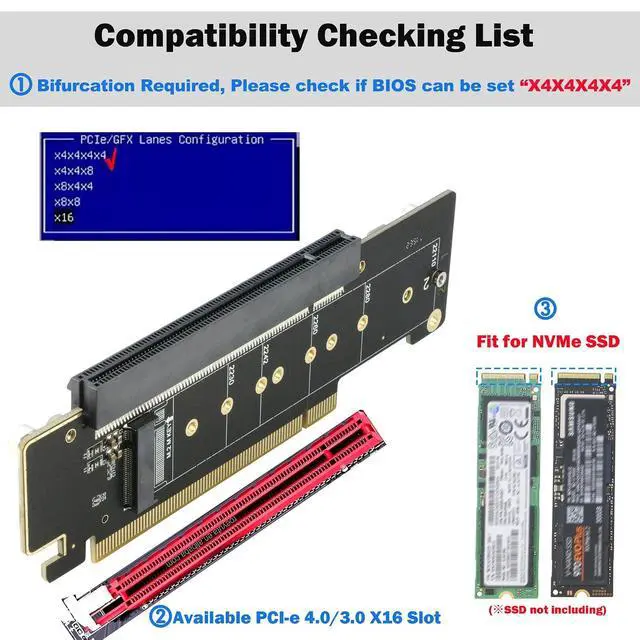

    Product description PCIe 4.0 x16 to Dual NVMe Adapter with Extra PCIe x16 (x8 Signal) Slot Compatiblity Checking List (Hardware Requirement) 1. PCIe Bifurcation Required Please check Mobo BOIS, it need support PCIe Bifurcation x4x4x4x4 2. Available PCIe x16 Slot It need 1x PCIe x16 slot on motherboard, can not be installed on pcie x1x4/ or x8 3. Can only support M. 2 NVMe SSD It can support 2pcs NVMe SSDs, size can be 2230/2242/2260/2280/22110, but can not support M. 2 B+M Key SATA-Based SSD RIITOP Dual NVMe PCIe Adapter, PCIe 4.0 X16 to Dual NVMe and 1x More PCIe x16.

    .. NVMe PCIe Adapter, RIITOP M. 2 NVMe to PCI-e x4/x8/x16 Card with Heat Sink for... Dual NVMe PCIe Adapter, RIITOP M. 2 NVMe SSD to PCI-e 3.1 x8/x16 Card Support... Quad NVMe PCIe Adapter, RIITOP 4 Ports M. 2 NVMe SSD to PCI-e 4.0 / 3.0 x16 Card... Quad NVMe PCIe Adapter, RIITOP 4-Port NVMe to PCI-e 4.0 / 3.0 x16 Expand Contro... Add to Cart Buying Options Add to Cart Add to Cart Add to Cart Customer Reviews 3.5 out of 5 stars 15 4.6 out of 5 stars 1, 334 4.0 out of 5 stars 78 4.1 out of 5 stars 94 4.4 out of 5 stars 89 Price $ 24.29 $24.

    29 no data $ 85.99 $85. 99 $ 33.92 $33. 92 $ 37.99 $37. 99 Compatible with NVMe SSD NVMe SSD NVMe SSD NVMe SSD NVMe SSD Slot 2 1 2 4 4 PCI-e Bifurcation Required Need No No Need Need
