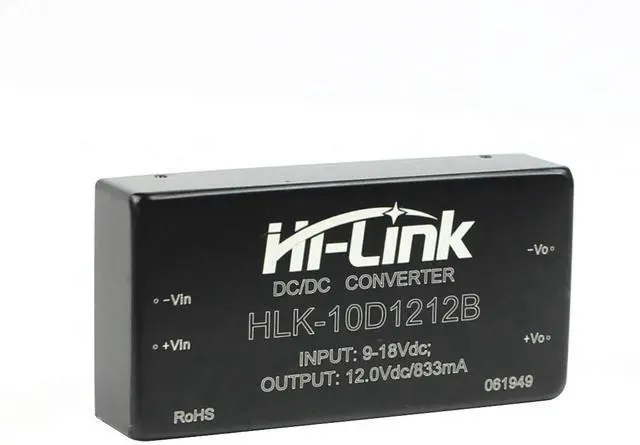

HLK-10D1212B 12V to 12V 833mA 10W Isolated DC Switching Power Supply Module DCDC Wide Voltage Input
Limited time offer, ends 07/19 By EmpressTech
- Ultra wide range input (2: 1), output 10W.Voltage:9-18VDC; Conversion efficiency 86%?Typ?; Ultra-low standby power: 0.3W(Typical value); Super fast startup: 100mS (Typical value); International standard pins, PCB board in-line installation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Product
Name: 10W DC to DC power module
Material: Metal
Function: supply power
Start delay time: 100ms
Package: PP bag, foam
Rated input voltage: 12Vdc
Input voltage range: 9-18Vdc
Max input current:? 1.2A
Impulse voltage:? 30Vdc
Starting voltage: 9Vdc
Product performance: 1. Ultra wide range input ( 2: 1 ), output 10W.
Voltage: 9-18VDC 2. Conversion efficiency 86%? Typ? 3. Isolation voltage 1500Vdc
4.
Ultra-low standby power: 0.3W (Typical value)
5.
Super fast startup: 100mS (Typical value) 6.
range of working temperature: -40¡ãC~+85¡ãC
7. Output short circuit protection, over current protection
8. Metal case, low output ripple
9. International standard pins, PCB board in-line installation
10. Adopt high-quality environmentally friendly waterproof and thermally conductive adhesive potting, dust-proof, moisture-proof, vibration-proof. 11. High reliability, long life design, long continuous working time 12.
Size: 50.8 * 25.4 * 11mm
Name: 10W DC to DC power module
Material: Metal
Function: supply power
Start delay time: 100ms
Package: PP bag, foam
Rated input voltage: 12Vdc
Input voltage range: 9-18Vdc
Max input current:? 1.2A
Impulse voltage:? 30Vdc
Starting voltage: 9Vdc
Product performance: 1. Ultra wide range input ( 2: 1 ), output 10W.
Voltage: 9-18VDC 2. Conversion efficiency 86%? Typ? 3. Isolation voltage 1500Vdc
4.
Ultra-low standby power: 0.3W (Typical value)
5.
Super fast startup: 100mS (Typical value) 6.
range of working temperature: -40¡ãC~+85¡ãC
7. Output short circuit protection, over current protection
8. Metal case, low output ripple
9. International standard pins, PCB board in-line installation
10. Adopt high-quality environmentally friendly waterproof and thermally conductive adhesive potting, dust-proof, moisture-proof, vibration-proof. 11. High reliability, long life design, long continuous working time 12.
Size: 50.8 * 25.4 * 11mm
