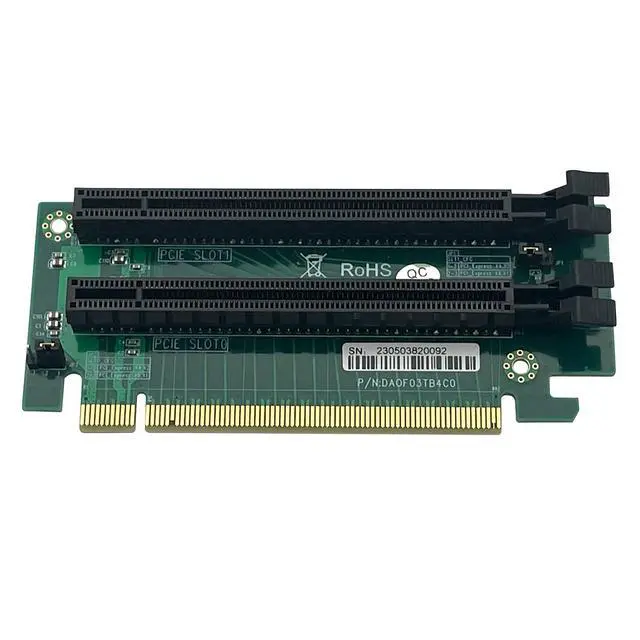

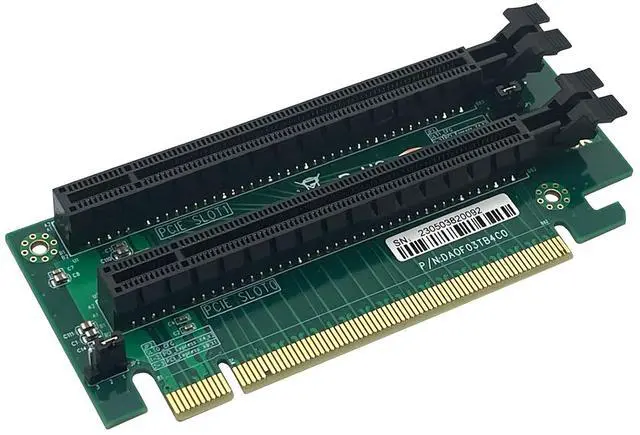

PCI-Express 16x Riser Card 2 Slot 270-Degree R-Angle Riser Adapter, 2U Card for E5 Two-Way Server, RS44SR-2(210)

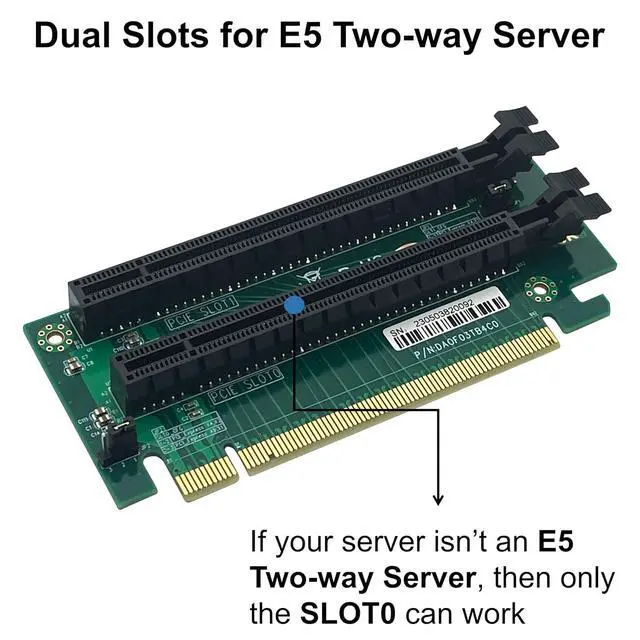

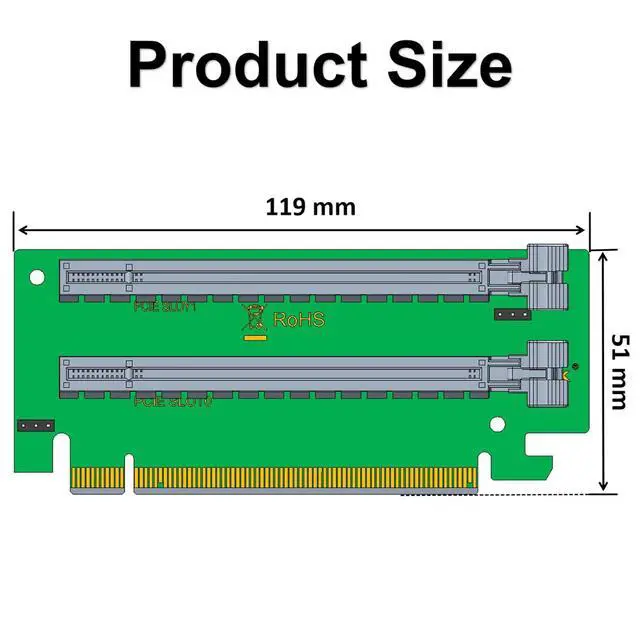

- PCB board design for high-frequency impedance. High precision machine soldered 4-layer PCB with gold-plating 15 for transmission stability for the best conductivity and good electrical performance. Resistance to pull and plug. Ensure that the signal is stable at full speed without attenuation.; The product itself does not support splitting. If your server is an E5 Two-way Server, it can be split into two PCI-E 3.0 X8 channels. If not, only the SLOT0 can work.; PCI- Express 16X Riser Card 2 slot 270-Degree Adapter Card. The size of the PCB is 119 * 51mm.; The PCI-Express 16X Riser Card makes the PCI-Express Card away from motherboard, with the PCI-Express socket directly in line with the socket on the motherboard. The connector is soldered on the component side of the board. When an I/O board is inserted, the component side of the I/O board will face down, towards the motherboard.; PCI-E 3.0 X8 64Gbp/s.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description ipolex PCIe Riser Card RS44SR-2 (210) Add to Cart RSC-RR1U-E8 Add to Cart RSC-RR1U-E16R Add to Cart RSC-RR1U-E16 Buying Options RS44SR-1 (305) Buying Options Price $ 12.99 $12. 99 $ 13.09 $13. 09 $ 11.09 $11. 09 Interface PCIe x16 PCIe x8 PCIe x16 PCIe x16 PCIe x16 Output Type (2x) PCIe x16 PCIe x8 PCIe x16 PCIe x16 PCIe x16 Connecting Finger 15 15 15 15 15 PCB size (mm) 119 * 51 161 * 31.5 106 * 26 161 * 31.5 119 * 39.5 Gen2 Yes Yes, depending on MB Yes Yes, depending on MB Yes Gen3 Yes Yes, depending on MB Yes Yes, depending on MB Yes Gen4 No No No No No Chassis 2U 1U 1U 1U 2U PCIe 3.0 Riser Card
