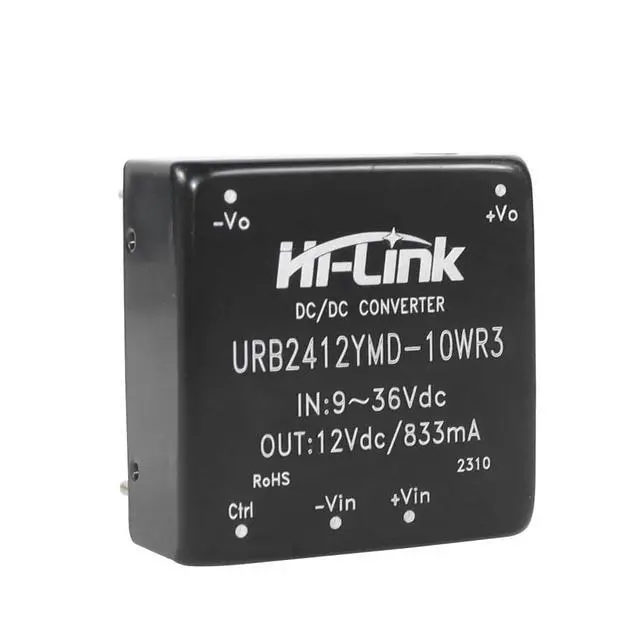

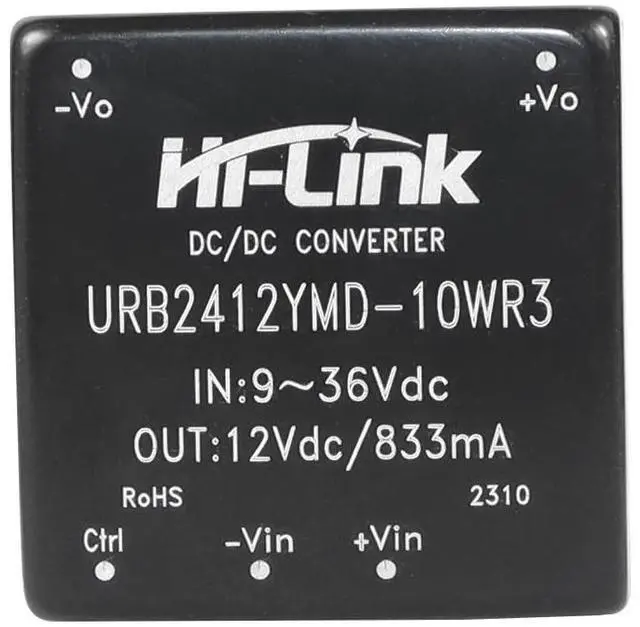

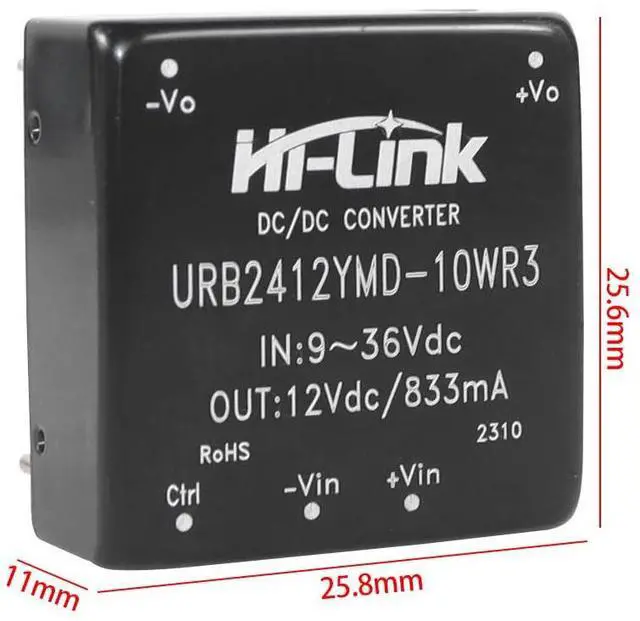

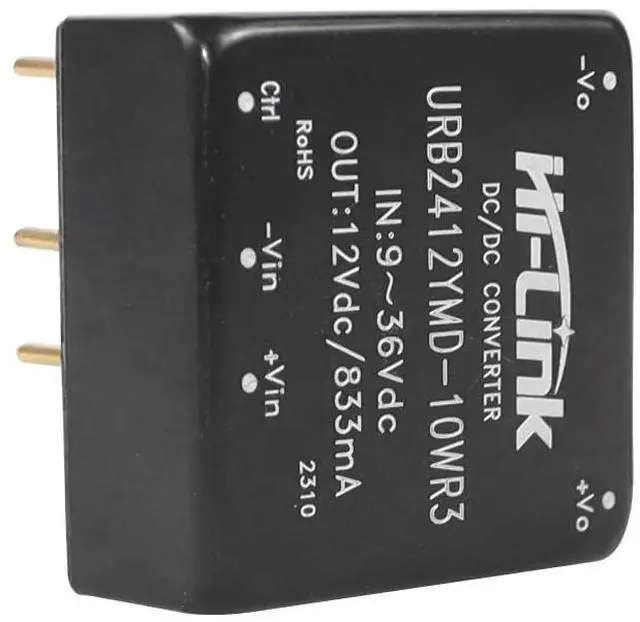

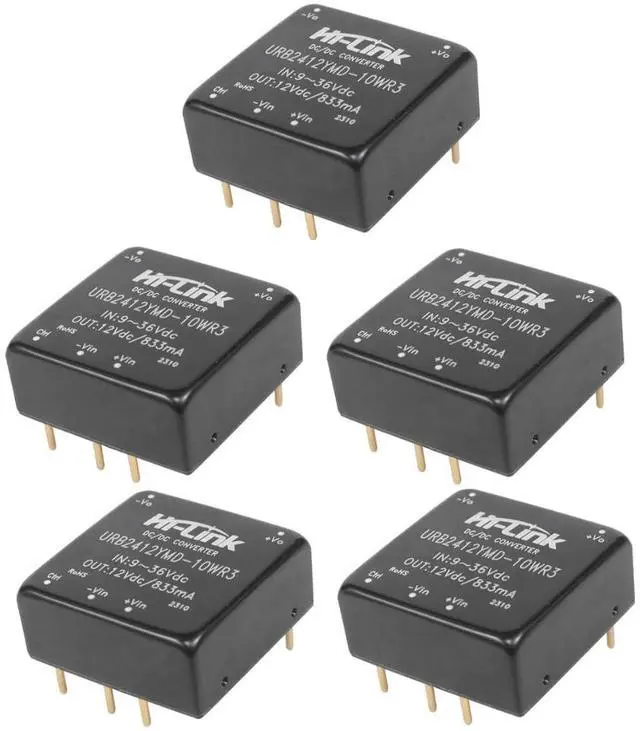

5 pcs/lot HLK-10D2412 24V to 12V 830mA10W DCDC 4:1 Wide Stabilizing Voltage Power Supply Module Replace HDW10-24S12A3-3
Limited time offer, ends 07/05 By EmpressTech
- Ultra wide range input (4: 1), output 10W; Conversion efficiency 91% (Typ); Ultra-low standby power consumption: 0.036W (typical value); Input undervoltage protection, output short circuit protection, overcurrent protection, overvoltage protection; Adopting high-quality environmentally-friendly waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 standard
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product performance£º
1. Ultra wide range input ( 4: 1 ), output 10W
2. Conversion efficiency 91% (Typ)
3. Isolation voltage 1500Vdc
4.
Ultra-low standby power consumption: 0.036W (typical value)
5.
Super fast start: 1mS (typical value)
6.
Operating temperature range: -40 ¡ã C ~ + 85 ¡ã C
7. Input undervoltage protection, output short circuit protection, overcurrent protection, overvoltage protection
8. Metal shell, low output ripple

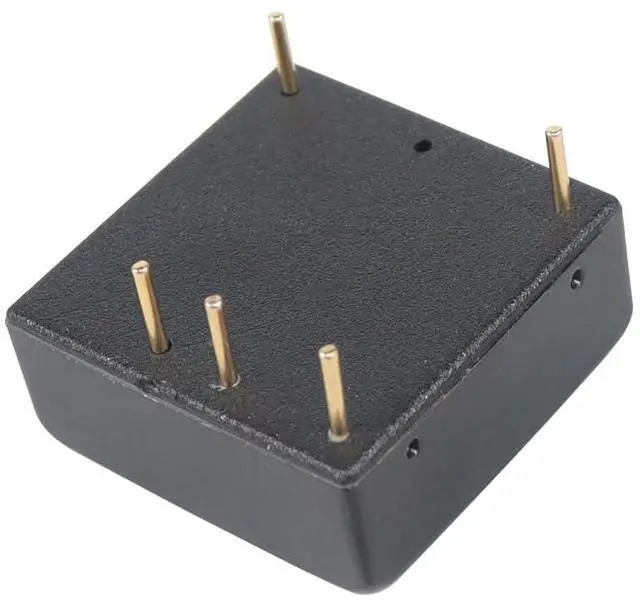

9. International standard pins, PCB board plug-in installation
10. Adopting high-quality environmentally-friendly waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 standard
11. High reliability, long life design, long continuous working time Environmental conditions
Working environment temperature: -40- + 85 Degree
Storage temperature: -40- + 80
Degree Relative humidity: 5-95% Cooling method Natural cooling
Atmospheric pressure: 80-106
Kpa Vibration coefficient: 10 ~ 500Hz, 2G10min. /1cycle, 60min. each along X, Y, Z axe (Meet the requirements of secondary road transportation)
1. Ultra wide range input ( 4: 1 ), output 10W
2. Conversion efficiency 91% (Typ)
3. Isolation voltage 1500Vdc
4.
Ultra-low standby power consumption: 0.036W (typical value)
5.
Super fast start: 1mS (typical value)
6.
Operating temperature range: -40 ¡ã C ~ + 85 ¡ã C
7. Input undervoltage protection, output short circuit protection, overcurrent protection, overvoltage protection
8. Metal shell, low output ripple
9. International standard pins, PCB board plug-in installation
10. Adopting high-quality environmentally-friendly waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 standard
11. High reliability, long life design, long continuous working time Environmental conditions
Working environment temperature: -40- + 85 Degree
Storage temperature: -40- + 80
Degree Relative humidity: 5-95% Cooling method Natural cooling
Atmospheric pressure: 80-106
Kpa Vibration coefficient: 10 ~ 500Hz, 2G10min. /1cycle, 60min. each along X, Y, Z axe (Meet the requirements of secondary road transportation)
