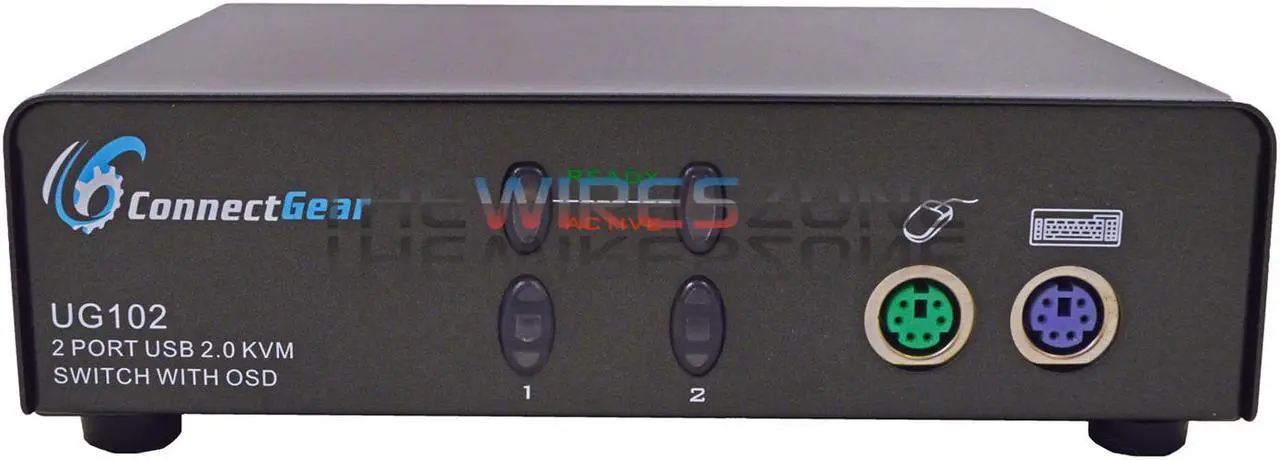

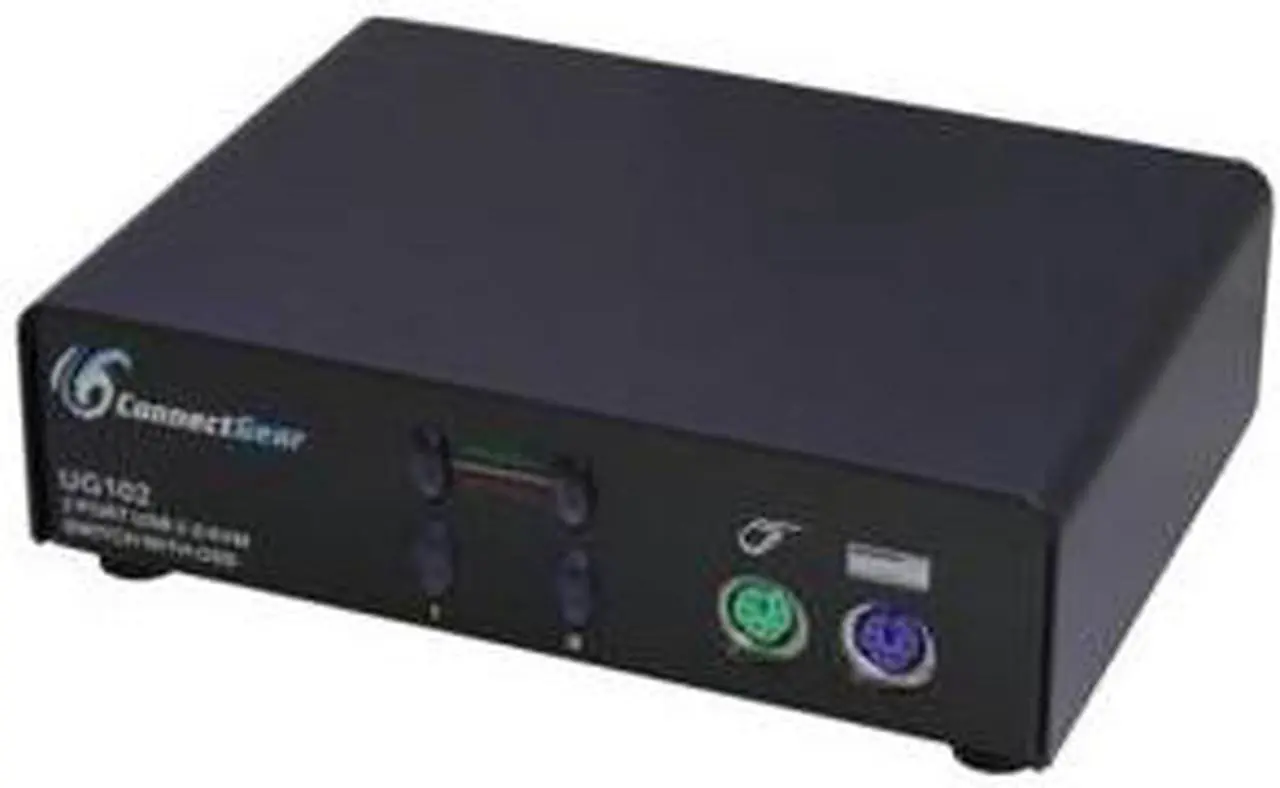

ConnectGear UG102 2-Port Audio KVM Switch
- 2 Ports Monitor Connections
- Video Resolution 1920 x 1440
+
+
Overview
Specs
Reviews
USB 2 Port VGA KVM Switch Adapter Box for PS/2 Keyboard Mouse Monitor Printer PC
Brand: Connect
Gear
MPN: UG102
Condition: New
Compatible with USB 2.0 / 1.1
Easy installation
Windows98, Me, 2000, XP and Mac OS Compatible
Select computers using On Screen Display (OSD) Menu or push buttons
Stereo audio support
Built-in 3 console USB 2.0 ports for USB devices sharing
Auto Scan mode with various time interval settings
Requirements
Computers with USB 2.0 / 1.1 and HDB-15F VGA connections
PS/2 Keyboard and Mouse
Sound cards are required to share audio
Specifications
Model: UG102
Number of PC
Ports: 2
Computer Connectors: up to 1920 x 1440 with 250MHz bandwidth

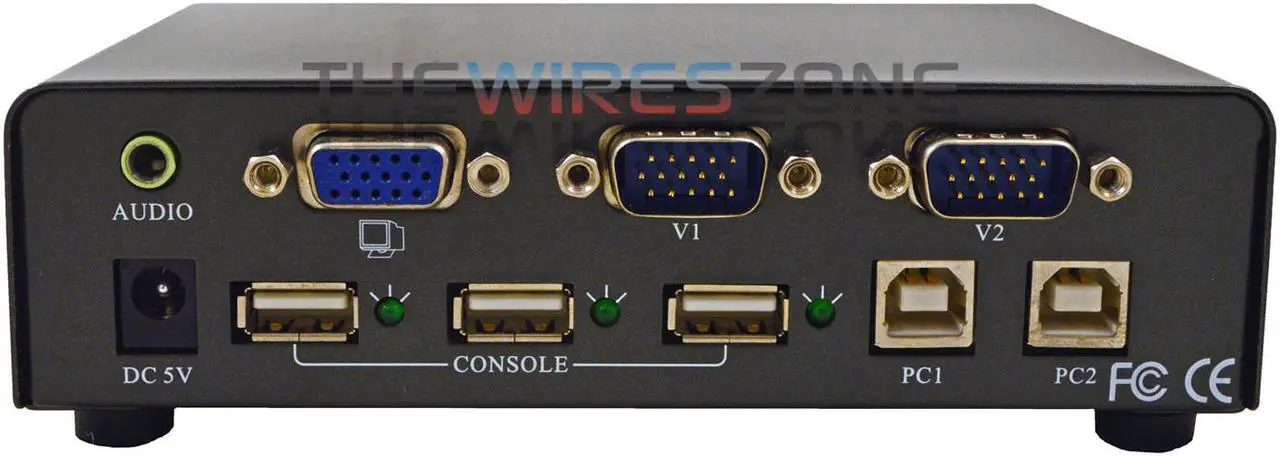

Console Port Connectors: USB A Type x 3; MD-6F x 2; HD-15F x 1; 3.5 mm Headphone Jack x 1
Select Buttons: Yes
Hot Keys: Yes
Automatic Scan: Yes
Scan Interval Time: 5, 10, 15, 20, 25, 30 Secs.
On Screen Display (OSD): Yes
LED
Indicators: Ready (green) x 2; Active (orange) x 2
Power: DC 5V/1A
Housing: Metal Case, Desktop
Dimensions: 145mm x 102mm x 40mm ( 5.71" x 4.02" x 1.57" )
Cable Connections: Connecting to KVM - Use HD-15F/USB Type A/ 3.5 mm Phone Plug (optional) connectors; Connecting to Computer - Use HD-15M/USB Type B connectors
Operating Environment: 32-131 degrees fahrenheit (0-55 degrees celsius)
Emission: FCC Class B

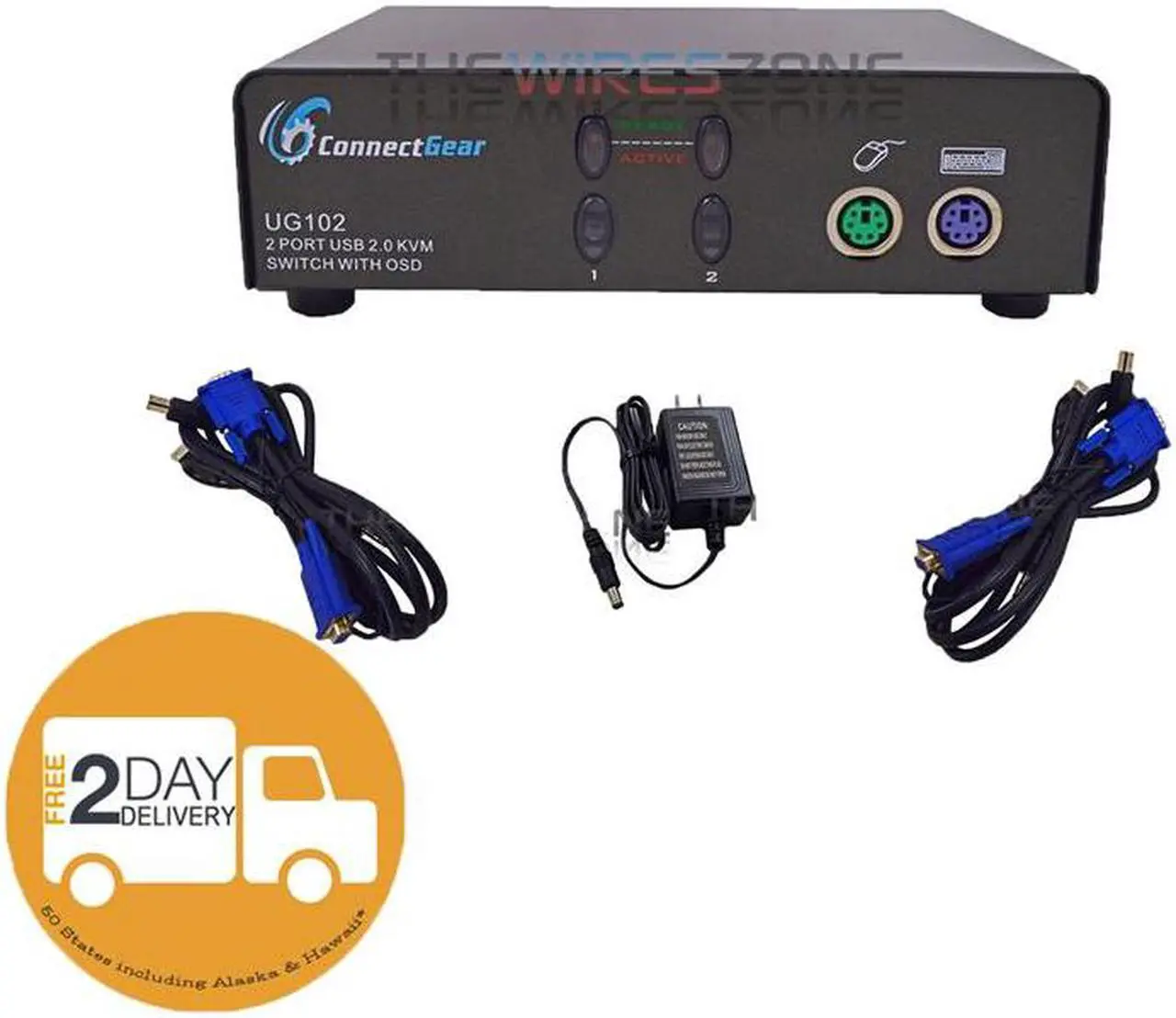

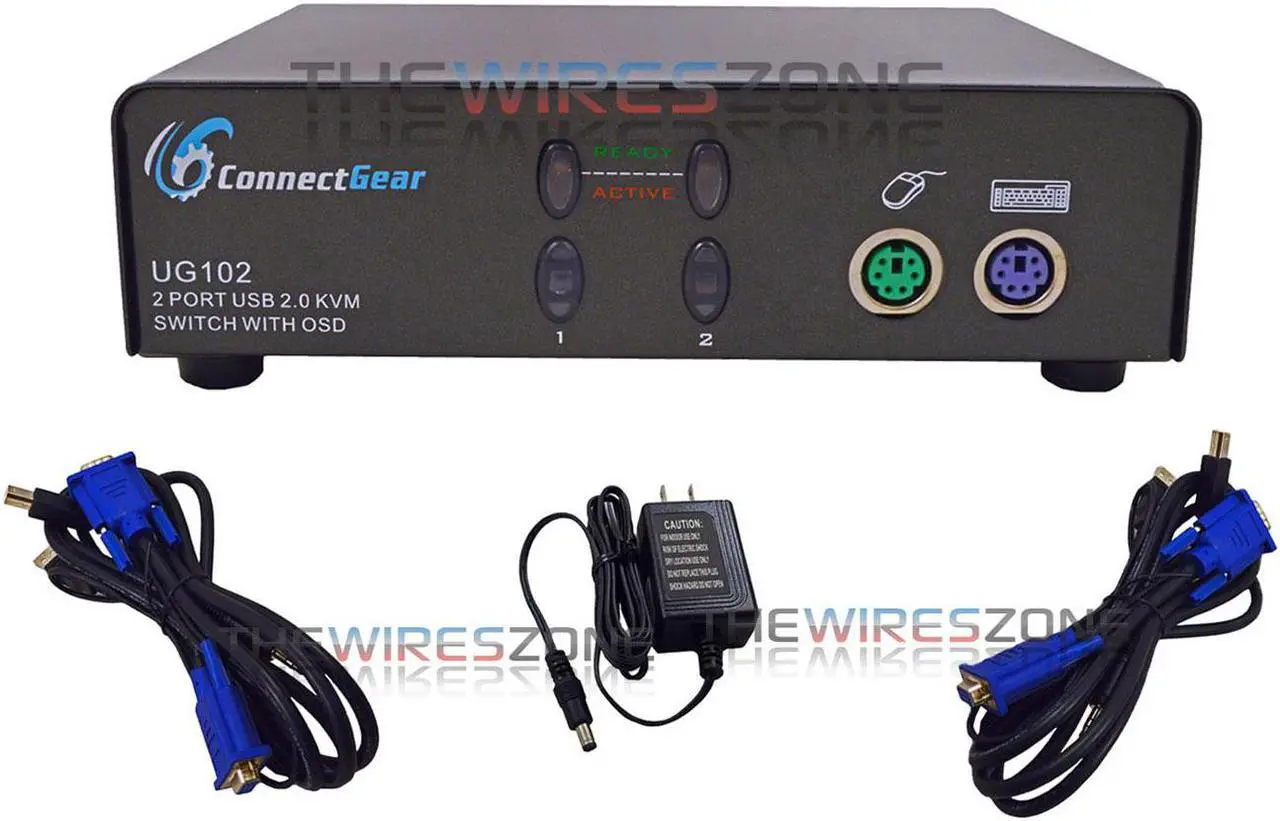

What's in the box
One 2 Port USB Audio KVM Switch
One Power Adapter
One User's Manual

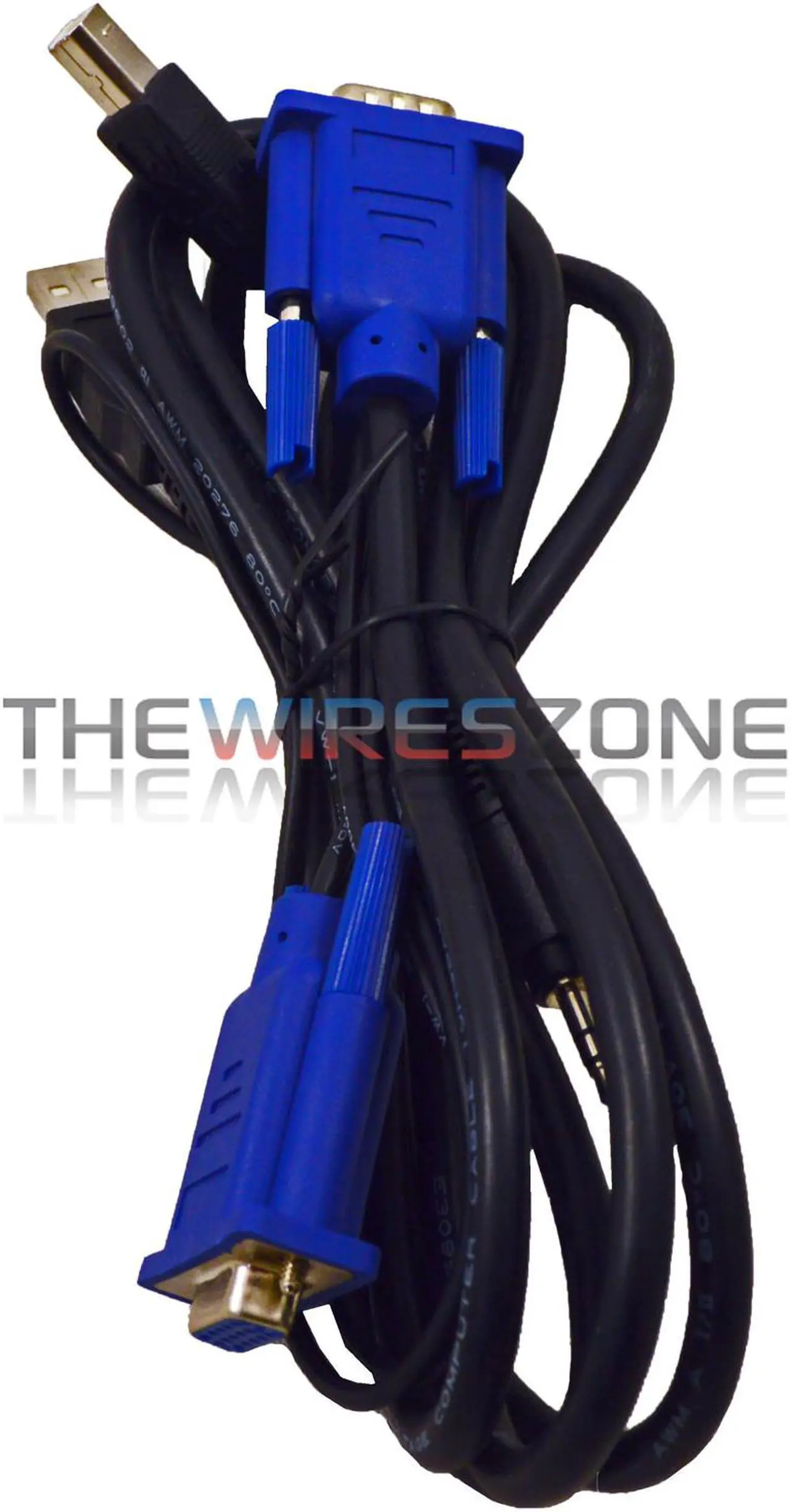

Two 6 Feet KVM Cables
Brand: Connect
Gear
MPN: UG102
Condition: New
Compatible with USB 2.0 / 1.1
Easy installation
Windows98, Me, 2000, XP and Mac OS Compatible
Select computers using On Screen Display (OSD) Menu or push buttons
Stereo audio support
Built-in 3 console USB 2.0 ports for USB devices sharing
Auto Scan mode with various time interval settings
Requirements
Computers with USB 2.0 / 1.1 and HDB-15F VGA connections
PS/2 Keyboard and Mouse
Sound cards are required to share audio
Specifications
Model: UG102
Number of PC
Ports: 2
Computer Connectors: up to 1920 x 1440 with 250MHz bandwidth
Console Port Connectors: USB A Type x 3; MD-6F x 2; HD-15F x 1; 3.5 mm Headphone Jack x 1
Select Buttons: Yes
Hot Keys: Yes
Automatic Scan: Yes
Scan Interval Time: 5, 10, 15, 20, 25, 30 Secs.
On Screen Display (OSD): Yes
LED
Indicators: Ready (green) x 2; Active (orange) x 2
Power: DC 5V/1A
Housing: Metal Case, Desktop
Dimensions: 145mm x 102mm x 40mm ( 5.71" x 4.02" x 1.57" )
Cable Connections: Connecting to KVM - Use HD-15F/USB Type A/ 3.5 mm Phone Plug (optional) connectors; Connecting to Computer - Use HD-15M/USB Type B connectors
Operating Environment: 32-131 degrees fahrenheit (0-55 degrees celsius)
Emission: FCC Class B
What's in the box
One 2 Port USB Audio KVM Switch
One Power Adapter
One User's Manual
Two 6 Feet KVM Cables
