eKL Matrix Dual Monitor KVM Switch 2x2 HDMI 4K@60Hz 4:4:4 HDCP 2.2 Supports Extended Didplay and PC1 PC2 Display on 2 Monitors Separately

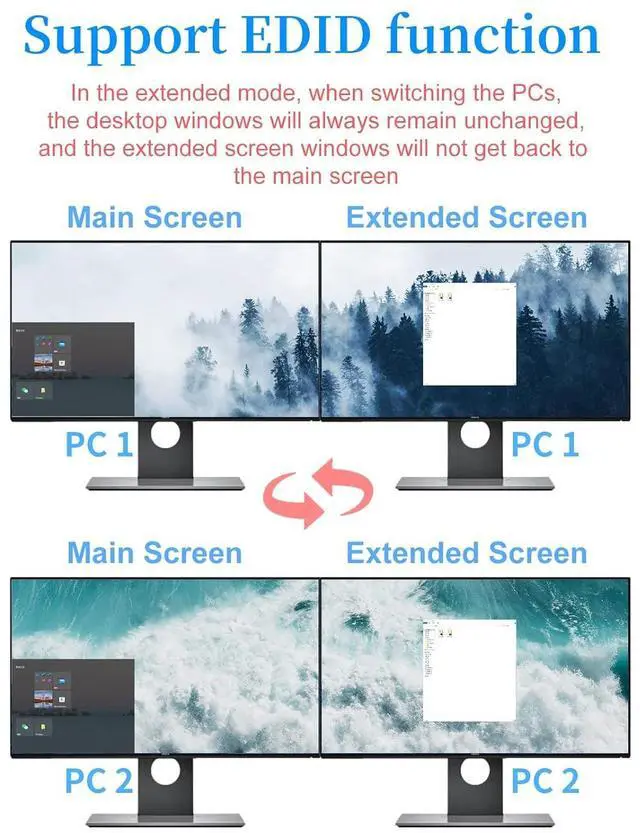

Supports the max resolutions of input and output is 4K 3840x2160p 60hz.Supports HDMI 2.0, HDR and HDCP 2.2.Supports USB 2.0 and USB 1.1.No driver needed, plug and play, very convenient to use, compatible with most of the general keyboard & mouse or mechanical, game keyboard & mouse.Supports multiple swap methods like hotkeys, mouse, push buttons, remote control and RS232 code.Supports windows, Mac, Linux, Raspberry PI etc. systems.Built-in ESD protection function, supports hot plug.Supports keeping windows in both monitors when swap to another PC then swap back. the windows in the second monitor will not go back to the main monitor.

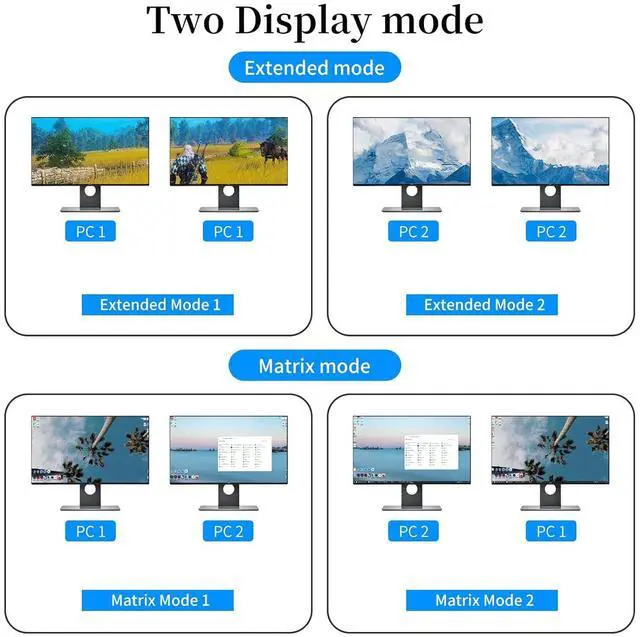

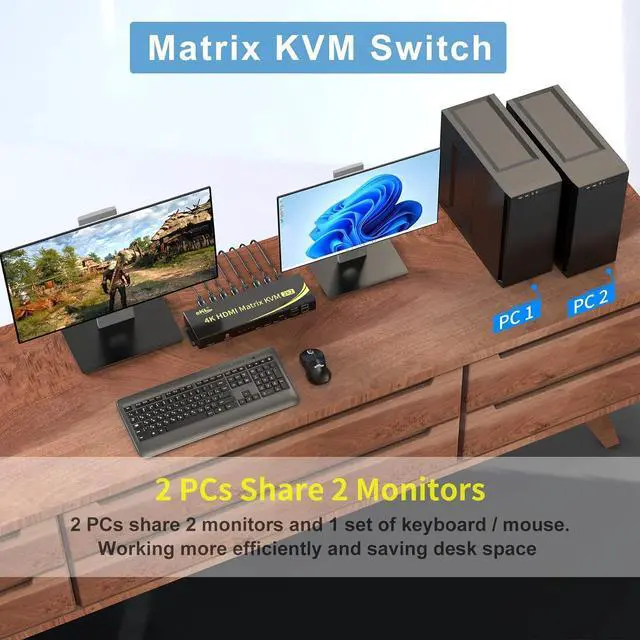

Supports 2 PCs sharing with 1 set of keyboard & mouse and 2 monitors, the 2 monitors can display the same contents and individual content simultaneously. supports mirror mode, extender mode and matrix mode. also supports keyboard & mouse pass through, very convenient to operate 2 PCs back and forth. Supports HDMI 2.0 and HDCP 2.2, the max resolution is 4K 3840x2160p 60hz.
When in matrix mode, you can use keyboard and mouse seamless pass through in both PCs, no extra switching command. no delay, no need to install any drivers. improve your work efficiency.
Compatible with most of the keyboard and mouse devices (except wireless bluetooth keyboard and mouse). Supports wired, wireless, mechanical, multimedia and gaming keyboard and mouse.
It supports up to 3840x2160 4:4:4 resolution and downward compatible 2K or 1080P.
Double infrared receiver design
built-in infrared receiver+external extended infrared receiver;The built-in infrared will work with the remote control if you put the kvm switch on your desktop;The external extended infrared will work with the remote control if you put the kvm switch into your cabinet;Make your desktop cleaner.

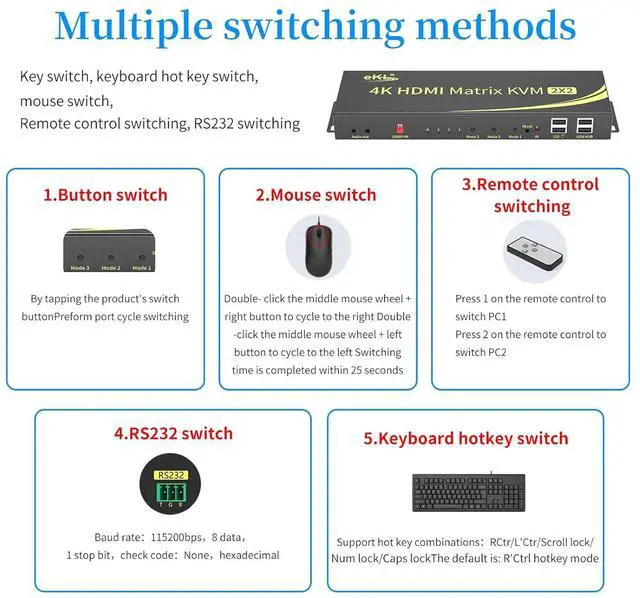

Multiple swap methods
button switchkeyboard hotkey switchmouse switchRS232 code switchremote control switchauto switch, need to set the fixed switching time from 8-999s.

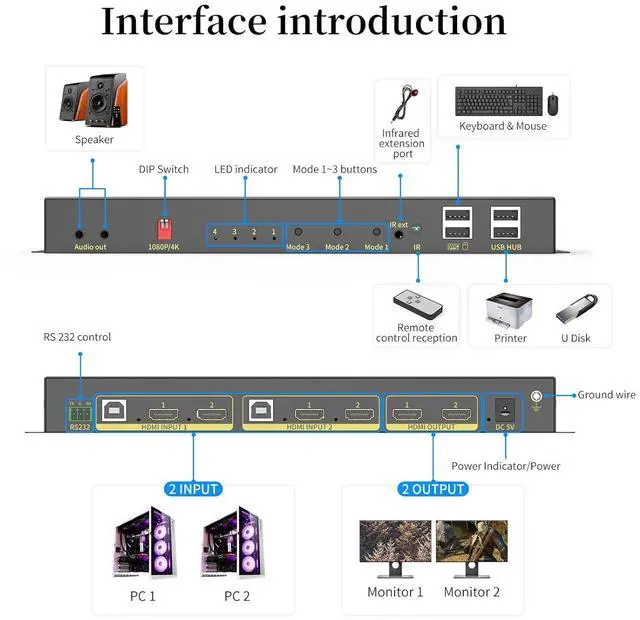

Hotkey ports & USB hub ports
hotkey and mouse switch need to plug the keyboard&mouse to the dedicated keyboard&mouse ports. you can plug usb devices to the USB hub ports like printer, U-disk etc. NOTE: if some of the mechanical or game keyboard&mouse don't work well with this unit, try to plug them to the USB hub ports, that will work but the hotkey switch will not work.
If your two monitors conflict in 4K, try to change both resolution from 4K to 1080p.
Rack mount design, it's very convenient for you to fix this unit on the wall or under the desktop.
Two USB 2.0 hub compatible with most of the USB devices like printer, usb camera, U-disk etc.
Support the audio of 2 PCs output simultaneously(when in mode 3 and mode 4).
How to get the audio worked?
the DVI output does not carry audio signals, so the audio signal cannot be outputed to the speaker.the HDMI output, please follow the steps to set it up.Windows7 for example
first, right-click the icon of "small speaker" in the bottom right corner of the desktop.the menu bar pops up, click "playback device (P)", then we enter the sound control panel, select your (HDMI) monitor as the default output.

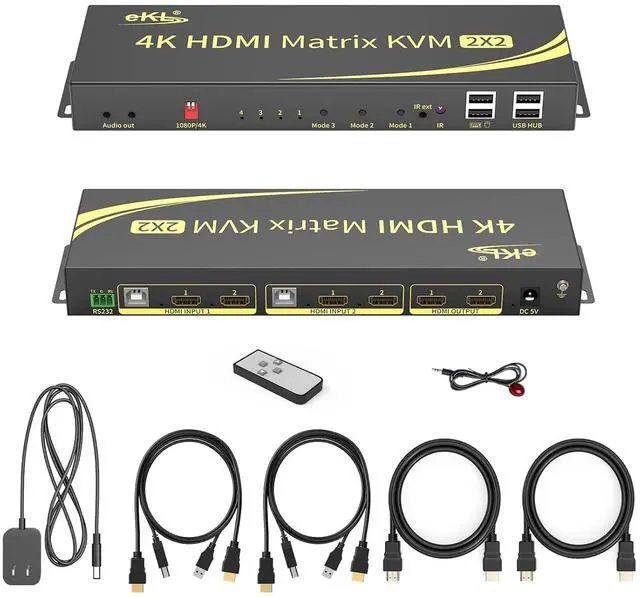

Key Features: eKL 2 Port Dual Monitor Matrix KVM Switch (HDMI + HDMI) Port, EACH PC MUST MAKE 2 VIDEO CONNECTIONS FOR DUAL MONITORS Keyboard and Mouse Seamless Pass Through Great Compatibility of Keyboard and Mouse True 4k Display Resolution Dip switch Rack mount USB 2.0 hub Double audio output
