Does Everything You Need!
- 2 computers / laptops share one set of keyboard, mouse, dual monitors and more USB 3.0 peripherals;
- Dual monitor outputs support up to 4Kx2K (3840*2160) @60Hz (HDMI 2.0) for extended, mirrored or spliced display;
- Support wired or wireless keyboard and mouse with USB pass-though technology;
- Cross support most major OS including Windows, Linux, Mac;
- Advanced switching modes: keyboard Hotkey, mouse clicks, push button, auto scan and wired remote;
- With 2 extra USB 3.0 HUBs for high speed data transfer up to 5Gbps (10 times faster than USB 2.0) ;
- The USB 3.0 cable Also draws power from USB 3.0 port on computers to drive the KVM switch;
- Support HDMI digital audio (default) and swapping between computers.
- Include all cables needed except cable for monitors.
- Power off everything before installation;

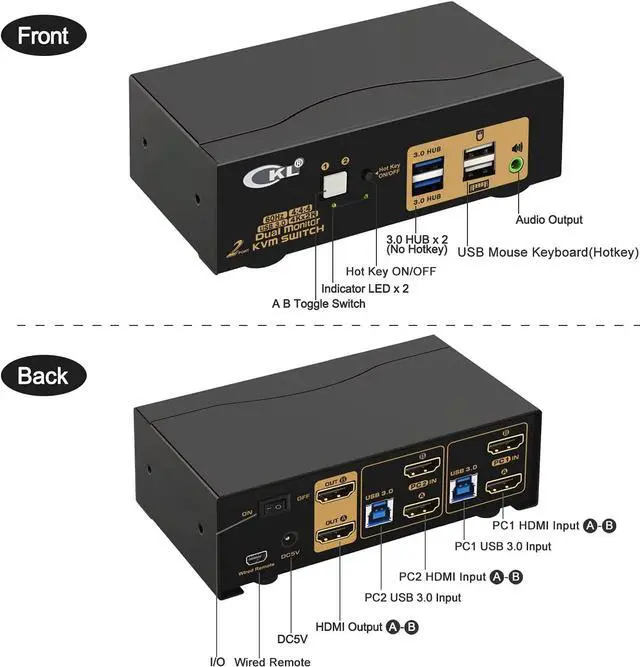

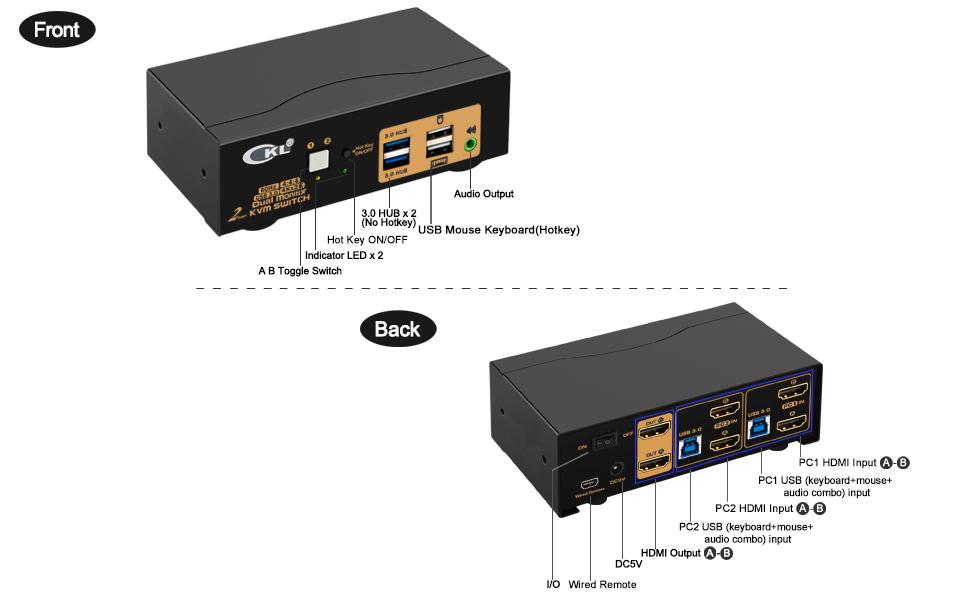

- Computer 1: Connect 2 HDMI outputs from computer 1 to HDMI IN 1 A and HDMI IN 1 B ports; Connect USB A-male to USB 3.0 port on computer 1, and USB B-male to USB 1 input on the KVM switch;
- Computer 2: Connect 2 HDMI outputs from computer 2 to HDMI IN 2 A and HDMI IN 2 B ports; Connect USB A-male to USB 3.0 port on computer 2, and USB B-male to USB 2 input on the KVM switch;
- Primary Monitor: Connect primary monitor to HDMI Out A;
- Extended Monitor: Connect extended monitor to HDMI Out B;
- Keyboard and Mouse: Connect keyboard and mouse into USB keyboard and mouse port respectively;
- Connect USB peripherals to USB 3.0 ports if needed (optional);
- After cables being connected, power on the kvm switch first, then monitors, then computers.
Friendly Reminder:
1. Some keyboard with special features like gaming, programing, multi-media, mechnical, back lights may not be well supported on the USB keybaord and mouse port which are dedicated for hotkeys, if so you can plug the keyboard and mouse into the USB 3.0 ports or turn off the hotkey then the USB keyboard and mouse port will turn into standard USB 2.0 port, without hotkeys, you can use the included wired remoter to switch between computers.
2. If you are using wireless set of keyboard and mouse which share a unifying dongle, you can plug the dongle into either the USB keyboard or mouse port (hotkey supported), or USB 3.0 port (no hotkeys).
3. The USB 3.0 cable Also draws power from USB 3.0 port on computers to drive the KVM switch, also included a USB to DC power cord as additional power supply if in case the computer does not have a USB 3.0 port.
This Dual Monitor KVM Switch requires 2 HDMI input for each computer and 2 HDMI output for monitors. However, most computers especially laptops do not have dual HDMI output, thus reliable adapters will be needed for non-HDMI outputs like VGA, DVI, USB C, DisplayPort.
Please be aware of this before order and contact CKL Support for reference if needed!
Enjoy High Resolution up to 4Kx2K 60Hz
This KVM Switch supports HDMI digital output only. Make sure you select HDMI Audio Output or Monitor A audio (monitor on HDMI Out A) as default in your sound settings. Do not select your audio device as the default sound device, otherwise the audio would not work properly. Some older monitors which do not support HDMI audio will not work with the audio function. The workaround is to add an USB to Audio adapter (Ref. ASIN B00IRVQ0F8) to one of the USB 3.0 HUB ports on the front panel.
Cross support most major OS including
Windows, Linux, Mac and more.
- Extended Display
- Mirrored Display
- Spliced Display

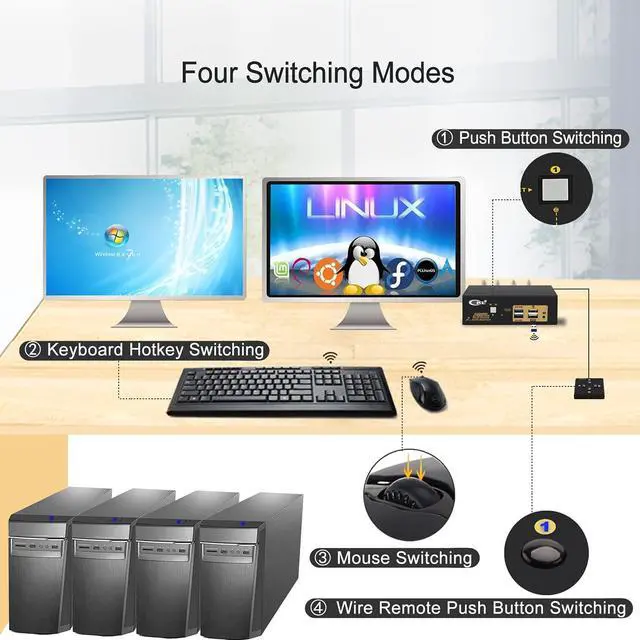

- Keyboard Hotkey
- Double Click the middle roller of mouse
- Push Button on front panel.
- Wired remote switch
- Auto Scan with adjustable interval time between 8-999 seconds

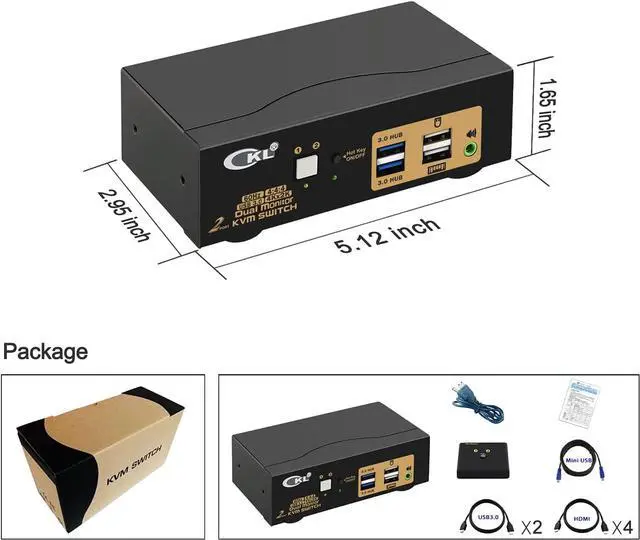

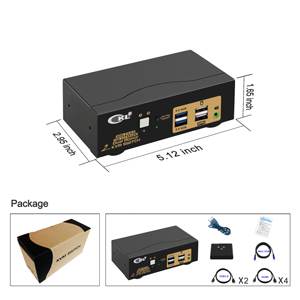

1* 2 port USB3.0 Dual Monitor KVM HDMI
1* Mini USB Cable+Wired Remoter
4* HDMI 2.0 Cables (4.92ft)
2* USB3.0 Cables (4.92ft)
1* USB Power Cable(US PLUG)
1* User manual in English
Note:
The HDMI cables for monitor is not including!
