Displayport KVM Switch 2 Monitors 2 Computers for 2 Computers Share 1 Monitor 4K 60Hz 4:4:4, with Audio and USB 2.0 HUB

Hooking up 2 dual Display Port desktops and / or Laptops to share one set of keyboard, mouse and 2 monitors for extended, mirrored display
Supports max resolution up to 4096x2160@60Hz 4:4:4.
Easy set up and easy switch.
Compatible with Windows 10/7/2000/XP/Vista, Linux, Mac, Debian, Ubuntu, Fedora, Raspbian and Ubuntu. Plug and Play without any software needed.
With audio, Mic output and extra 2 usb2.0 hub.

1. Control 2 computers or laptops with one set of keyboard, mouse and 2 monitors.

2. With 2 monitors output for extended, duplicated and spiced display purposes.

3. Support up to 4K@60Hz (4096*2160 4:4:4).

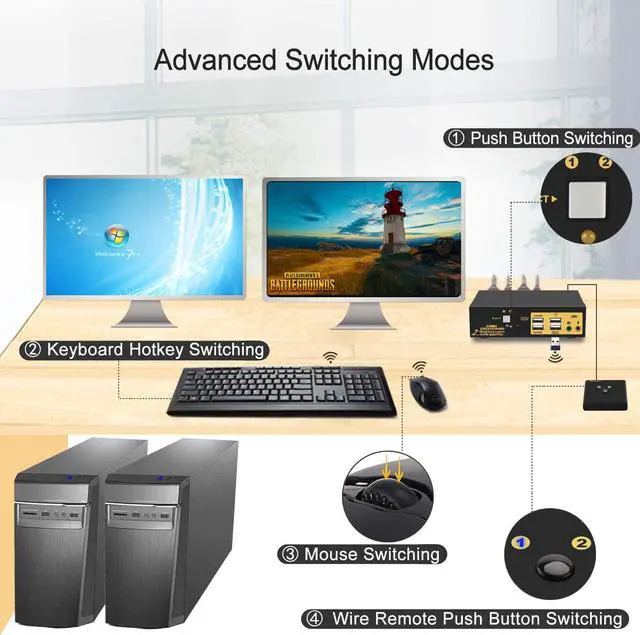

4. Multiple Switching Modes: 1. keyboard hotkey 2. mouse click 3. manual button 4. wired remote 5. auto scan.

5. Cross support multi platforms inlcuding Windows 10/7/2000/XP/Vista, Linux, Mac and More.

6. Support most wired and wireless keyboard and mouse.

7. WIth extra 2 USB 2.0 HUB ports and audio support.

8. Fast shipping and efficient support.

Switching Freely between Home, Work and Gaming PC

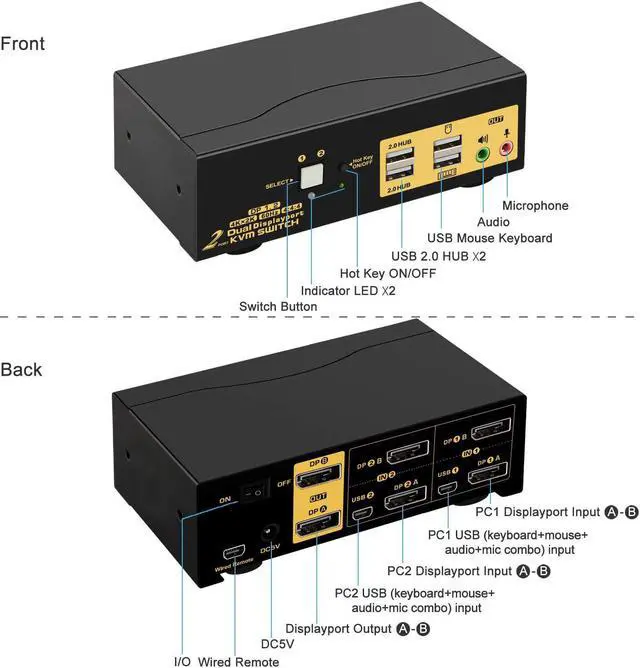

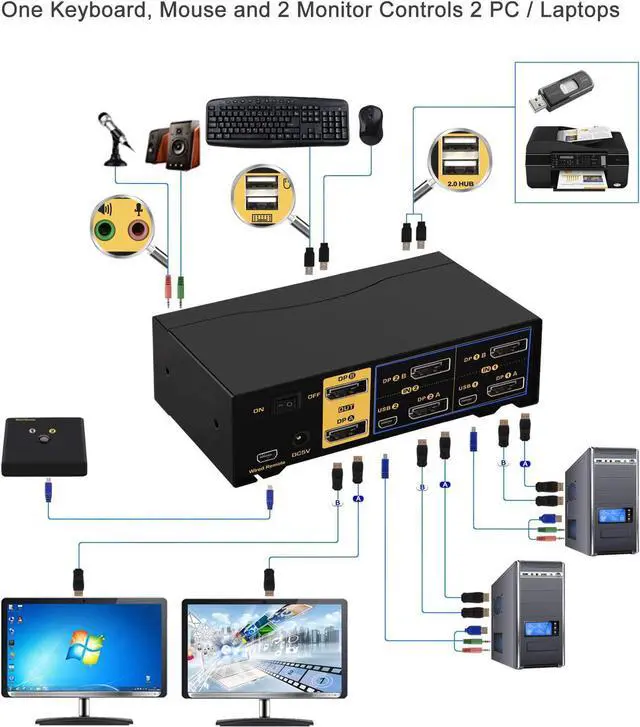

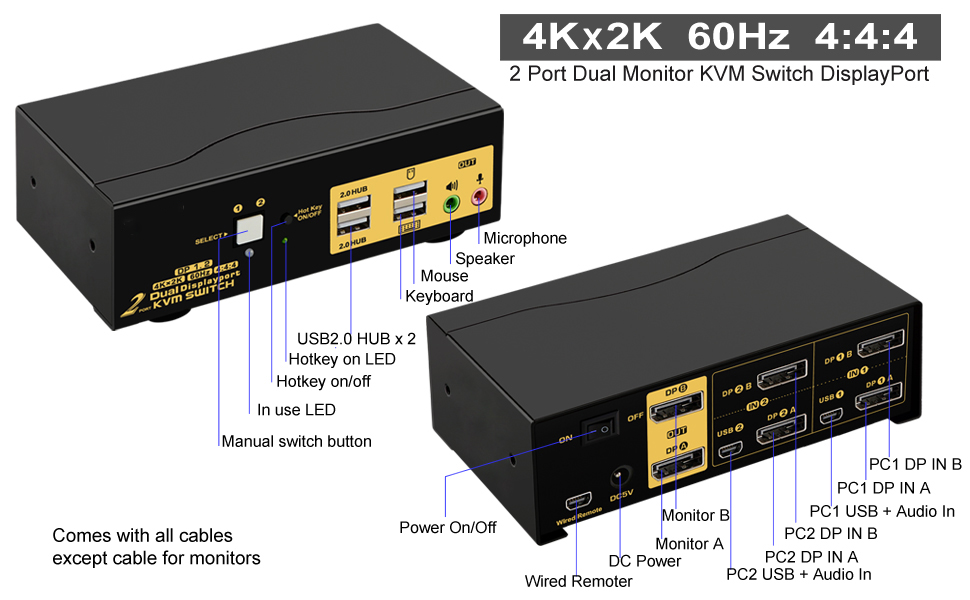

Installation Guide (incorrect connection will cause malfunction):

PC 1 : Connect 2 DP outputs on PC 1 to DP IN 1A & 1B on the kvm, and USB + Audio combo to USB 1.
PC 2 : Connect 2 DP outputs on PC 2 to DP IN 2A & 2B on the kvm, and USB + Audio combo to USB 2.
Monitors: Connect Monitor A to DP A Out, Monitor B to DP B Out.
Wired Keyboard & Mouse: connect Keyboard to USB keyboard port, mouse to USB mouse port
Wireless Keyboard and Mouse: Connect the wireless dongle into USB keyboard port
Power Adapter: connect the power adapter to DC input.
Audio Devices: Connect speaker or microphone output on KVM (optional), make sure the audio jacks are also plugged into your computers if needed.
Power on the KVM and computers.

Special Notes:

USB connecion is to ensure keyboard and mouse work properly.
What if my computer or laptop only has one Display Port output? In this case, you will need reliable adapters or docking station for non-DP outputs. Please be aware of this before ordering!
Some gaming, programing or michanical keyboard and mouse may not work well from the decicated USB keyboard and mouse ports, if so, connect them to standard USB2.0 ports. or turn off the hotkey then the USB keyboard and mouse port will also become standard USB 2.0 HUB port This option does not support hotkeys. but you can use the wired remoter to switch between devices easily.

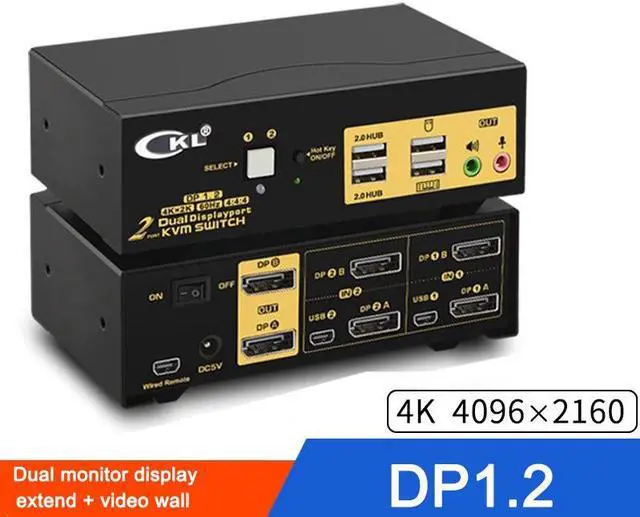

Support 4096*2160@60Hz with DP1.2 Protocol, not compatible with DP1.4 version, 100Hz, 120Hz and 144Hz.

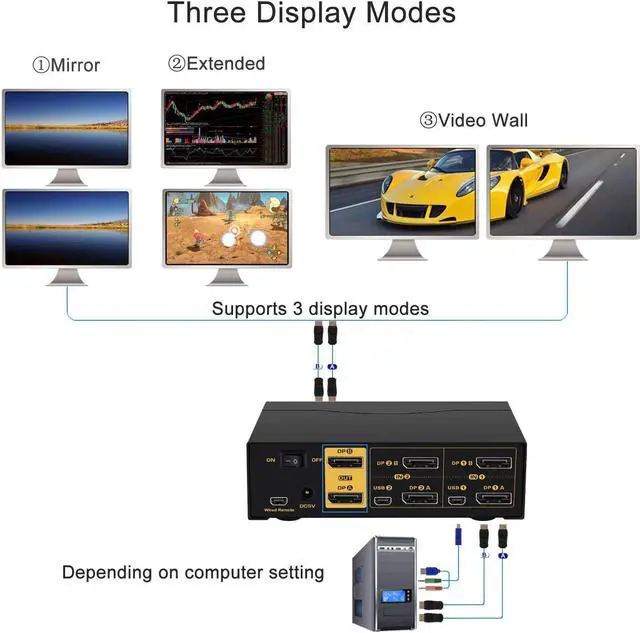

3 Display Modes

5 Switching Modes

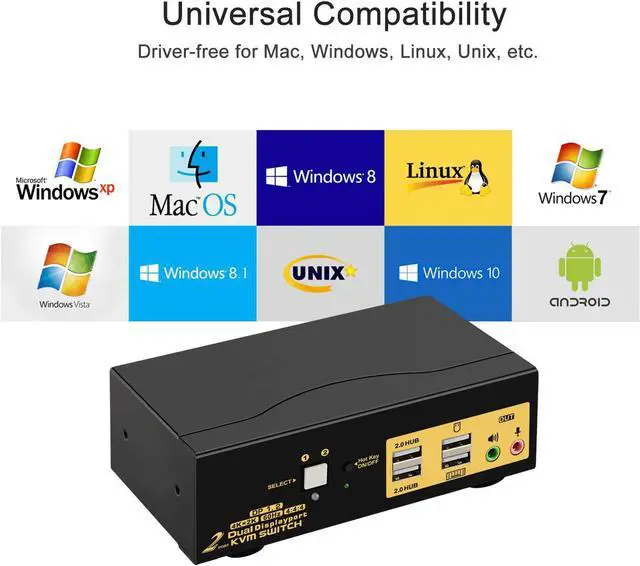

Cross Support Multi Operation Systems

Cross support multi platforms inlcuding Windows 10/7/2000/XP/Vista, Linux, Mac and More.
