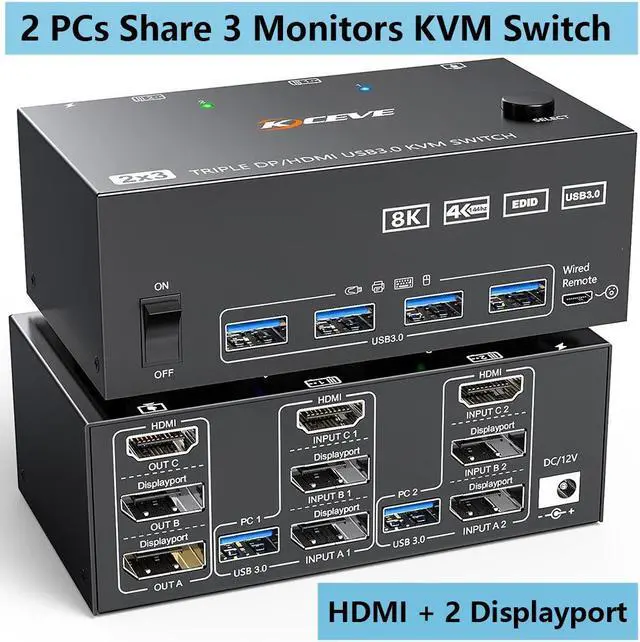

DP + DP + HDMI Triple Monitors KVM Switch 2 PC 3 Monitors Share 4 USB 3.0 Devices
HDMI + 2 Displayport KVM switch TRIPLE MONITOR is a good helper for office and home
- Allow you to control 2 computers by only one set of wired or wireless keyboard mouse,share 4 USB 3.0 devices and 3 monitors
- Triple monitor KVM Switch has three independent circuit boards, A, B and C,suitable for 2 computers share 3 monitors, 2 monitors or1 monitor, giving you more choices
- This 2 computers 3 monitors KVM switch supports the use of a variety of converters and docking station,such as DP to HDMI, powered HDMI to DP, MINI DP to DP, USB C to DP/HDMI adapter and USB C docking station
- Please check your computer configuration before placing an order.

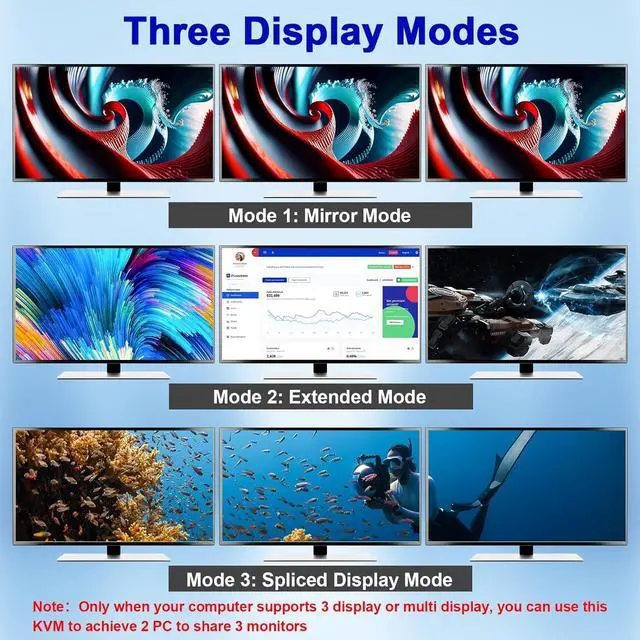

HDMI Displayport KVM Switch Three display modes
Support extended mode, mirror mode and splicing mode
- After connecting the computers and the monitors through KVM, you need to set the screen output mode on the computer (press Windows+P) and select the output mode in the pop-up window on the screen. Otherwise, only one of the two connected monitors has an image.
- Only when your computer supports 3 display or multi display, you can use this KVM to achieve 2 PC to share 3 monitors.
- Please use the 12V power adapter ( include in the package) to power this Displayport and HDMI triple Monitors KVM switch.
USB 3.0 DP + DP + HDMI KVM switch triple monitor Features

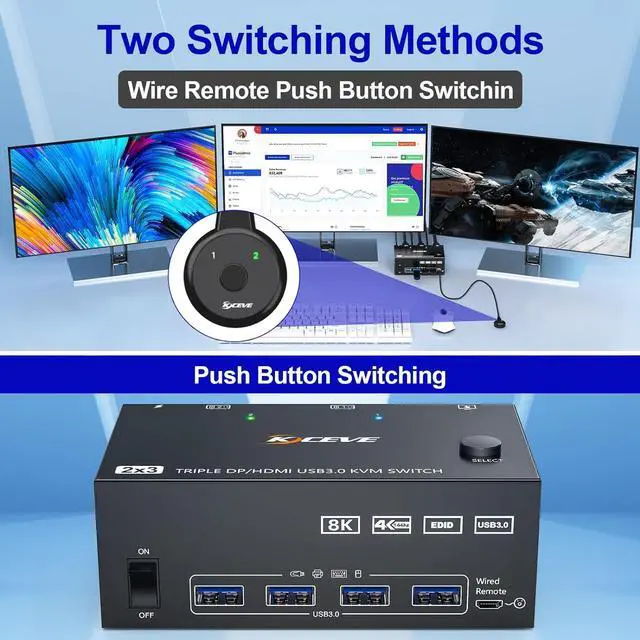

- Switching modes: Physical button and wired remote
- High compatibility,canauto-match source and display device
- supports ultra-fast USB 3.0 data transfer, which is 10 times higher than USB 2.0, Data transfer speeds up to 5Gbps
- Support most major OS including Windows, Linux, Mac
- HD-MI 2.1 Compatible input and out put ports
- Three display modes :extended mode, mirror mode and splicing mode
- Displayport 1.4 Compatible input and out put ports
- Built in automatic adjustment system, make the image smooth, clear and stable
- Simple to install,plug and play

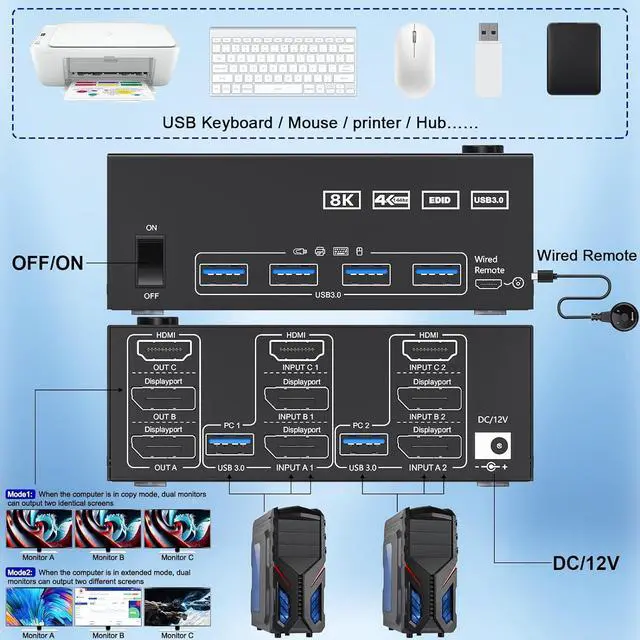

How to Connect the KVM Switch?
- Triple monitor KVM switch each computer requires 1*HDMI+2*Displayport +1* USB cable to connect the 3 monitor KVM switch,OUT A, OUT B, OUT C connect to 3 monitors.
- Adapters will be needed if your PC does not have 2*DP+1*HDMI ports.
- Step 1. Connect 1*HDMI+1*DP cables+1*DP cables+1*USB cable between INPUTA1 and KVM
- Step 2. Connect 1*HDMI+1*DP cables+1*DP cables+1*USB cable between INPUTA2 and KVM
- Step 3.Connect 1*HDMI+1*DP cables+1*DP cables+1*USB cable between OUT A monitors and KVM
- Step 4. Connect your USB device (keyboard, mouse, printer, USB stick, etc.) into the USB 3.0 port on the KVM.
- Step5.Connect DC/12V Adapter to KVM Switch
- Step6. Insert the wired remote into the "SELECT" port to remotely switch between PC1 and PC2.

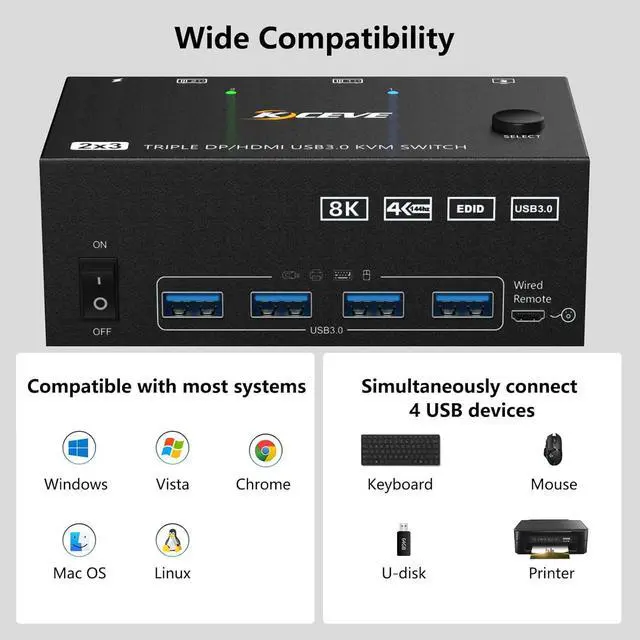

Suitable for multiple systems
Driver-free for Windows 11/10/8/7/Vista/XP and Mac OS,Linux.
8k@60Hz/4k@144Hz UHD Resolution
Support resolution up to 8K@60Hz/4K@60Hz/2K@60Hz and backward compatible with lower resolution.
4-Port USB 3.0 with Data transfer speeds up to 5Gbps.
- USB 3.0 KVM Switches come with 4 USB 3.0 ports for sharing USB devices, such as mouse, keybaord, scanners, printers, U disks and other USB devices
- Upgraded USB 3.0 version ensure data transfer more faster and stable, it's a great solution to solve many USB device disconnected issue during use.
This HDMI+2 Displayport Triple Monitor KVM Switch supports 8k@60Hz/4k@144Hz, which our engineers tested many times.
- The exact resolution you get depends on your computer, HD-MI cable version and length, DP cable version and length and if your screen supports 8K. you can get 8K resolution only if everyone supports 8K.
- Please Check if your hardware devices support 8K. It is recommended to use a 8K HDMI 2.1 cable and a DP1.4 cable, the length of which should not exceed 1.5 meters, and a 8K monitor.
- Plug and play, drive-free, widely used in many occasions, such as office, conference, teaching, performance, live broadcast, home theater, etc.
- Note: Only when both your computer Graphics card and monitor support 8k@60Hz/4K@144Hz then you can get 8k@60Hz/4K@144Hz effect, so if you want the max resolution you have to check your devices first.
