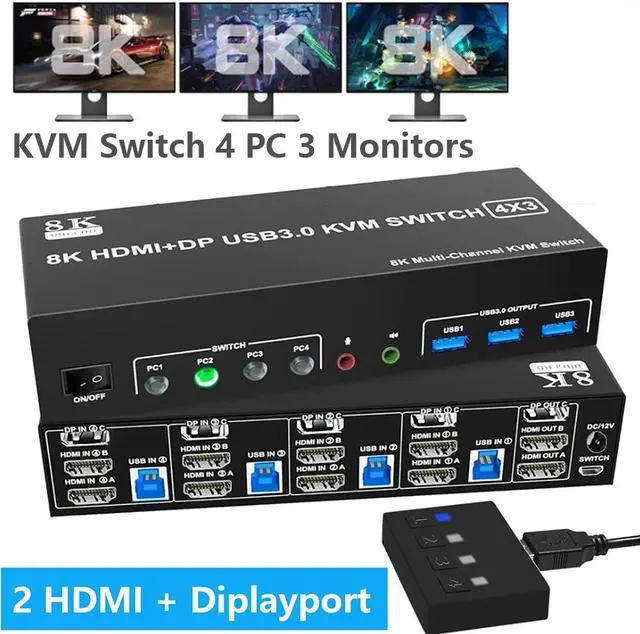

8K 60Hz 4x3 2 Channel HDMI + 1 Channel Displayport USB 3.0 KVM Switch allows you to share one USB keyboard, USB mouse, and two HDMI monitor & one DP monitor to control 4 computers, laptops, game consoles.
It is designed for multitask with four computers at your necessary, increasing productivity in the office or at home ; You can switch between 4 computers using a manual switch located on the top of the KVM unit.
Features:
1. 8K Triple Monitor KVM Switch 4-Port allows 4 computers/laptops share one set of keyboard, mouse, and 3 monitors (2 HDMI + 1 DisplayPort)
2. Support HDMI 2.1 and DP 1.4 standards and downward compatible. 3 monitors output support up to 8K@60Hz for extended,mirrored or spliced display (Depends on your computer's graphics card.);
3. 2 Switching modes: Button switch and wired remote.
4. KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output
5. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS
6. The ports that need to plug in HDMI/DisplayPort/USB cables are all hidden behind the triple monitor KVM switch, so the desktop doesn't get cluttered, you can enjoy the clean work space.
1. Insert the DC/12V adapter into the KVM ;
2. Plug the HDMI / DPcable into the KVM and monitor;(Output)
3. Plug the HDMI / DP cable and USB cable into the KVM and your computer/laptop (HDMI and DP cables are not included)(Input)
HDMI IN1 A + HDMI IN1 B+DP IN1 C + USB IN1=PC1
HDMI IN2 A + HDMI IN2 B+DP IN2 C + USB IN2=PC2
HDMI IN3 A + HDMI IN3 B+DP IN3 C + USB IN2=PC3
HDMI IN4 A + HDMI IN4 B+DP IN4 C + USB IN2=PC4
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 HDMI cables+ 1 DP cable+1 USB cable) connect to the KVM.
2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
3. Before purchasing this HDMI + DP triple monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally,Otherwise, the KVM will not be available.4. Note: HDMI and DP cables are not included
Supports 5Gbps data transfer speed , can transfer files in Seconds, Much faster than USB 2.0.
3 x USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.
Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).
Please note: This KVM does not support hotkey switching.

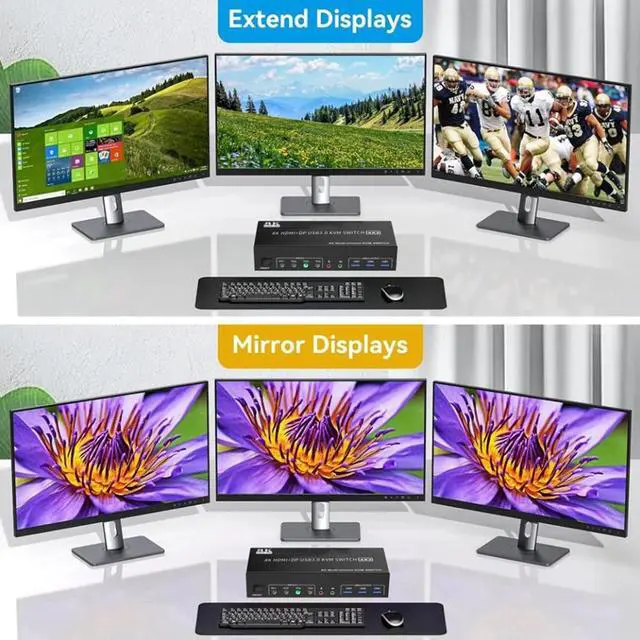

2 Display Modes
- Extended Display
- Mirrored Display
If you are a designer or illustrator, you can use this mode to see the effect while working.
- 1)Extended mode can output three different screens and mirror mode can output three identical screens. Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
- 2) The requirement for this KVM to achieve a Triple-screen display is that each PC you connect to has the capability to support a dual or multi-screen display. This has nothing to do with KVM.
