Features:
1. DisplayPort KVM Switch 2 Port allows 2 computers/laptops to share keyboard, mouse, and 2 monitors (DisplayPort+ DisplayPort).
2. Dual monitor output supports up to 8K@60Hz/4K@120Hz, Ultra HD, HDR 10, Dolby Vision, 3D effect.
3. Support DP 1.4, transfer speed up to 32.4Gbps, backward compatible with DP 1.2.
4. 2 switching modes: Push button switch and wired remote control.
5. With 3 additional USB 3.0 ports and independent audio microphone output.
6. Plug and Play, compatible with Windows/Vista/XP and Mac Os, Linux and Unix
7. The ports that need to connect DisplayPort/USB are all hidden behind the 2-monitor KVM switch, so that your desktop is not cluttered and you can enjoy a clean workspace.

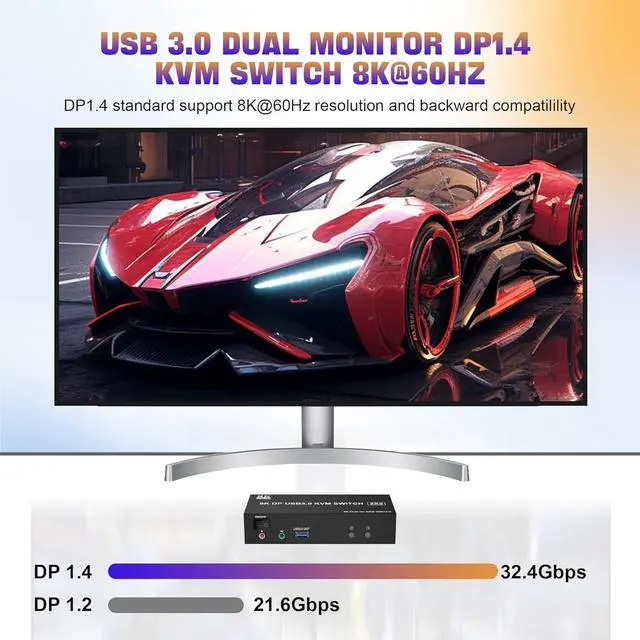

Supports up to 8K@60Hz/4K @120Hz, Ultra HD, HDR 10, Dolby Vision, 3D effect. Supports DP 1.4, transfer speed up to 32.4Gbps, backward compatible with DP 1.2
Note: Only if both your computer's graphics card and monitor support 8K@60Hz, you can achieve the 8K effect at 60Hz. So, if you want the maximum resolution, you need to check your devices first.

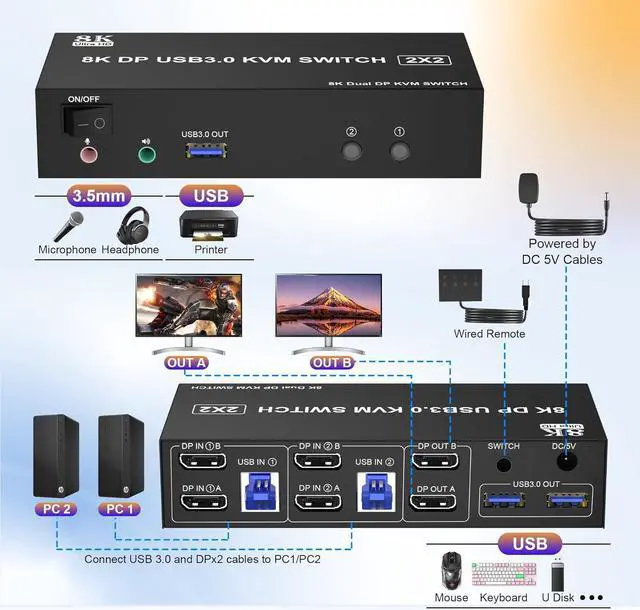

1. Connect the power adapter to the KVM;
2. Connect the 2 DisplayPort cable to the KVM switch and monitor (output)
3. Connect the DisplayPort cable and USB cable to the KVM switch and computer/laptop (DP cables not included) (input)

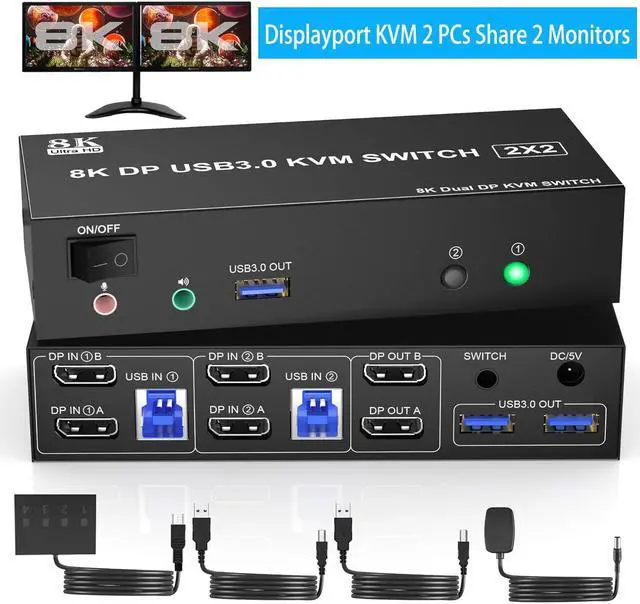

Please check whether DP IN 1A, DP IN 1B and USB IN 1 match and whether DP IN 2A, DP IN 2B and USB IN 2 match. A mixed port isn't supported.
DP IN 1A + DP IN 1B + USB IN 1=PC1
DP IN 2A + DP IN 2B + USB IN 2=PC2
4. Connect the mouse and keyboard to the KVM switch
5. If necessary, you can connect a microphone and an audio connector.
Note:
1. Most of the reasons why only one video output works are due to an incorrect port. Make sure that each computer with 2 DP cables is connected to the KVM.
2. If the KVM switch does not work, you can turn off the switch on the control panel and turn it back on after 2-3 seconds.

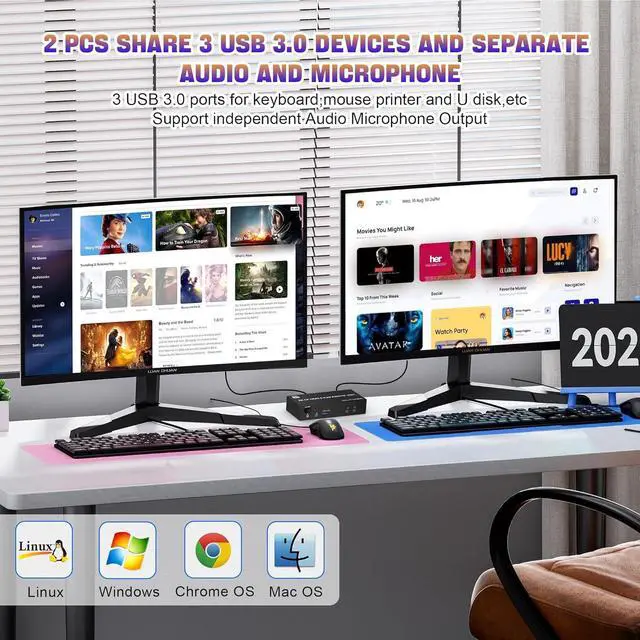

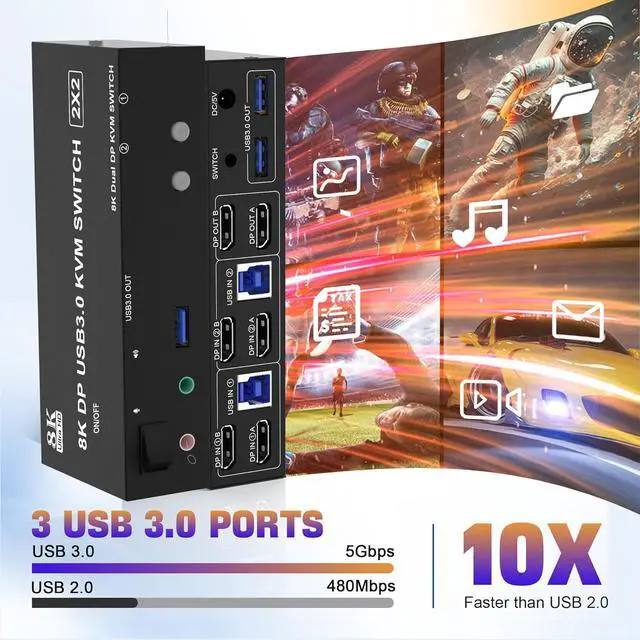

3 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, allow sharing of USB devices such as keyboard, mouse, scanner, printer, flash drive etc. The USB 3.0 standard provides data transfer speeds of up to 5Gbps, while the USB 2.0 port only offers a transfer speed of 480Mbps.

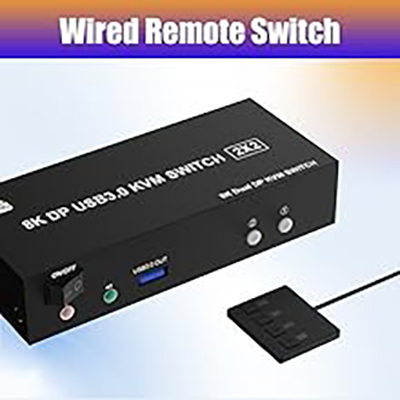

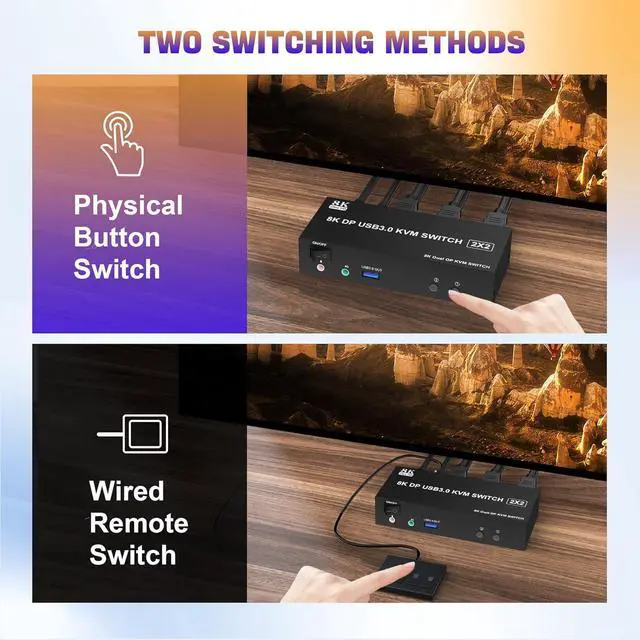

Support wired switching for easy cable management, you can switch directly to your desktop, convenient for your life and work

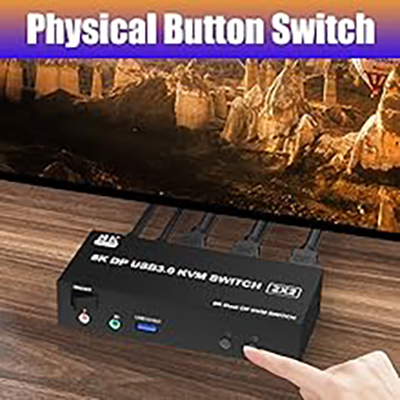

The push-button design allows you to switch between the KVM switch at the touch of a button, eliminating frequent connection and disconnection of cables, saving space and time.

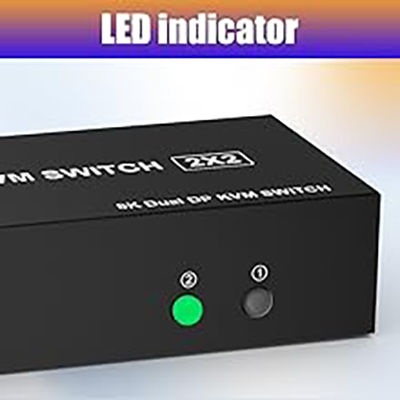

When switching to which PC, the LED indicates whether PC1 or PC2 is active

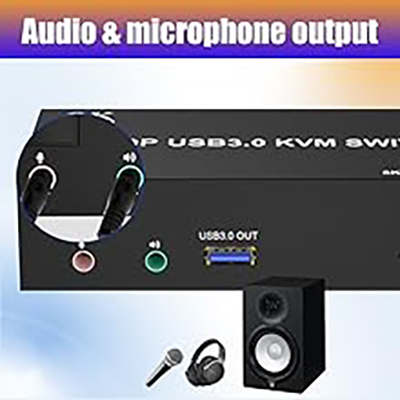

The dual monitor KVM switch features a 3.5mm audio jack with a DAC chip inside, which can be connected to a 3.5mm 3-segment headset device, and a 3.5mm microphone interface that can be connected to a 3-segment microphone.
