8K@60Hz 4K@144Hz KVM Switch for 3 Monitors 2 Computers Sharing 3 Monitor, 3 USB 3.0 Ports, Audio & Microphone, 1000Mbps LAN Ethernet
Features:
1. Triple Monitor KVM allows 2 computers/laptops to share one set of keyboard, mouse, and 3 monitors (2 HDMI+1 DisplayPort)
2. Support HDMI 2.1& DP1.4 standards and downward compatibility. Support up to 8K@60Hz 4K@144Hz for extended, mirrored or spliced display(Depends on your computer's graphics card.)
3. 2 Switching modes: Button switch and wired remote.
4. This KVM Switch share 1000Mbps gigabit ethernet between 2 PCs, providing Internet access for your laptop.
5. Equipped with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output
6. Equipped with a 12V power supply, ensuring stable operation even when high-power devices are connected.
7. Compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry etc.
8. The ports that need to plug in HDMI/DisplayPort/USB cables are all hidden behind the triple monitor KVM switch.
Ultra HD 8K@60Hz Triple Monitor KVM Switch
- Confirms to HDMI 2.1 & DP 1.4 protocol, supports a maximum resolution of 8K@60Hz 4K@144Hz, and is compatible downwards.
- Only when both your computer Graphics card, monitor and cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first.

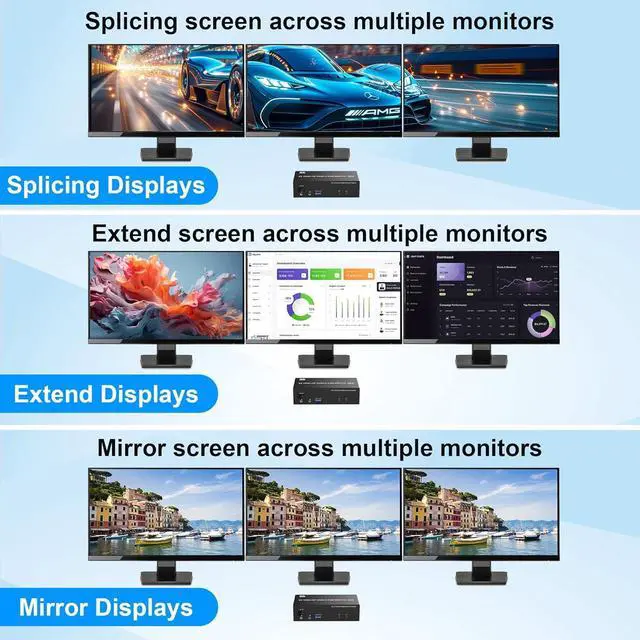

3 Display Modes
Extended Display
Mirrored Display
Spliced Display
1)Extended mode can output three different screens and mirror mode can output three identical screens. Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
2) The requirement for this KVM to achieve a triple-screen display is that each PC you connect to has the capability to support a triple-screen display. This has nothing to do with KVM.
3 Monitor KVM Switchfor 2 computers Share 1000Mbps Gigabit Ethernet
- The KVM Switch for 3 Monitors 2 Computers share 1000Mbps stable gigabit Ethernet for 2 computers. The LAN port can provide Internet access for your computers.
Please note:
- 2 computers share a gigabit network, maximum support for 1000Mbps input, rate dependent on network service provider.

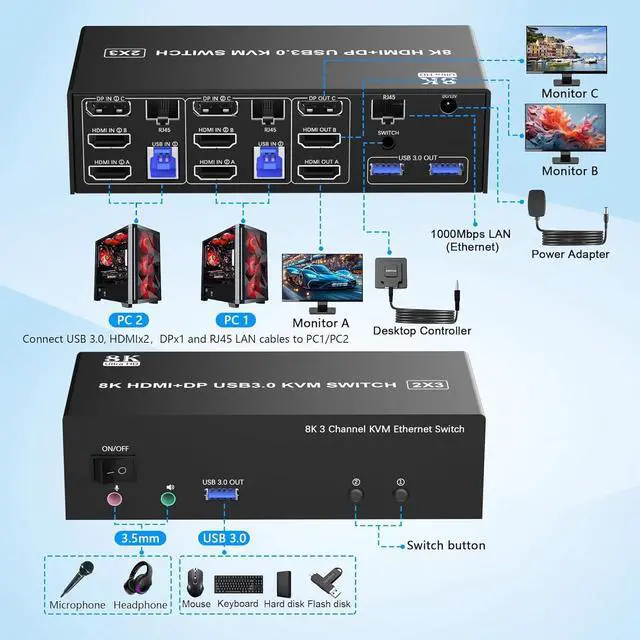

installation steps:
1. Insert the DC/12V adapter into the KVM ;
2. Plug the Ethernet RJ45 cable into the KVM switch;
3. Plug the 2*HD-MI cable and 1*DisplayPort cable into the KVM switch and monitor;(HDMI OUT A, HDMI OUT B, DP OUT C)
4. Plug the DisplayPort cable, HDMI cable, RJ45 cable, and USB cable into the KVM switch and your computer/laptop (HDMI and DP cables are not included)(Input)
HDMI IN 1A +HDMI IN 1B + DP IN 1C + RJ45 + USB IN 1=PC1
HDMI IN 2A + HDMI IN 2B + DP IN 2C + RJ45 + USB IN 2=PC2
Please check whether HDMI IN 1A, HDMI IN 1B, DP IN 1C, RJ45, and USB IN 1 corresponding, and whether HDMI IN 2A, HDMI IN 2B, DP IN 2C, RJ45 and USB IN 2 are corresponding. Mixed insertion is not supported.
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Please Note:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 HDMI +1 DP+USB cable) connect to the KVM.
2. If the input USB 3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.
3. Note: HDMI, DP and ethernet cables are not included
Triple monitor KVM switches with 3 integrated USB 3.0 ports that can recognize keyboard, mouse, printer, scanner and other USB devices.
Supports ultra-fast USB 3.0 data transfer up to 5Gbps, backward compatible with USB 2.0/1.1 devices.

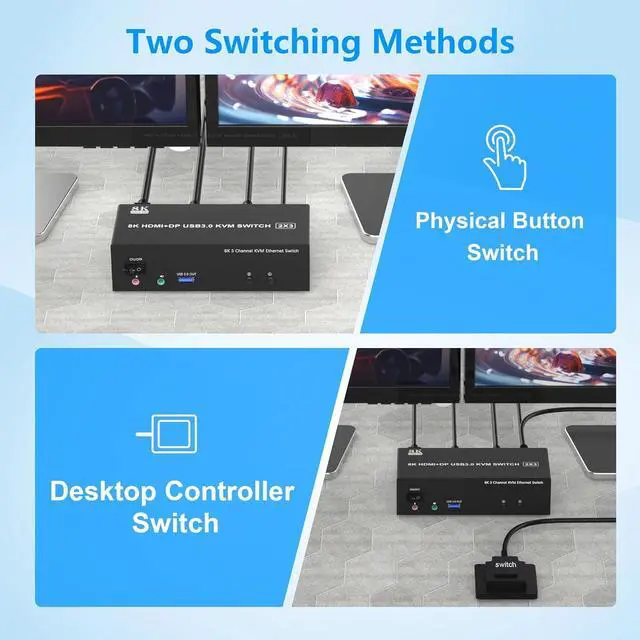

- Push-button design allows for one-touch switching using a button on the KVM Switch box, eliminating the need to plug and unplug cables frequently, saving space and time.
- Supports wired remote switching for easy cable management, you can switch directly on the desktop, convenient for your life and work
- When switching to which PC, the LED will tell you whether PC1 or PC2 is active.
- The 3 monitors 2 computers KVM comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone
What You Get:
- 1x 8K Triple Monitor KVM Switch,
- 2x USB 3.0 Cables,
- 1x 12V Power Adapter,
- 1x Wired Button Switch,
- 1x User's manual
