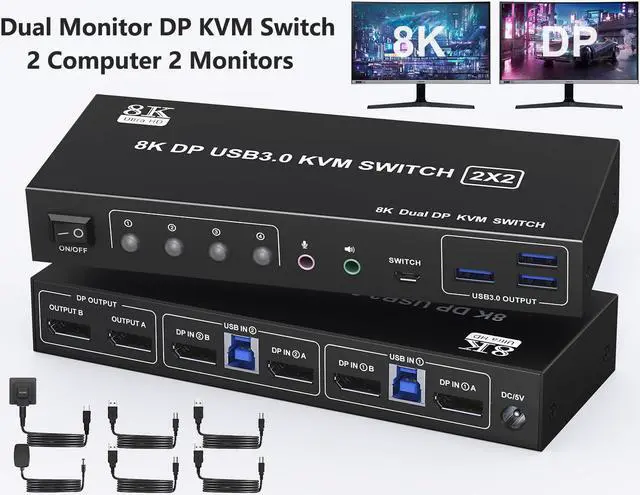

8K Dual Monitor Displayport KVM Switch for 2 PCs 2 Monitors

2 computers share DP dual monitors.
Up to 8K60Hz/4K120Hz.
2 display modes - mirror and extend mode.
Add 3 USB 3.0 ports.
With audio and microphone output.
Plug and play function, no driver required.

Installation steps:

1. Connect the DC/12V adapter to the KVM.

2. Connect the DP cable to the KVM and the monitor (output).

3. Connect the DP cable and USB cable to the KVM and the computer/laptop (input) (2 USB cables are included in the package, no DP cable is provided).

DP IN1 A + DP IN1 B + USB IN1=PC1
DP IN2 A + DP IN2 B + USB IN2=PC2

4. Plug the mouse and keyboard into the KVM switch

Notes:

1. Most of the reasons why only one video output works are due to improper connection. Please make sure that each computer has 2 DP cables connected to the KVM.

2. Please check whether DP IN and USB IN correspond, DP OUT A, DP OUT B correspond, mixed insertion is not supported.

3. For the best audio-visual performance, a short DisplayPort 1.4 cable works better.

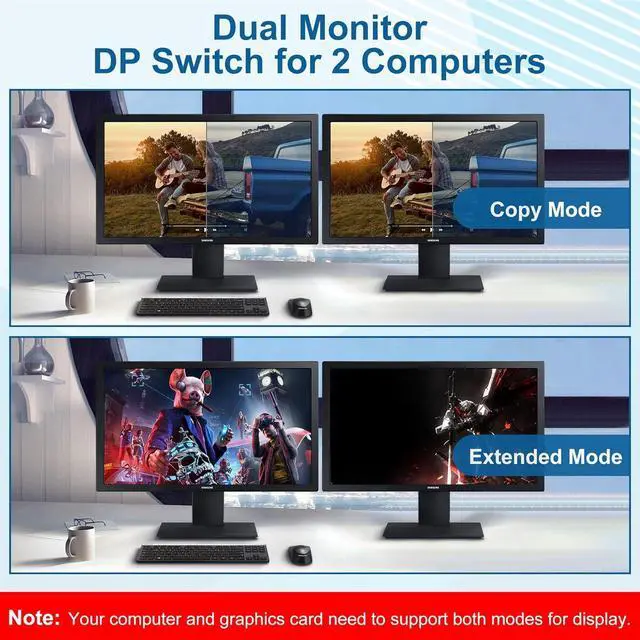

Duplicate and Extend Mode:

In Duplicate mode, both monitors display the same content simultaneously, making it easy to share information.
In Extend mode, each monitor operates independently, allowing seamless transitions between screens and providing a larger workspace for multitasking.
(Note: Your computer's graphics card must support Duplicate and Extend modes for optimal functionality)

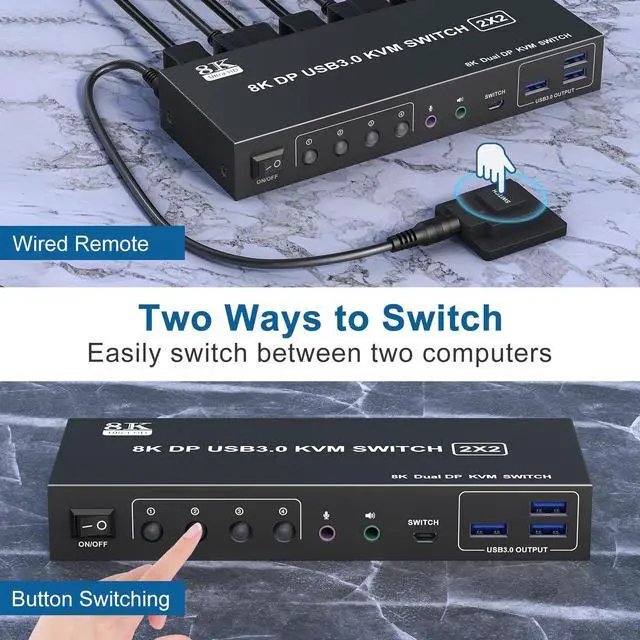

2-Way Switching

1) With the wired remote control button, you can place the KVM outside the working area, making your desk cleaner and tidier.

2) Simply press the button on the KVM box to switch freely between two computers.

UHD 8K@60Hz

Backward compatible with 4K@240Hz, 4K@120Hz, 4K@60Hz, 4K@30Hz and below. (Note: If you want to achieve the maximum resolution, your computer and monitor need to support 8K resolution, and you need to use an 8K DP1.4 cable to connect the devices)

Extra Audio and Microphone Holes

The 3.5mm audio jack and microphone port make it easy to listen, speak or record, and you can enjoy your music uninterrupted.

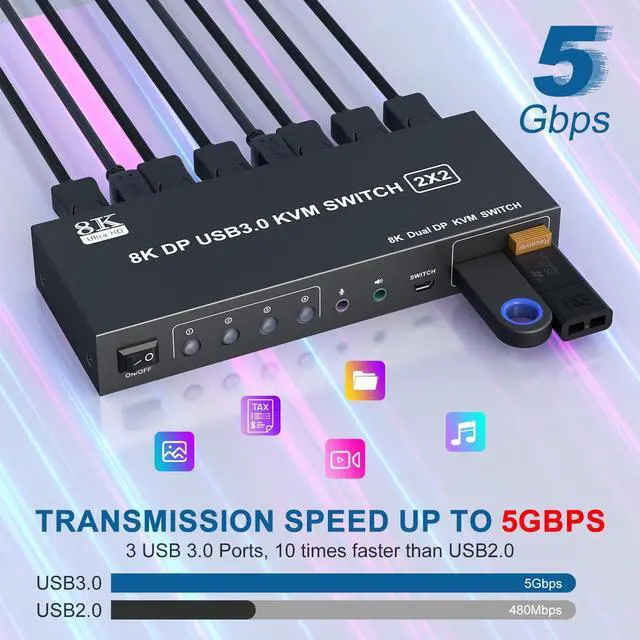

Equipped with 3 USB 3.0 ports

Data transfer speeds up to 5Gbps, and can seamlessly identify USB devices such as keyboards, mice, U disks, printers, etc. It is also backward compatible with USB 2.0/1.1 devices

Type	DisplayPort, USB
Computer Connections	2 Ports
Monitor Connections	2 Ports
Video Resolution	supports resolutions up to 8K@60Hz and is backward compatible with 4K@240Hz, 4K@120Hz, 4K@60Hz, 4K@30Hz and below.
PC Selection	Push Buttons and Wired Remote
Monitors Supported	Displayport Dual Monitor
LED Indicators	Yes

Audio Features	with Audio
Power Features	with 12V Power Adapter
USB Features	Equipped with 3 USB 3.0 interfaces, data transfer speeds up to 5Gbps, and can seamlessly identify USB devices such as keyboards, mice, U disks, printers, etc. It is also backward compatible with USB 2.0/1.1 devices
Application	This dual monitor displayport KVM switch allows you to easily manage 2 computers to share 2 monitors, 3 USB 3.0 devices. Only one set of keyboard and mouse is needed to control two computers and two monitors, greatly improving work efficiency. With just one click of a button, you can easily switch between computers and enjoy seamless control
Features	2 computers share DP dual monitors. Up to 8K60Hz/4K120Hz. 2 display modes - mirror and extend mode. Add 3 USB 3.0 ports. With audio and microphone output. Plug and play function, no driver required.

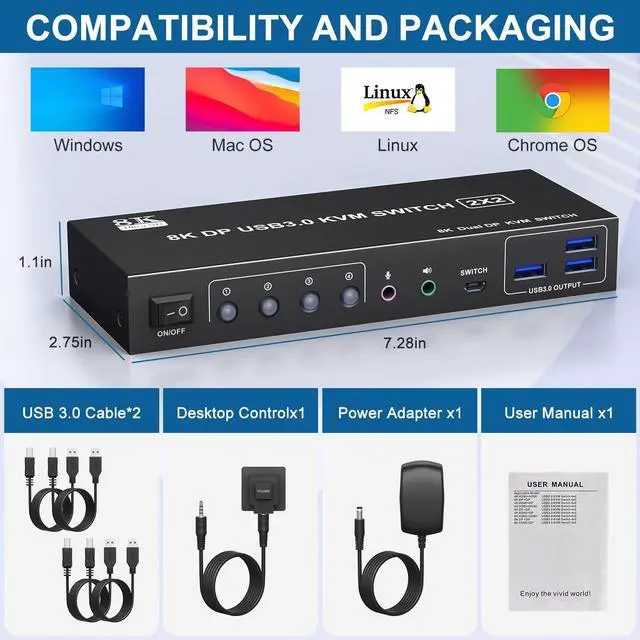

Dimensions	7.27 inch x 2.75 inch x 1.2 inch
Weight	200g
