Advantages:

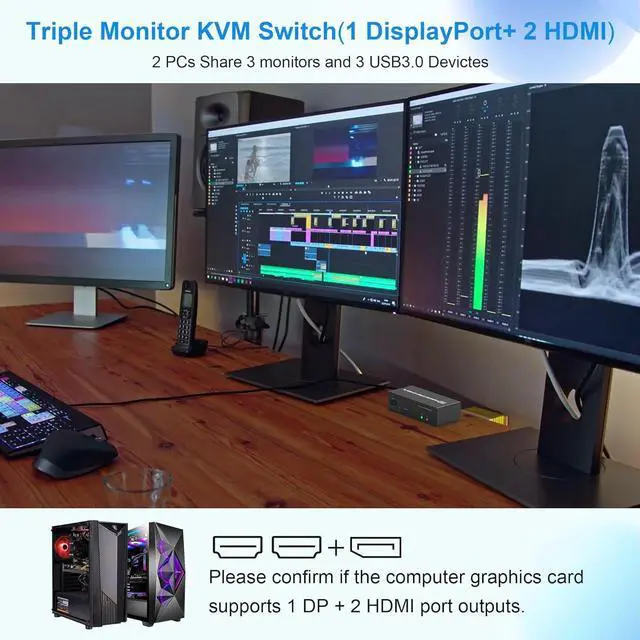

1. Triple Monitor KVM Switch allows 2 computers/laptops share one set of keyboard, mouse, and 3 monitors (2 HDMI + 1 DisplayPort)
2. Support HDMI 2.0 and DP 1.2 standards and downward compatible. 3 monitors output support up to 4K@60Hz for extended,mirrored or spliced display (Depends on your computer's graphics card.);
3. 2 Switching modes: Button switch and wired remote.

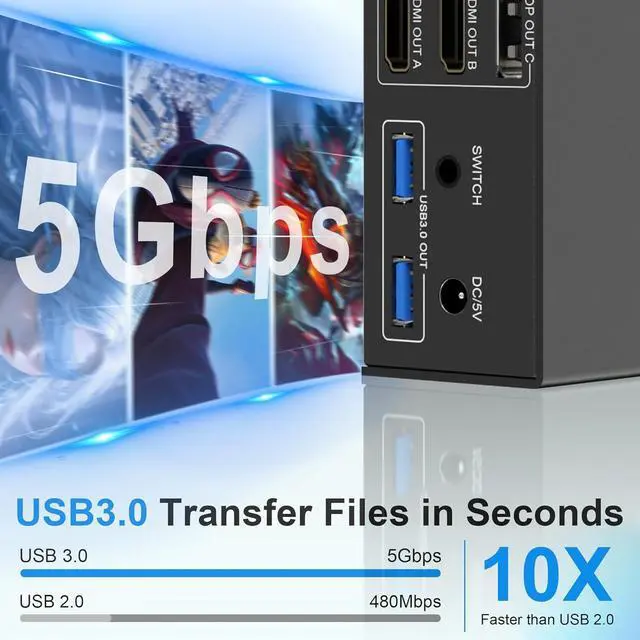

4. KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output
5. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS
6. The ports that need to plug in HDMI/DisplayPort/USB cables are all hidden behind the triple monitor KVM switch, so the desktop doesn't get cluttered, you can enjoy the clean work space.
Ultra HD 4K@60Hz Triple Monitor KVM Switch
- Confirms to HDMI 2.0 & DP 1.2 protocol, supports a maximum resolution of 4K@60Hz, and is compatible downwards.
- Only when both your computer Graphics card, monitor and cable support 4K@60Hz then you can get 4K@60Hz effect, so if you want the max resolution you have to check your devices first.

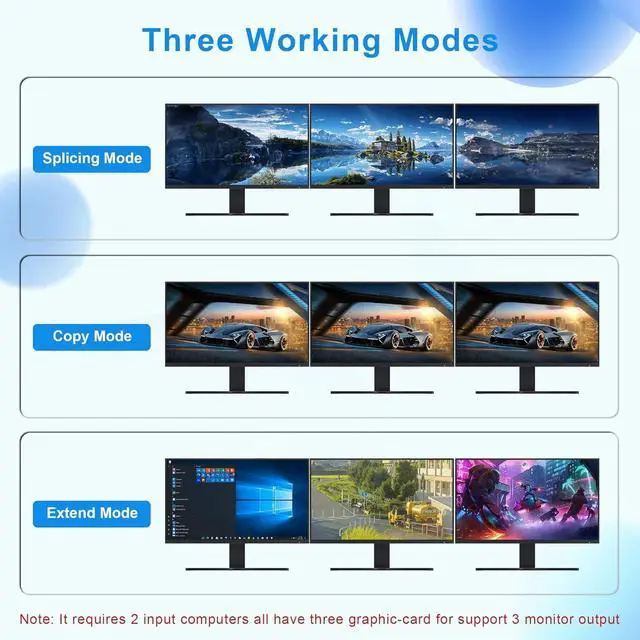

3 Display Modes
Extended Display
Mirrored Display
Spliced Display
1)Extended mode can output three different screens and mirror mode can output three identical screens. Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
2) The requirement for this KVM to achieve a triple-screen display is that each PC you connect to has the capability to support a triple-screen display. This has nothing to do with KVM.
Wired Remote Control
Supports wired remote switching for easy cable management, you can switch directly on the desktop, convenient for your life and work

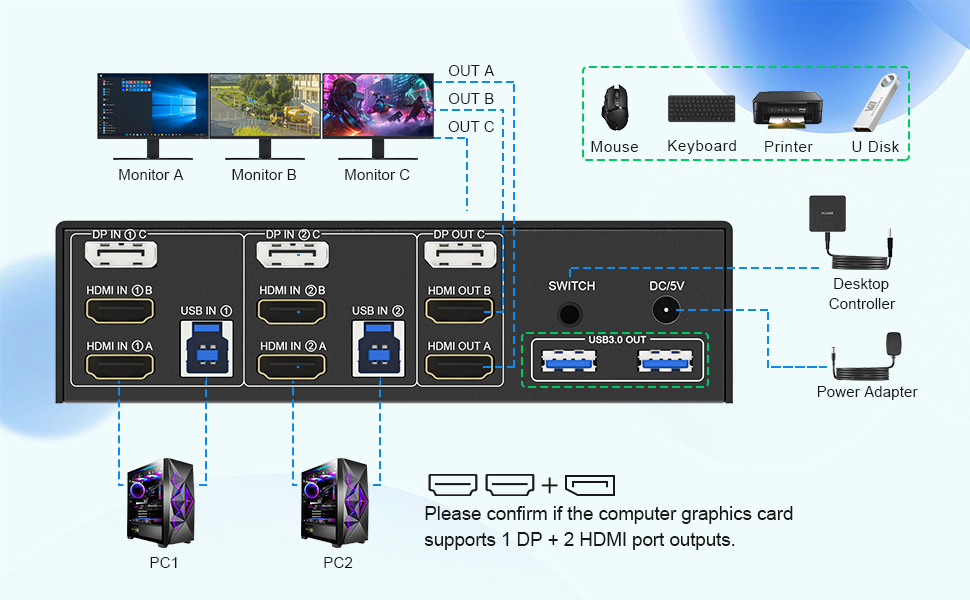

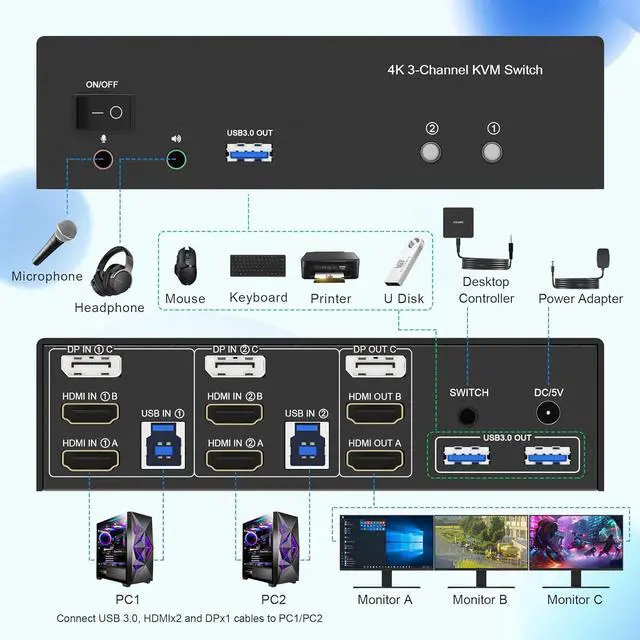

1. Insert the DC/5V adapter into the KVM ;
2. Plug the 2*HDMI cable and 1*DisplayPort cable into the KVM switch and monitor;(Output)
3. Plug the DisplayPort cable, HDMI cable, and USB cable into the KVM switch and your computer/laptop (HDMI and DP cables are not included)(Input)
HDMI IN 1A +HDMI IN 1B + DP IN 1C + USB IN 1=PC1
HDMI IN 2A + HDMI IN 2B + DP IN 2C + USB IN 2=PC2
Please check whether HDMI IN 1A, HDMI IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether HDMI IN 2A, HDMI IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported.
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 HDMI +1 DP+USB cable) connect to the KVM.
2. If the input USB3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.
3. Note: HDMI and DP cables are not included

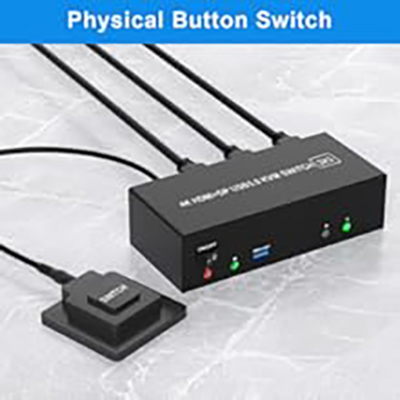

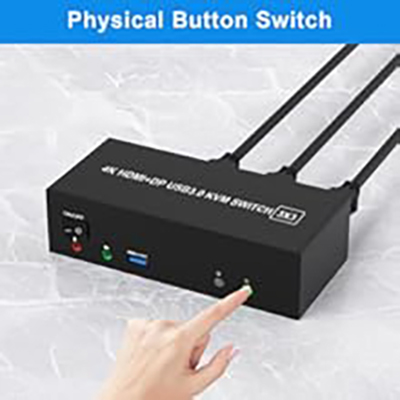

Switch by Panel button
- Push-button design allows for one-touch switching using a button on the KVM Switch box, eliminating the need to plug and unplug cables frequently, saving space and time.
Wired Remote Control
- Supports wired remote switching for easy cable management, you can switch directly on the desktop, convenient for your life and work

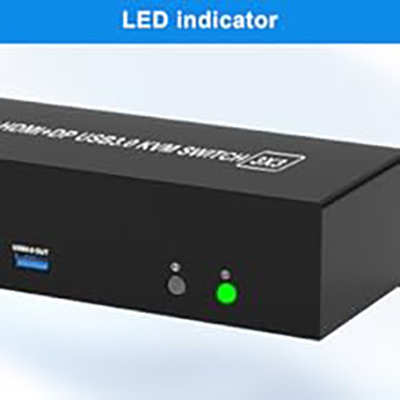

LED Indicator
- When switching to which PC, the LED will tell you whether PC1 or PC2 is active.

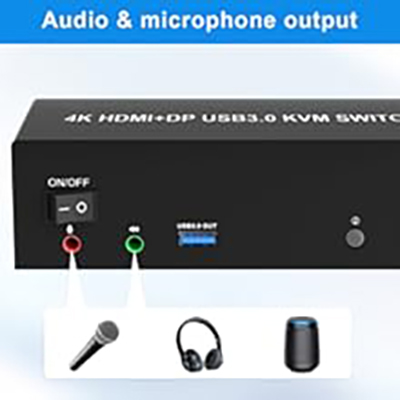

Audio and microphone output
- 3 monitors 2 computers KVM comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone
- 1x USB 3.0 Triple Monitor KVM Switch,
- 2x USB 3.0 Cables,
- 1x Power Adapter,
- 1x Wired Button Switch,
- 1x User's manual.
We offer 12 months warranty. If you have any questions about the product, please contact us.
